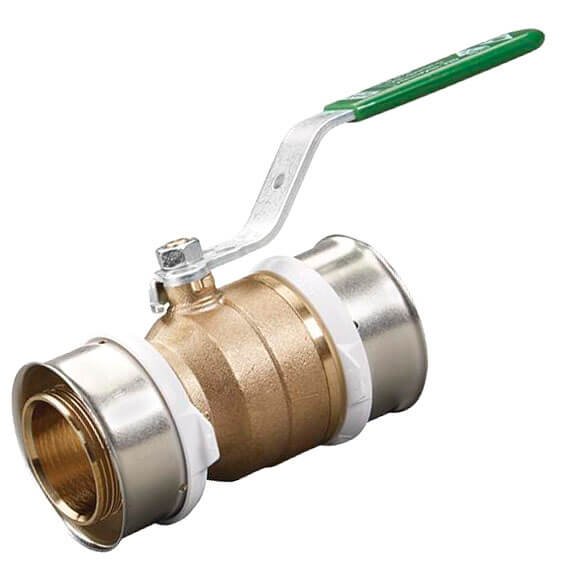

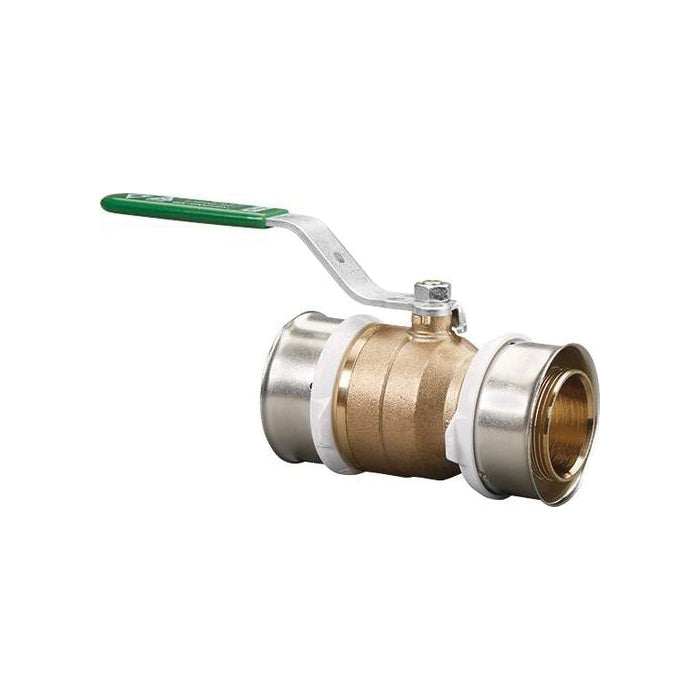

Viega 98203 PureFlow 2 in Press Ball Valve Replacement MPN

Product Description

The Viega 98203 is a pureflow 2-in nominal press ball valve, made with a bronze body and lead-free construction. This valve operates efficiently in potable water distribution systems using Viega PureFlow PEX and FostaPEX tubing. Ideal for hydronic heating and cooling applications, the valve features a stainless steel ball and EPDM stem seals for reliability.

• Nominal size of 2 inches
• Pressure rating of 160 psi
• Temperature rating between 0 to 180 degrees Fahrenheit

Product Highlights

Designed for high performance, this ball valve is suitable for various plumbing applications including residential fire sprinkler systems.

Product Information

Standard Information

• Brand: Viega
• MPN: 98203

Technical Specifications

• Actuator Type: Handle
• Ball Material: Stainless Steel
• Body Material: Bronze
• End Style: Press
• Inlet to Outlet Length: 4.57 inches
• Nominal Size: 2 inches
• Pressure Rating: 160 psi
• Softgoods Material: EPDM Stem Seal
• Temperature Rating: 0 to 180 degrees Fahrenheit
• Top to Inlet Center: 2.69 inches
• Trim Material: PTFE Seat/Brass Stem
• Domestic/Import: Import
