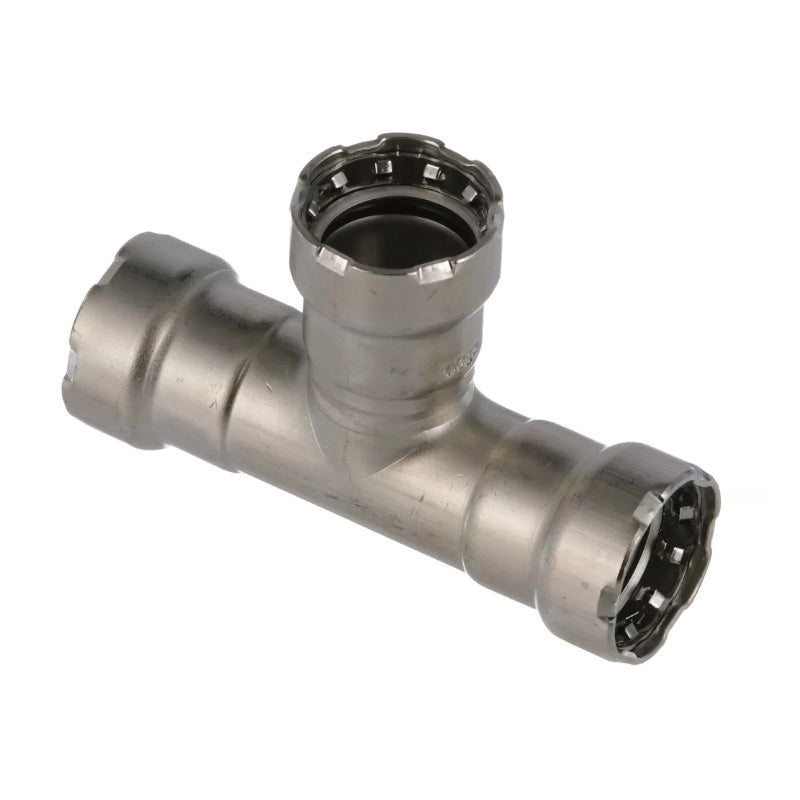

Viega 95865 MegaPress 304 FKM reducing tee 1-1/4 x 1-1/4 x 1 in (Model 4118)

Product Description

The Viega 95865 MegaPress 304 FKM reducing tee is a press-fit stainless steel fitting that provides two 1-1/4-inch ports and one 1-inch port for joining IPS ASTM A312 stainless steel pipe. It uses FKM sealing elements and a 420 stainless steel grip ring with a 304 stainless steel separator ring and incorporates Viega Smart Connect for press connection verification. The fitting is rated to 200 psi and a temperature range of 14 to 284 deg F.

• 304 stainless steel construction with FKM sealing element and 420 stainless steel grip ring
• Press connection with Viega Smart Connect feature for mechanical press-fit joining
• Port sizes: P1 = 1-1/4", P2 = 1-1/4", P3 = 1"; nominal size 1-1/4 x 1-1/4 x 1 in; rated 200 psi

Product Highlights

Press-fit reducing tee for stainless steel piping systems, model 4118, rated 200 psi and 14 to 284 deg F.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95865
• Country of Origin: Import

Technical Specifications

• Brand: Viega
• MPN: 95865
• Model: 4118
• Series: MegaPress 304 FKM
• Product Type: Reducing tee
• Material: 304 stainless steel
• Sealing Material: FKM
• Grip Ring Material: 420 stainless steel (grip ring); 304 stainless steel separator ring
• Connection Type: Press connection (Smart Connect)
• Configuration: P x P x P (reducing tee)
• Port Sizes: P1: 1-1/4"; P2: 1-1/4"; P3: 1"
• Nominal Size: 1-1/4 x 1-1/4 x 1 in
• Pressure Rating: 200 psi
• Temperature Rating: 14 to 284 deg F
• Compatible Pipe Schedule: SCH 5 to 40/STD for sizes 1/2 in to 2 in (system guidance)
• UPC: 691514958651
• Physical Dimensions (L x W x H): 6.54" x 3.83" x 2.21"
• Weight: 1.43 lb
• Country of Origin: Germany
