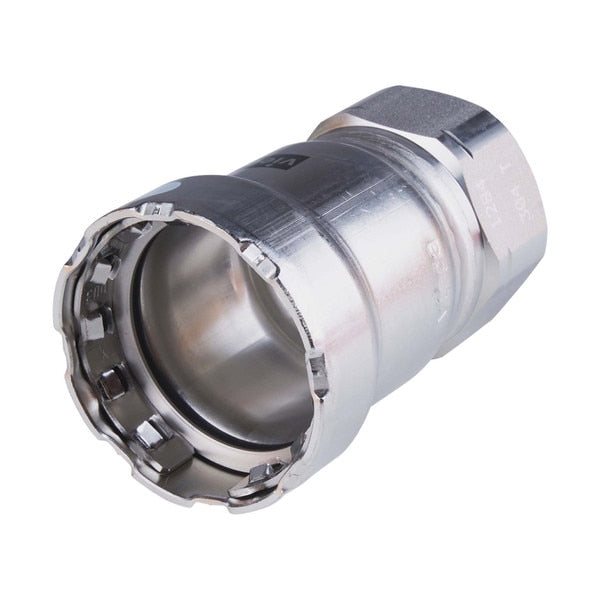

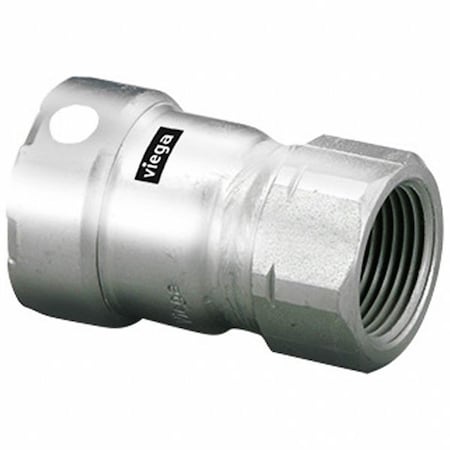

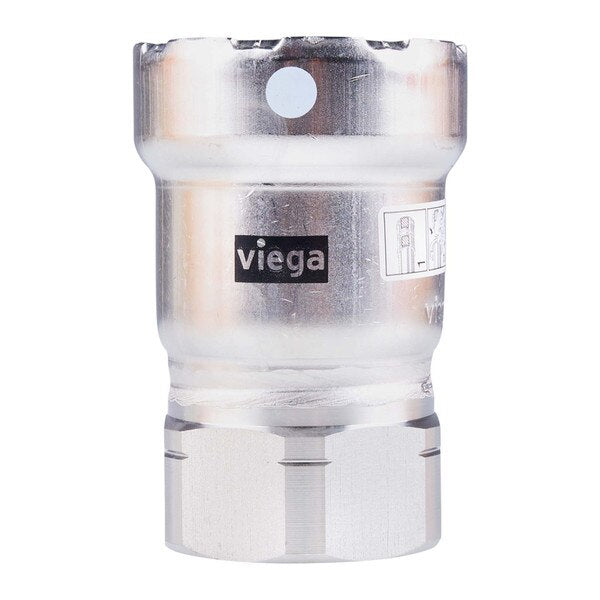

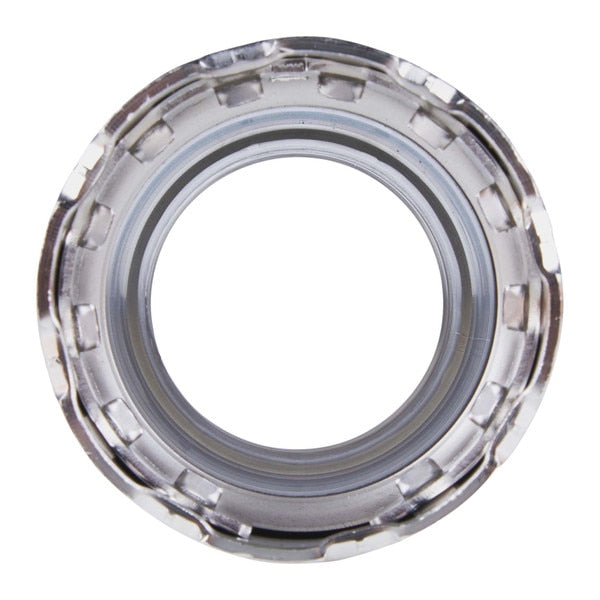

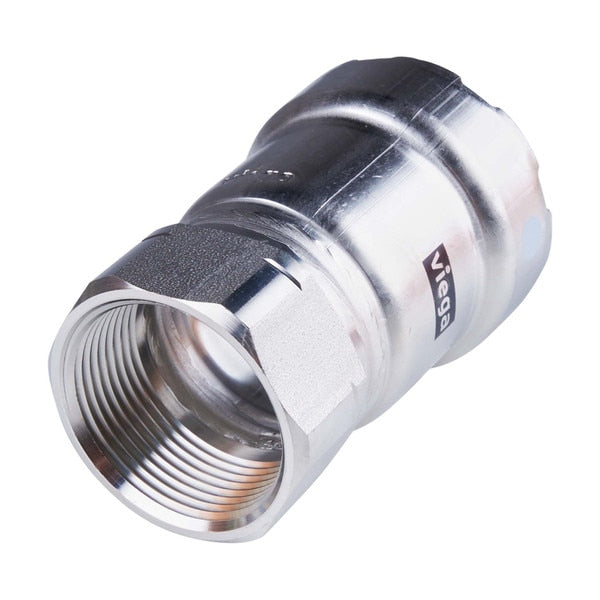

Viega 95835 MegaPress Adapter 1-1/4 inches x 1-1/4 inches

Product Description

The VIEGA 95835 MegaPress adapter is a 1-1/4" x 1-1/4" adapter made of 304 stainless steel. This adapter is designed for use with standard IPS ASTM A312 stainless steel pipe, making it ideal for industrial applications. It can be used to transport process water, diesel fuel, lube oil, ammonia, and low-pressure steam.

• Smart Connect feature
• Made of Stainless Steel 304
• Features press connection, female pipe thread

Product Highlights

The MegaPress adapter eliminates threading and welding and makes secure press connections in seconds.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95835
• Country of Origin: Germany

Technical Specifications

• Material Grade: 304
• Overall Length: 3 9/32 in
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Specific Fitting Shape: Adapter
• Fitting Side A Pipe Size: 1 1/4 in
• Fitting Side B Pipe Size: 1 1/4 in
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FPT
• Fitting Side A Tube Outer Diameter: 1 1/4 in
• Country of Origin (subject to change): Germany
• End Style: Press x FNPT
• Fitting/Connector Type: Adapter
• Material: 304 Stainless Steel
• Nominal Size: 1-1/4 In
• Pressure Rating: 200 psi
• Series: 4112
• Temperature Rating: 14 to 284 deg F
• Application: Chemical and Higher Temperature
