Product Description

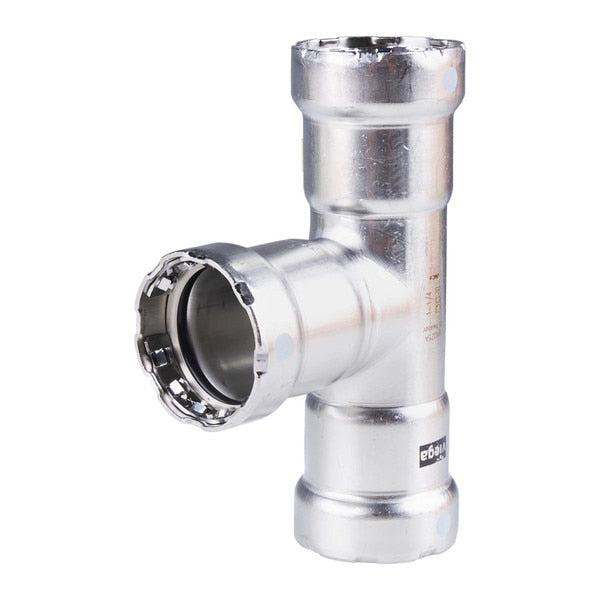

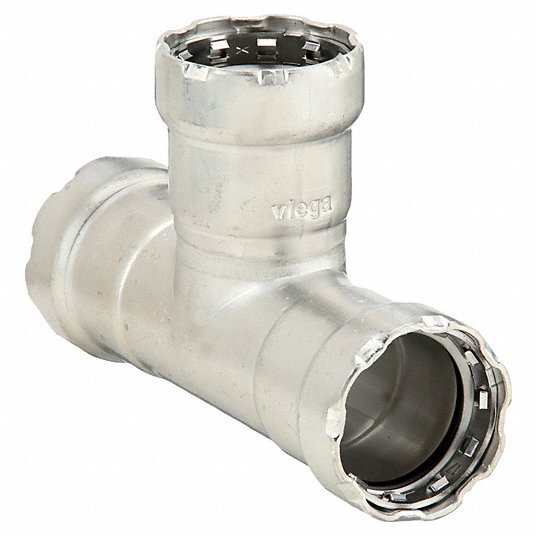

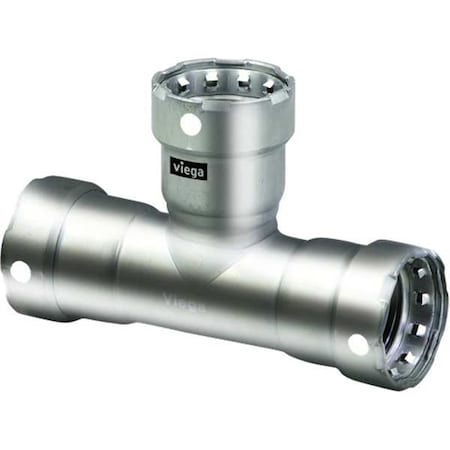

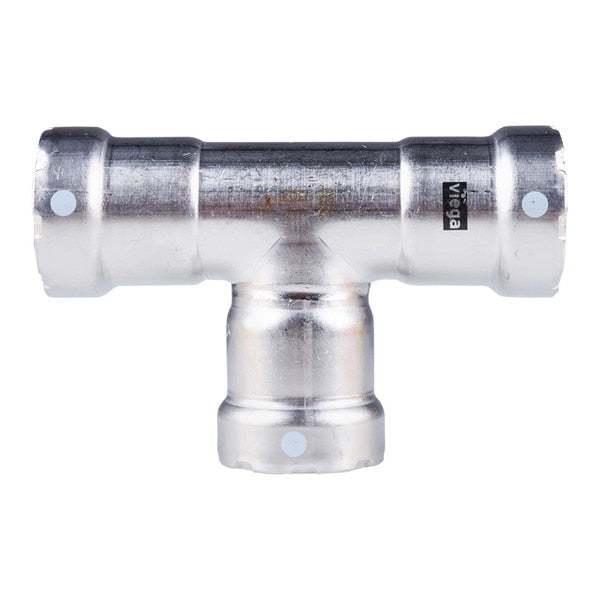

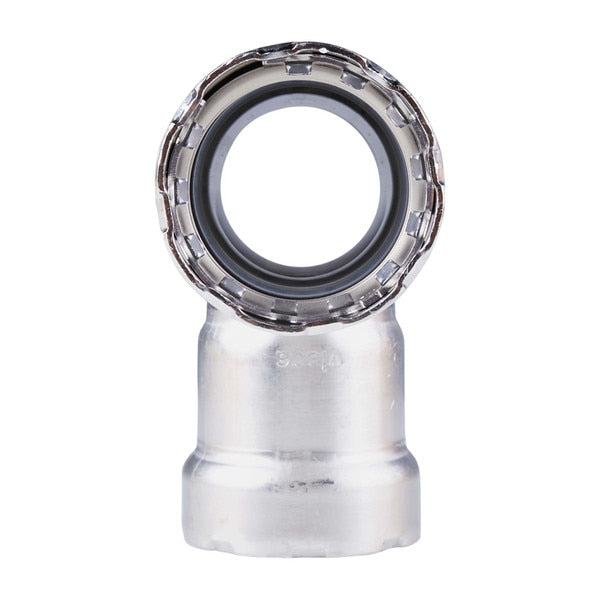

The Viega 95795 MegaPress Tee is designed for creating secure branch connections in stainless steel piping systems. Constructed from 304 stainless steel, this tee fitting is engineered for 1-1/4 inch pipe connections on all three ends. It is suitable for industrial wastewater and non-potable water applications.
- Enables quick, flameless, and secure press-fit connections.
- Offers exceptional corrosion resistance for harsh industrial and wastewater environments.
- Ensures a reliable, leak-proof connection across a wide temperature range.
Product Highlights
The Viega MegaPress Tee provides secure and efficient branching for stainless steel piping systems, ideal for industrial and non-potable water applications.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 95795
-
Country of Origin: Germany
Technical Specifications
-
Application: Non-Potable Water
-
Fitting Shape: Tee (Run x Run x Branch)
-
Fitting Material: 304 Stainless Steel
-
O-Ring Material: FKM
-
Pipe Size (All Ends): 1-1/4 in
-
Connection Type: Press-fit x Press-fit x Press-fit
-
Maximum Operating Pressure: 200 psi
-
Operating Temperature Range: 14 to 284 deg F
-
Overall Length: 6 17/32 in
-
Brand: VIEGA
-
Standards & Approvals: ABS; ANSI/CAN/UL 213; ASME B31; ASME B31.1; ASME B31.3; ASME B31.9; ASTM A312; ASTM A554; BV; CRN 13492.5 A/B/C; DNV-GL; FM Class 1920; IAPMO PS 117; IAPMO/UMC
-
Material Grade: 304
-
Minimum Operating Temperature: 14 Degrees F
-
Maximum Operating Temperature: 284 Degrees F
-
Fitting Side A Pipe Size: 1 1/4 in
-
Fitting Side B Pipe Size: 1 1/4 in
-
Fitting Side C Pipe Size: 1 1/4 in
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: Press-Fit
-
Fitting Side C Connection Type: Press-Fit
-
Country of Origin: Germany
-
End Style: Press
-
Series: 4118
-
Domestic Import: Import
-
Item [Specifications]: Tee
-
Standards [Specifications]: ABS Type Approval, ANSI/CAN/UL 213 (1/2" to 3" only), ASME B31.1, B31.3, B31.9, BV (Bureau Veritas), CRN 13492.5 A/B/C, DNV-GL, FM Class 1920 (1/2" to 2" only), IAPMO PS117, ICC-ES LC1002, Lloyd's Register, NFPA 13, 13D, 13R
-
Tube Size [Specifications]: 1 1/4 in x 1 1/4 in x 1 1/4 in
-
Compliance [Specifications]: ASME B31, ASTM A312, ASTM A554, IAPMO Uniform Mechanical Code (UMC), ICC International Mechanical Code (IMC), ICC International Residential Code (IRC), National Building Code of Canada (NBCC), National Plumbing Code of Canada (NPCC)
-
Temp. Range [Specifications]: 14 Degrees to 284 Degrees F
-
Max. Pressure [Specifications]: 200 psi
-
Stop and Shape [Specifications]: Tee
-
Connection Type [Specifications]: Press-Fit x Press-Fit x Press-Fit
-
Fitting Pipe Size [Specifications]: 1 1/4 in
-
End Connection Type [Specifications]: Press
-
Fitting Body Material [Specifications]: 304 Stainless Steel
-
Tube Fitting Material [Specifications]: 304 Stainless Steel
-
Specific Fitting Shape [Specifications]: Tee
-
Fitting Connection Type [Specifications]: Press x Press x Press
-
Pipe Size - Pipe Fitting [Specifications]: 1 1/4 in x 1 1/4 in x 1 1/4 in
-
Maximum Operating Pressure [Specifications]: 200 psi
-
Nominal Size: 1-1/4 In
-
For Media Type: Non-Potable Water
