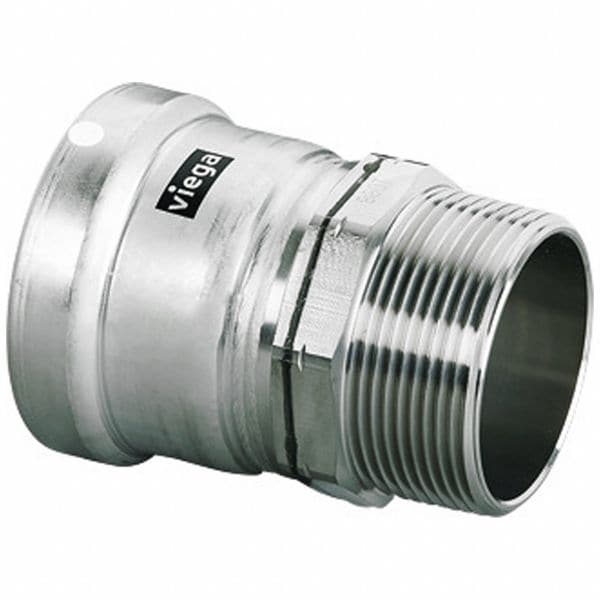

Viega 95735 MegaPress Adapter 4 inches x 4 inches

Product Description

The VIEGA 95735 MegaPress Adapter is a 4" x 4" fitting constructed from 304 stainless steel, designed for robust piping systems. This adapter facilitates secure press connections, eliminating the need for welding or threading. It is suitable for commercial and industrial applications, handling various fluids like process water, diesel fuel, and chemicals, with a maximum operating pressure of 200 psi and a temperature range of 0 to 250 degrees F.

• Constructed from durable 304 stainless steel for long-lasting performance in demanding environments.
• Features a MegaPress adapter connection type, simplifying installation and reducing labor time.
• Designed for commercial and industrial use, compatible with various fluids and gases including chemicals.

Product Highlights

Utilizes an FKM sealing element and Smart Connect technology for reliable, leak-free connections.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95735
• Country of Origin: Germany

Technical Specifications

• SKU: V-MP304FMA4
• MPN: 95735
• Reference ID: VIEGA95735
• Material: 304 stainless steel
• Size: 4" x 4"
• Connection Type: MegaPress adapter
• Includes: FKM Sealing Element
• End Style: Press x MNPT
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Nominal Size: 4 in
• Application: Commercial and Industrial
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• O-Ring Material: FKM
• Fitting Side A Pipe Size: 4 in
• Fitting Side B Pipe Size: 4 in
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: MPT
• Fitting Side A Tube Outer Diameter: 4 in
• Compatible Tube Hardness: Schedule 5 to Schedule 40
• Compatible Tool Brand: Milwaukee; Ridgid
• Fitting Shape: Straight
• Compatible Tube Material: Stainless Steel
• Overall Length: 6-7/32 in
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Not Included
• Color: Silver
• For Media Type: Chemical
• Dimension A: 3.03 in
• Category: MegaPress XL Press Fittings
• Series: 4111XL
