Viega 95720 304 mpss flange flange pxbp 2-1/2x4 bpd 5-1/2

Product Description

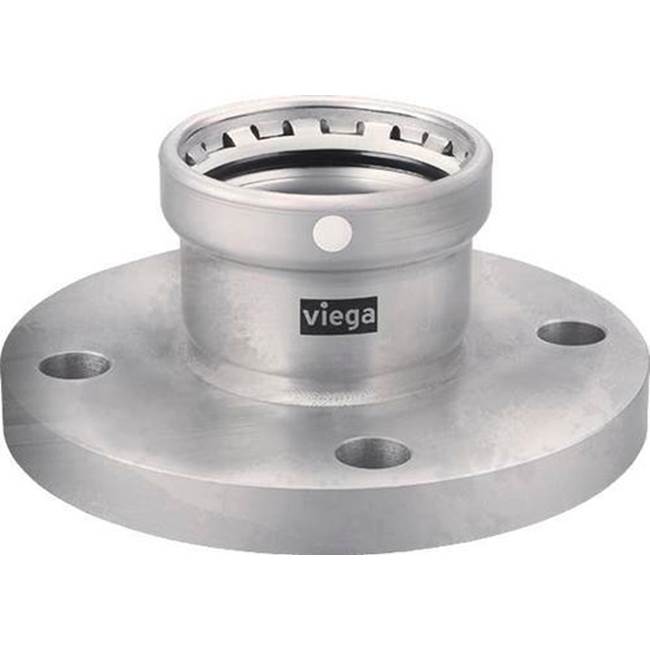

The VIEGA 95720 is a 2-1/2X4 304 MPSS Flange Flange Pxbp with a Bolt Pattern Diameter of 5-1/2. This 304 stainless steel flange features a 2-1/2 inch size and a 4-bolt pattern. It is designed for press-fit connections in commercial and industrial applications, including process water, diesel fuel, and low-pressure steam systems.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds.
• Minimizes system downtime by allowing for wet connection.
• Eliminates welding, grinding, and threading, reducing hot work permits.

Product Highlights

This 304 stainless steel flange offers quick, reliable press connections for various industrial and commercial fluid transport systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95720
• Country of Origin: Germany

Technical Specifications

• MPN: 95720
• Brand: VIEGA
• Height: 3.366
• Length: 7.126
• Width: 7.126
• Type: Flange
• Material: 304 Stainless Steel
• Size: 2-1/2"
• Bolt Pattern: 4
• Bolt Pattern Diameter: 5-1/2 in
• Pressure Rating: 200 psi
• Includes: FKM Sealing Element
• Temperature Rating: 0 to 250 deg F
• Connection Type: Press-Fit
• Application: Commercial and Industrial
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Nominal Size: 2-1/2 x 4 In
• Schedule Rating: SCH 10 to SCH 40/STD
• Series: 4159XL
• Thickness: 0.89 in
• O-Ring Material: FKM
• Compatible Tube Material: Stainless Steel
• Compatible Tool Brand: Milwaukee; Ridgid
• Overall Length: 3-9/32 in
• Flange Outside Diameter: 7.09 in
• Flange Thickness: 7/8 in
• For Media Type: Chemicals
• Weight: 8.28 lbs.
• Collection: MegaPress 304 FKM
