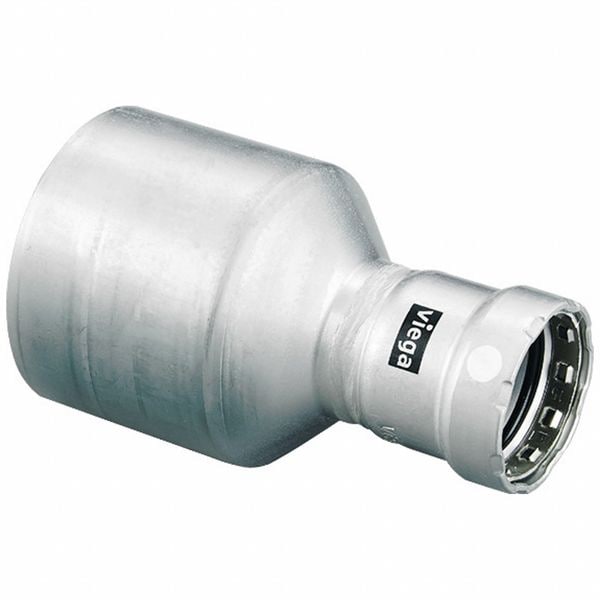

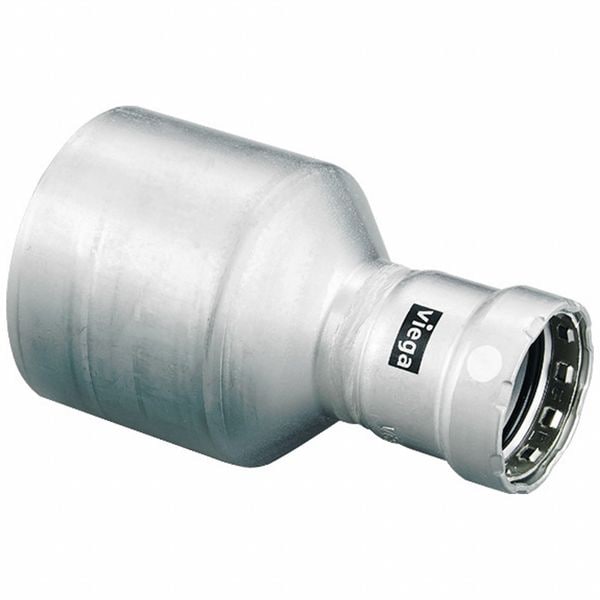

Viega 95695 4 inches x 2-1/2 inches MegaPress Reducer 4115.1XL

Product Description

The VIEGA 95695 is a 4" x 2-1/2" MegaPress reducer, constructed from 304 stainless steel. This fitting is designed for use with the Viega MegaPress system, reducing pipe size from 4 inches to 2 1/2 inches. It features FTG (IPS) and Press connections, suitable for commercial and industrial applications, and can withstand pressures up to 200 psi.

• Compatible with Viega MegaPress system
• Constructed from durable 304 stainless steel
• Reduces pipe size from 4 inches to 2 1/2 inches

Product Highlights

This 304 stainless steel reducer features FTG (IPS) and Press connections, ensuring reliable pipe size reduction within the Viega MegaPress system for commercial and industrial use.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95695
• Country of Origin: Germany

Technical Specifications

• MPN: 95695
• Brand: Viega
• Type: Reducer
• System: MegaPress
• Material: 304 Stainless Steel
• Nominal Size: 4 x 2-1/2 in
• Connection Type 1: FTG (IPS)
• Connection Size 1: 4
• Connection Type 2: Press
• Connection Size 2: 2 1/2
• Product Length: 4.83 in
• Includes: FKM Sealing Element
• Temperature Rating: 0 to 250 deg F
• End Style: FTG x Press
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9, ANSI/CAN/UL 213, ASME B31, ASME B31.9BV, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RFM Class 1920
• Model: 4115.1XL
• Category: MegaPress XL Press Fittings
• O-Ring Material: FKM
• Includes Pre-Applied Thread Sealant: Pre-Applied Thread Sealant Not Included
• Compatible Tube Material: Stainless Steel
• Color: Silver
• Compatible Tool Brand: Milwaukee, Ridgid
• Compatible Tube Hardness: Schedule 5 to Schedule 40
• For Media Type: Chemicals
• Finish: No Finish Group
• Collection: MegaPress 304 FKM
