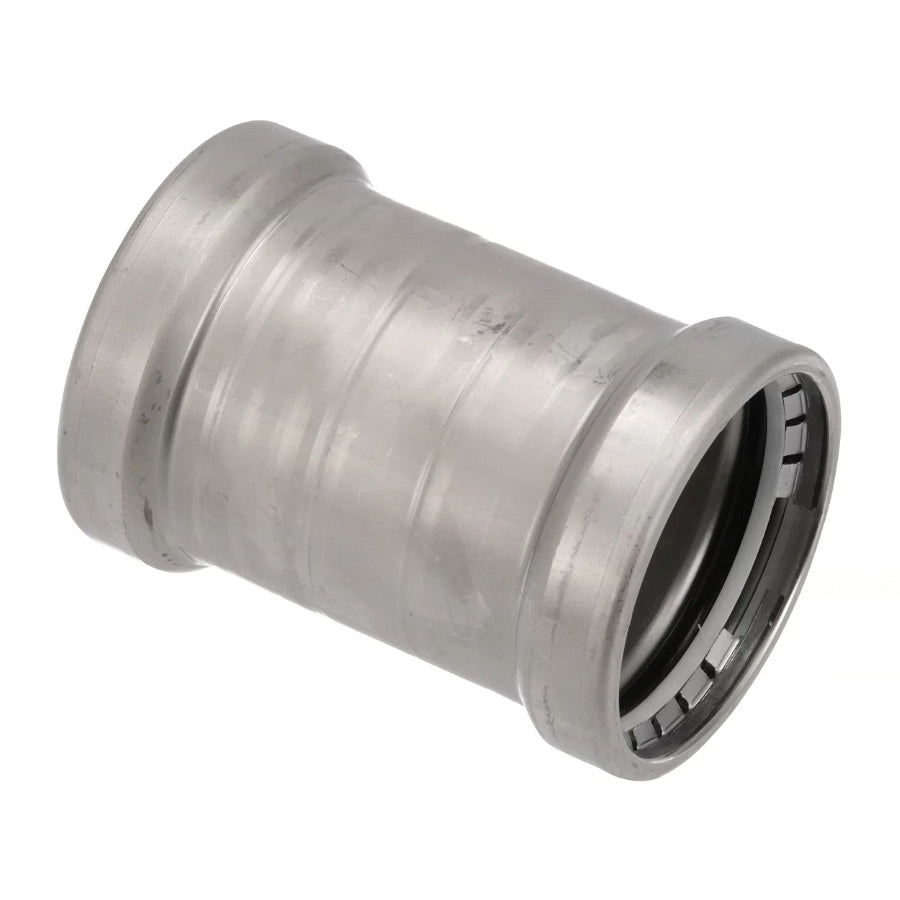

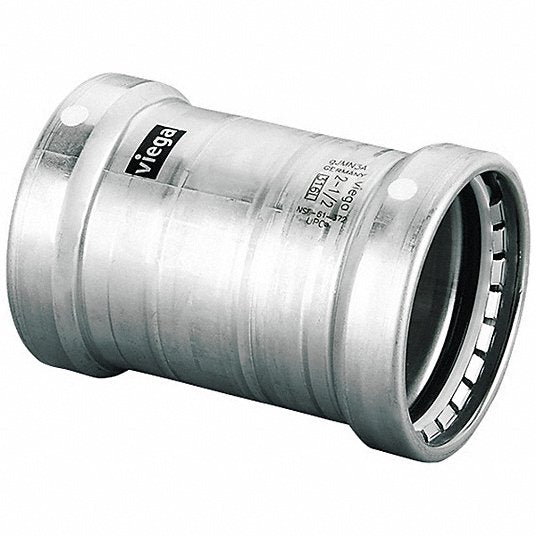

Viega 95660 MegaPress coupling 2-1/2 inches x 2-1/2 inches

Product Description

The Viega 95660 MegaPress coupling is a 2-1/2" x 2-1/2" 304 stainless steel fitting designed for press-fit connections. It is suitable for chemical and higher temperature applications, forming a complete press system with Schedule 10 to Schedule 40 stainless steel pipe. This coupling utilizes an FKM sealing element for reliable, leak-free connections, capable of handling process water, diesel fuel, lube oil, ammonia, and low-pressure steam. It operates within a pressure rating of 200 psi and a temperature range of 0 to 250 degrees F.

• Patented Viega Smart Connect technology ensures secure connections in less than 7 seconds.
• Constructed from 304 stainless steel with an FKM sealing element for durability and leak-free performance.
• Designed for press-fit installation, eliminating the need for welding or threading.

Product Highlights

Features Smart Connect technology and a no-stop design for efficient, secure press-fit installations in various industrial and commercial fluid transfer applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95660
• Country of Origin: Germany

Technical Specifications

• Brand: Viega
• MPN: 95660
• SKU: V-MP304FCPS2H
• Reference ID: VIEGA95660
• Material: 304 Stainless Steel
• Size: 2-1/2" x 2-1/2"
• P1: 2-1/2
• P2: 2-1/2
• Pressure Rating: 200 psi
• End Style: Press
• Temperature Rating: 0 to 250 deg F
• Fitting Type: Coupler
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9, ABS Type approval ASME B31.1, ANSI/CAN/UL 213, ASME B31, ASME B31.3, ASME B31.9BV, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RFM Class 1920
• Item Type: Coupling
• Application: Chemical and Higher Temperature
• Material Grade: 304
• Overall Length: 4 29/32 in
• O-Ring Material: FKM
• Fitting Shape: Coupling
• Fitting Side A Pipe Size: 2-1/2 in
• Fitting Side B Pipe Size: 2-1/2 in
• Compatible Copper Tube Type: Not Applicable
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Tube Outer Diameter: 2-1/2 in
• Fitting Side B Tube Outer Diameter: 2-1/2 in
• Country of Origin: Germany
• Nominal Size: 2-1/2 in
• Includes: FKM Sealing Element
• Domestic/Import: Import
• Model: 4115.5XL
• Type: Coupling No Stop, P x P
• System: MegaPress 304 FKM
• California Prop 65 Warning: Yes
• Product Type: Press-Fit Tube Fitting
• Battery Included: No
• Compatible Tube Hardness: Schedule 5 to Schedule 40
• Compatible Tool Brand: Milwaukee, Ridgid
• Pre-Applied Thread Sealant Included: No
• Color: Silver
• Media Type: Chemicals
• OPV Part Number: V304MPCPlNS25
• Category: No Stop
