Viega 95625 MegaPress Tee 3 inches x 3 inches x 3/4 inches

Product Description

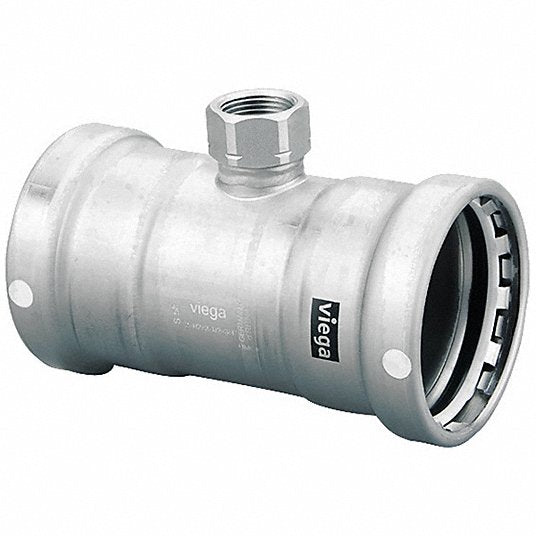

The Viega 95625 MegaPress tee is a 3" x 3" x 3/4" fitting constructed from 304 stainless steel, designed for robust commercial and industrial applications. It features 3-inch press connections for P1 and P2, and a 3/4-inch female pipe thread (FPT) connection. This tee is suitable for transporting process water, diesel fuel, lube oil, ammonia, and low-pressure steam, with a pressure rating of 200 psi and a temperature range of 0 to 250 degrees F. It incorporates an FKM sealing element for reliable, leak-free connections.

• MegaPress tee design for secure connections
• Constructed from durable 304 stainless steel
• Patented Viega Smart Connect makes secure connections in less than 7 seconds

Product Highlights

Features Smart Connect technology for fast, secure, and leak-free installations without welding or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95625
• Country of Origin: Germany

Technical Specifications

• MPN: 95625
• Brand: Viega
• Material: 304 Stainless Steel
• Type: MegaPress Tee
• Nominal Size: 3 x 3 x 3/4 inch
• Includes: FKM Sealing Element
• Fitting Type: Tee
• End Style: Press x Press x FNPT
• Pressure Rating: 200 psi
• Operating Temperature Range: 14 to 284 Degrees F
• Application: Commercial and Industrial, Hydronic
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1, ASME B31.3, ASME B31.9, ANSI/CAN/UL 213, ASTM F3226, NFPA 13, NFPA 13D, NFPA 13R
• Color: Silver
• Vacuum Rating: Maximum 29.2 inHG @ 160 Degrees F
• Material Grade: 304
• Overall Length: 3 3/4 inch
• O-Ring Material: FKM
• Includes Center Stop: Rolled Center Stop
• Resistance Properties: Ozone, Weathering, Oils, Petroleum-based Additives, High Temperature-Resistant, Oil-Resistant, Weather-Resistant
• Required Tool Jaw Size: 4 inch
• Fitting Shape: Tee with Rolled Center Stop (Run x Run x Branch)
• Fitting Side A Pipe Size: 3 inch
• Fitting Side B Pipe Size: 3 inch
• Fitting Side C Pipe Size: 3/4 inch
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: FNPT
• Model: 4117.2XL
• Category: MegaPress XL Press Fittings
• For Media Type: Air, Gases, Non-Potable Water, Steam, Process Water, Diesel Fuel, Lube Oil, Ammonia, Low Pressure Steam
• Item Type: Crimp Tee Fitting
