Viega 95620 MegaPress tee 2-1/2 inches x 2-1/2 inches x 3/4 inches

Product Description

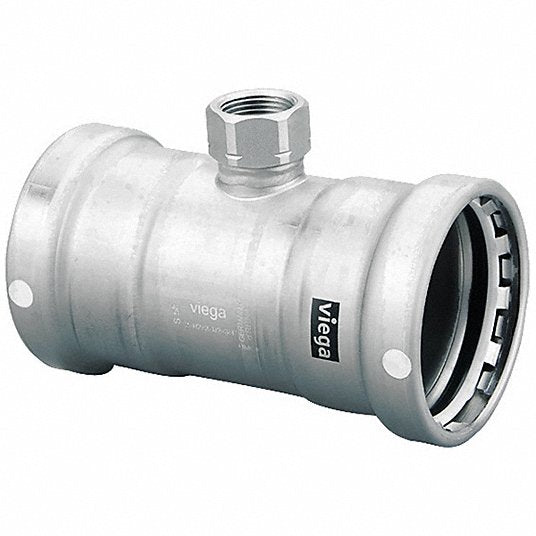

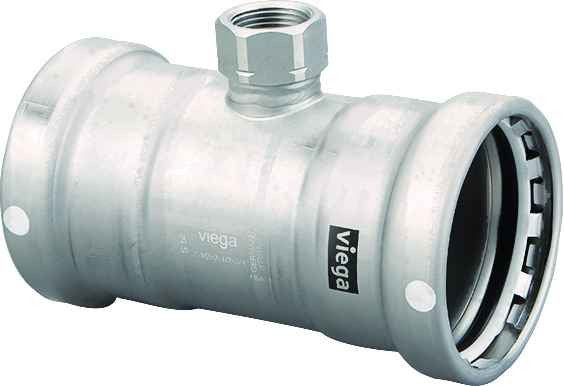

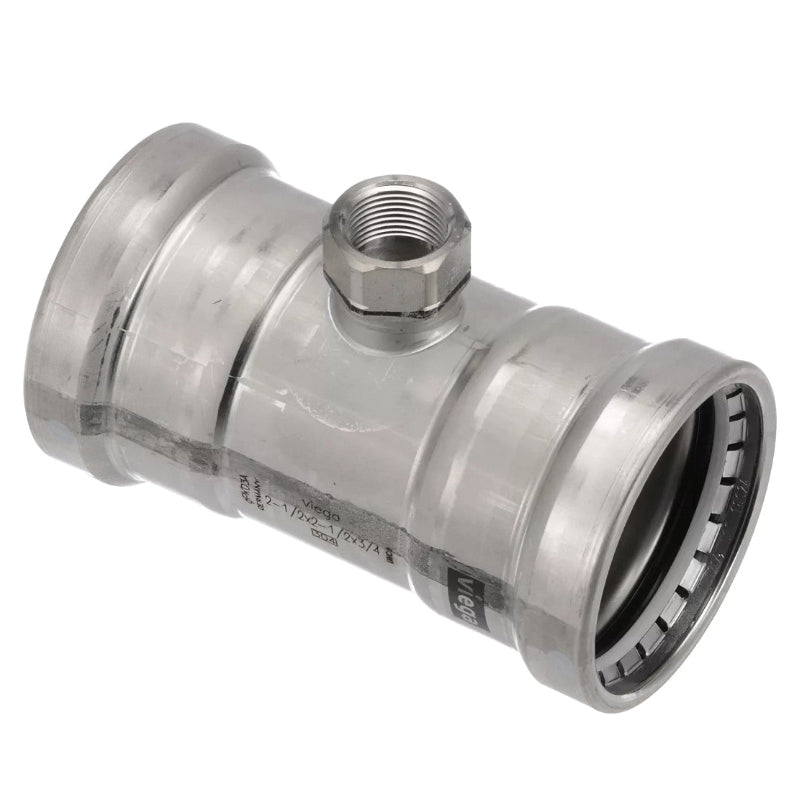

The Viega 95620 MegaPress tee is a 2-1/2" x 2-1/2" x 3/4" fitting constructed from 304 stainless steel. This tee is designed for press connections, featuring P1: 2-1/2", P2: 2-1/2", and FPT: 3/4" connections. It is suitable for commercial and industrial applications, forming a complete press system with stainless steel pipe. The fitting utilizes an FKM sealing element for reliable, leak-free connections, capable of handling process water, diesel fuel, lube oil, ammonia, and low pressure steam.

• MegaPress connection for secure and efficient installation.
• Constructed from 304 stainless steel for durability and resistance to harsh environments.
• Suitable for various applications including process water, diesel fuel, lube oil, ammonia, and low pressure steam.

Product Highlights

Features Smart Connect technology for quick, reliable, and leak-free press connections in commercial and industrial settings.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95620
• Country of Origin: Germany

Technical Specifications

• MPN: 95620
• Brand: VIEGA
• Type: MegaPress Tee
• Material: 304 Stainless Steel
• Size: 2-1/2" x 2-1/2" x 3/4"
• Connection P1: 2-1/2"
• Connection P2: 2-1/2"
• Connection FPT: 3/4"
• Sealing Element: FKM
• End Style: Press x Press x FNPT
• Maximum Operating Pressure: 200 psi
• Operating Temperature Range: 14 to 284 deg F
• Application: Commercial and Industrial, Hydronic, Air, Non-Potable Water, Steam, Gases
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9, ANSI/CAN/UL 213, ASTM F3226, IAPMO Z1117, NFPA 13, NFPA 13D, NFPA 13R
• Color: Silver
• Vacuum Rating: Maximum 29.2 inHG @ 160 Degrees F; Minimum 750 micronmHG
• Overall Length: 3-5/32 in
• Includes Center Stop: Rolled Center Stop
• Resistance Properties: Ozone, Weathering, Oils, Petroleum-based Additives, High Temperatures
• Required Tool Jaw Size: 3 in
• Specific Fitting Shape: Tee with Rolled Center Stop (Run x Run x Branch)
• Connection Type P1: Press-Fit
• Connection Type P2: Press-Fit
• Connection Type FPT: FNPT
• Model Number: 4117.2XL
• SKU: V95620
• Length: 6.299"
• Height: 3.543"
• Width: 4.331"
