Viega 95530 2-1/2 inch 304 MPSS PXP 45 degree Ell PXP

Brand: VIEGA
SKU: 95530
Availability: In Stock

Ships same day if ordered by 12 pm
$381.61
$381.61
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

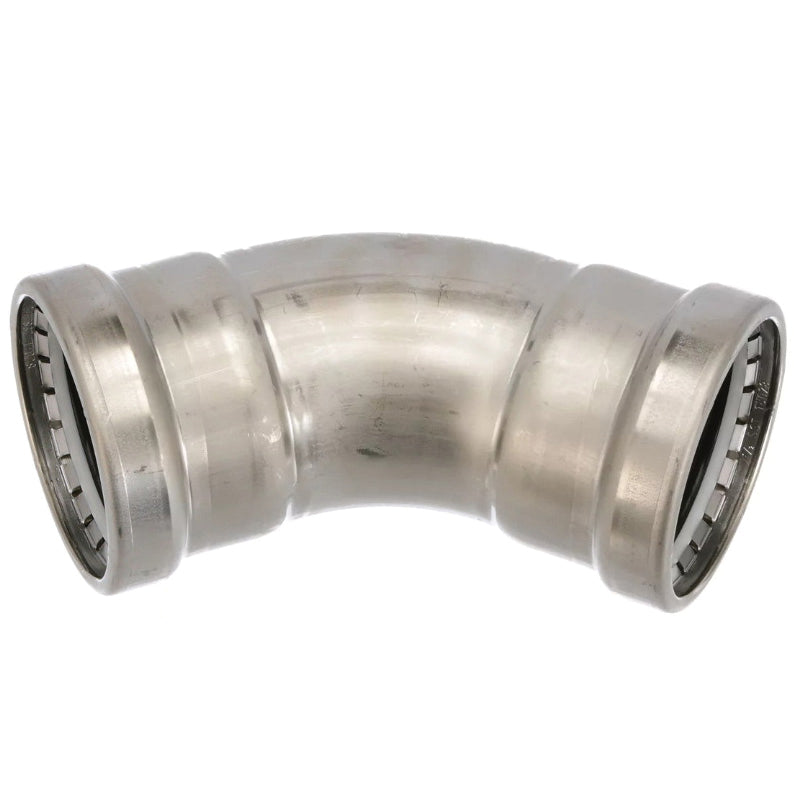

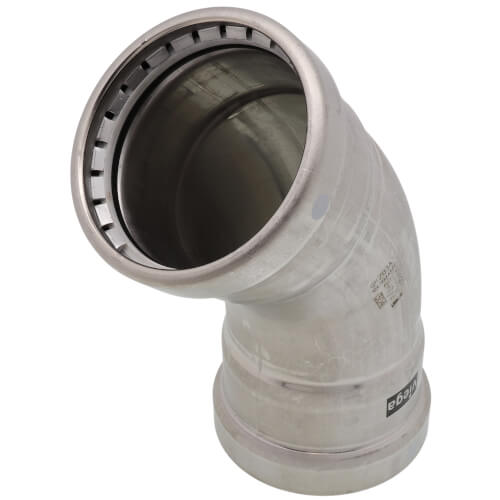

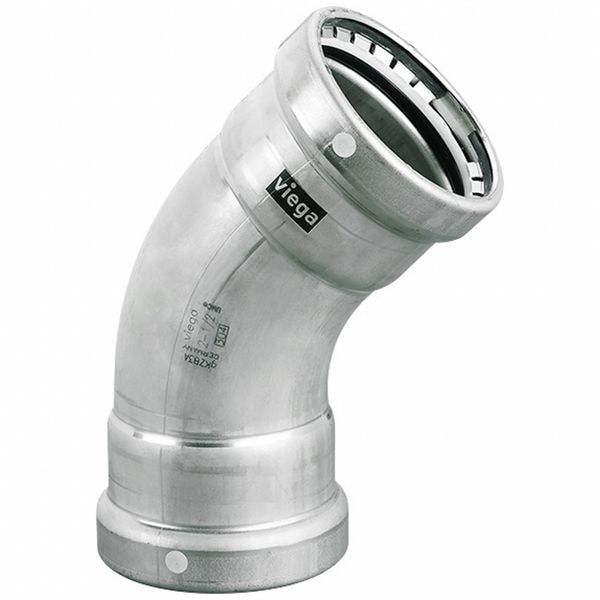

The VIEGA 95530 MegaPress 45-degree elbow is a 2-1/2 inch 304 stainless steel fitting designed for commercial and industrial applications. It forms a complete press system with Schedule 10 to Schedule 40 stainless steel pipe. This fitting is suitable for transporting process water, diesel fuel, lube oil, ammonia, and low-pressure steam, offering a reliable, leak-free connection with its FKM sealing element. It operates within 0 to 250 degrees F and handles up to 200 psi.

  • 304 stainless steel construction for durability and corrosion resistance.
  • Utilizes FKM sealing element for reliable, leak-free press connections.
  • Smart Connect technology ensures secure connections and aids in identifying unpressed fittings.

Product Highlights

Designed for commercial and industrial use, this 45-degree elbow offers fast, flameless installation and is suitable for various fluid and gas applications.

Product Information

Standard Information

  • Brand: VIEGA
  • Manufacturer Part Number: 95530
  • Country of Origin: Germany
Technical Specifications
Brand
VIEGA
MPN
95530
Port 1 Size
2-1/2 inch
Port 2 Size
2-1/2 inch
Nominal Size
2-1/2 inch
Fitting Type
45 Degree Elbow
Connection System
MegaPress
Material
304 Stainless Steel
Angle
45 Degree
Operating Temperature
0 to 250 Degrees F
Maximum Operating Pressure
200 psi
End Style
Press
Includes
FKM Sealing Element
Application
Commercial and Industrial, Chemical
Standards
ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9, ABS Type approval ASME B31.1, ANSI/CAN/UL 213, ASME B31, ASME B31.3, ASME B31.9BV, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RFM Class 1920
Compatible Tube Hardness
Schedule 5 to Schedule 40
Compatible Tool Brand
Milwaukee, Ridgid
O-Ring Material
FKM
Compatible Tube Material
Stainless Steel
Fitting Side 1 Connection Type
Press-fit
Fitting Side B Connection Type
Press-fit
Port 2 Outer Diameter
2-1/2 inch
Overall Length
3-29/32 inch
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Series
4126XL
