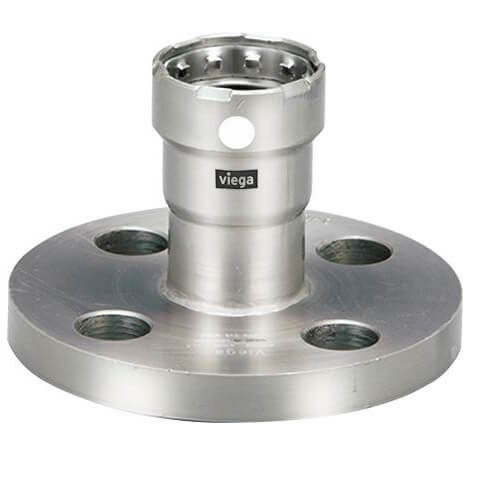

Viega 95455 1-1/2 MegaPress 304 Stainless Steel Flange 4 Bolt Pattern

Product Description

The Viega MegaPress 95455 is a 1-1/2 inch nominal size flange designed for press connections. It has a pressure rating of two hundred psi and operates in temperatures ranging from zero to two hundred fifty degrees Fahrenheit. This flange is made from 304 stainless steel and has dimensions of four point ninety-two inches in diameter and three point forty-four inches in length. It is ideal for commercial and industrial applications where reliable connections are essential.

• Pressure rating of two hundred psi
• Temperature rating of zero to two hundred fifty degrees Fahrenheit
• Constructed from durable 304 stainless steel

Product Highlights

The Viega MegaPress system uses an FKM sealing element for a secure, leak-free connection.

Product Information

Standard Information

• Brand: Viega
• MPN: 95455

Technical Specifications

• Nominal Size: 1-1/2 inches
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 degrees Fahrenheit
• Dimensions: 4.92 inches diameter x 3.44 inches length
• Material: 304 Stainless Steel
• End Style: Press
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
