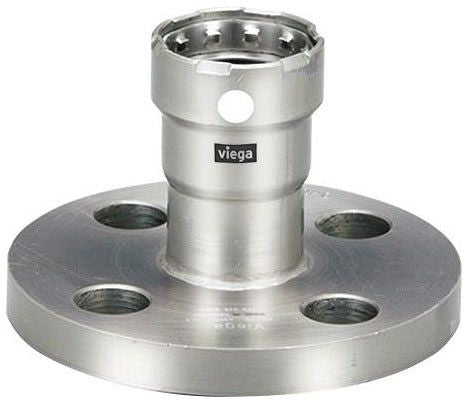

Viega 95445 Megapress 304SS Press X Ansi Rf Flange 3/4 in

Product Description

The VIEGA 95445 is a 3/4 inch MegaPress 304 stainless steel press x 150 ANSI raised-face flange fitting designed for use in professional piping installations. This fitting connects a MegaPress press-style end to a standard 150 ANSI RF flanged connection, allowing integration of press-fit systems with flanged equipment and valves. The FKM sealing element provides broad chemical and temperature resistance, making the fitting suitable for demanding mechanical and process piping applications. Licensed plumbers and pipefitters install this fitting using a compatible pressing tool approved for MegaPress stainless connections.

The 95445 is intended for commercial and industrial piping systems where MegaPress 4159 stainless press fittings are specified. Typical applications include mechanical rooms, process piping, and hydronic systems requiring a transition from press-style pipe connections to flanged equipment such as pumps, valves, or heat exchangers. The 150 ANSI raised-face flange end conforms to standard ANSI flanged connection dimensions, simplifying integration with existing flanged components.

Key Features

• 304 stainless steel construction for corrosion resistance in demanding piping environments
• MegaPress press-fit end for tool-based, flame-free connection to 3/4 inch press-fit pipe
• 150 ANSI raised-face flange end for direct connection to standard flanged components
• FKM sealing element provides wide-ranging chemical and temperature resistance
• Part of the VIEGA MegaPress 4159 stainless fitting system

Compatibility

Designed for use with the VIEGA MegaPress 4159 stainless steel press system on 3/4 inch pipe, and compatible with standard 150 ANSI raised-face flanged connections.

Installation Notes

Installation must be performed by a licensed plumber or pipefitter using a pressing tool rated and approved for VIEGA MegaPress stainless steel fittings. Shut off and depressurize the system before beginning work. Ensure pipe ends are clean, deburred, and properly inserted to the full depth of the press socket before actuating the tool. Flange bolting should follow applicable ANSI and plumbing or mechanical code requirements for the service conditions.

Technical Specifications

• Fitting Material: 304 Stainless Steel
• Fitting Size: 3/4 inches
• Connection Type: MegaPress Press x 150 ANSI Raised-Face Flange
• Seal Material: FKM
• Flange Rating: 150 ANSI RF
• Series: MegaPress 4159

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95445
