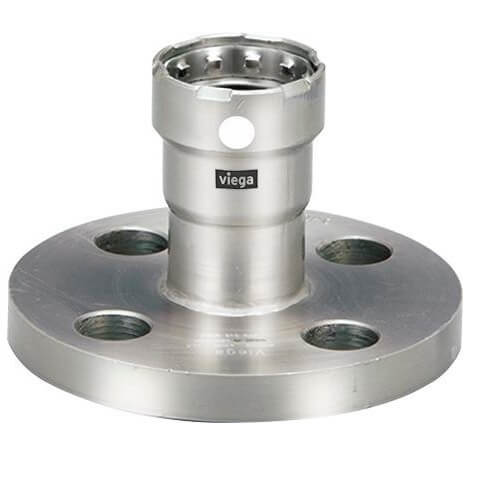

Viega 95440 MegaPress 304 Stainless Steel Flange 1/2 inches 4 Bolt Pattern

Product Description

The VIEGA 95440 MegaPress flange is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection. It can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, and low-pressure steam.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• No welding, grinding, or heavy equipment needed

Product Highlights

The Viega MegaPress system eliminates threading and welding, and is compatible with existing press tools. It is engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95440
• Country of Origin: Import

Technical Specifications

• Pressure Rating: 200 psi
• Fitting/Connector Type: Flange
• Temperature Rating: 0 to 250 deg F
• Domestic/Import: Import
• Nominal Size: 1/2 in
• Includes: FKM Sealing Element
• End Style: Press
• Material: 304 Stainless Steel
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Brand: Viega
• MPN: 95440
• Tube Fitting Material: 304 Stainless Steel
• Model: Flange
• Fitting Connection Type: Press
• Tube Size: 1/2"
• Pipe Size-Pipe Fitting: 1/2"
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Pipe Fitting Connection: Press
• Max Pressure: 200 psi
• Temp Range: 0 Degrees to 250 Degress F
• Unit Quantity: 1
• Unit Type: Unit
