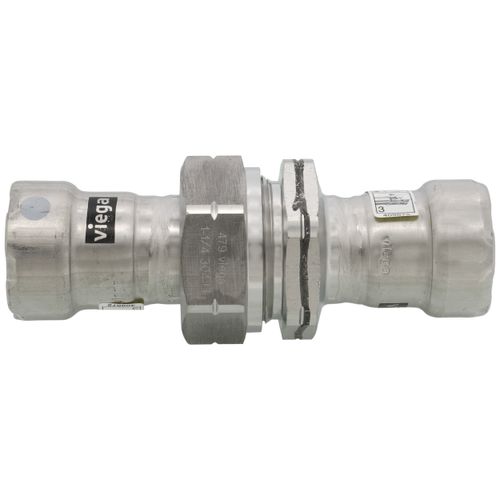

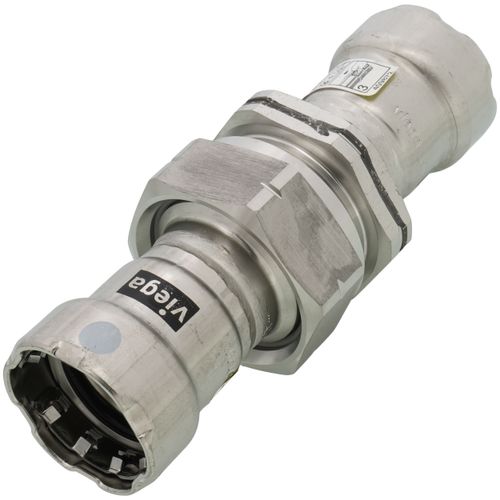

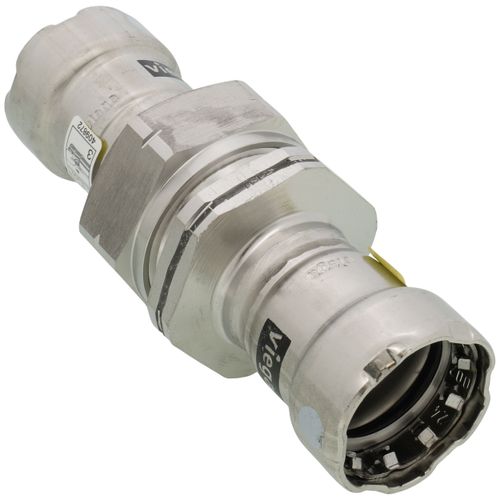

Viega 95420 MegaPress Union 3/4 inches x 3/4 inches

Product Description

The VIEGA 95420 MegaPress union is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, making it ideal for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection. It can stand up to harsh environments while transporting process water, diesel fuel, and other essential fluids or gases.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• No welding, grinding or heavy equipment needed

Product Highlights

The MegaPress union is fast and easy to use, eliminating threading and welding. Compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95420
• Country of Origin: Import

Technical Specifications

• Primary Vendor Part Number: 95420
• Fitting/Connector Type: Union
• Temperature Rating: 0 to 250 deg F
• Nominal Size: 3/4 in
• Material: 304 Stainless Steel
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• End Style: Press
• Domestic/Import: Import
• Pipe Size: 3/4 in x 3/4 in
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 3/4 in x 3/4 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Shape: Union
• Max. Pressure: 200 psi
• Material Grade: 304
• Overall Length: 5 in
• Stop and Shape: Straight Union
• Connection Type: Press-Fit x Press-Fit
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 3/4 in
• End Connection Type: Press
• Pipe Size (Fittings): 3/4" x 3/4"
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Union
• Fitting Connection Type: Press x Press
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side B Pipe Size: 3/4 in
• Pipe Size - Pipe Fitting: 3/4 in x 3/4 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Union
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Country of Origin (subject to change): Germany
• Size: 3/4"
• L: 5.00 in
• A: 2.69 in
• WS: 1.81 in
• WS1: 1.81 in
• MPN: 95420
• Type: UNION
• Includes: FKM Sealing Element
