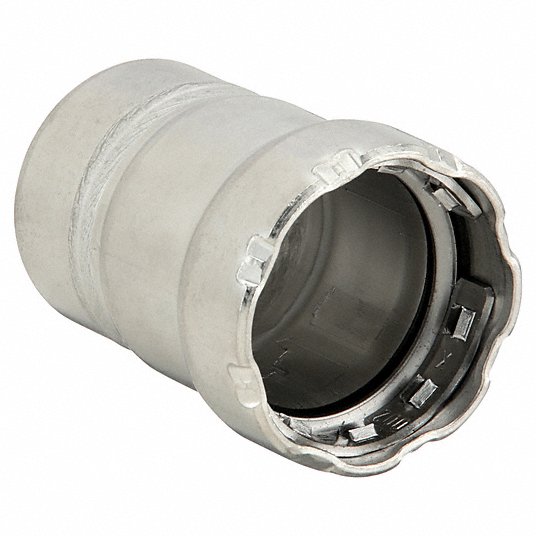

Viega 95400 MegaPress Cap, 1 in, 304 stainless steel

Product Description

The Viega 95400 MegaPress cap is a 1" 304 stainless steel fitting designed for commercial and industrial applications. MegaPress Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. This system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, and other essential fluids or gases.

• Patented Viega Smart Connect makes secure connection in less than 7 sec
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The Viega MegaPress cap eliminates threading and welding, and makes secure press connections in less than seven seconds.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95400
• Country of Origin: DE

Technical Specifications

• Size: 1 in
• Fitting/Connector Type: Cap
• Material: 304 Stainless Steel
• End Style: Press
• Temperature Rating: 0 To 250 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Country Of Origin: DE
• Dimensions: 2.43 in L
• Manufacturer: Viega
• Category: MegaPress Press Fittings
• L: 2.43 in
• A: 1.35 in
• Weight: 0.3500
• Unit of Measure: Imperial Metric Both
• Brand: VIEGA
• Sub-brand: Mega Press
• Fitting Shape: Cap
• O-Ring Material: FKM
• Temperature Range: 0 °F to 250 °F
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 1 in
• Overall Length: 2-7/16 in
• For Media Type: Potable Water
• Standards: ASME/TSSA B31.3; ASME/TSSA B31.9; ASTM A312; TSSA/ASME B31.1
• Maximum Operating Pressure: 200 psi
• UNSPSC: 40142607
• Type: Pipes, Valves & Fittings > Tube Fittings > Press-Fit Tube Fitting
• Set Includes: N/A
• Features: Crimp Fitting Cap, Application Potable Water, Compatible Pipe Size 1 in, Fitting Connection Type Press-fit, Fitting Material Stainless Steel, Material Grade 304, O-Ring Material FKM, Specific Fitting Shape Cap, Overall Length 2 7/16 in, Includes Center Stop Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM A312, TSSA/ASME B31.1, ASME/TSSA B31.3, ASME/TSSA B31.9, Minimum Operating Temperature 0 Degrees F
• Item Diameter: N/A
• Item Length: 1.000
• Item Height: 2.300
• Item Width: 1.300
• California Prop 65 Warning: N
• Compatible Brand: VIEGA
• Number of Items in Set: N/A
• MPN: 95400
• Color: N/A
• Length: 1.000
• Width: 1.300
• Depth: 1.300
• Voltage: N/A
• Power Source: N/A
• Number of Batteries: N/A
• Battery Size: N/A
• Battery Included: No
• Motor Type: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Cable Length: N/A
