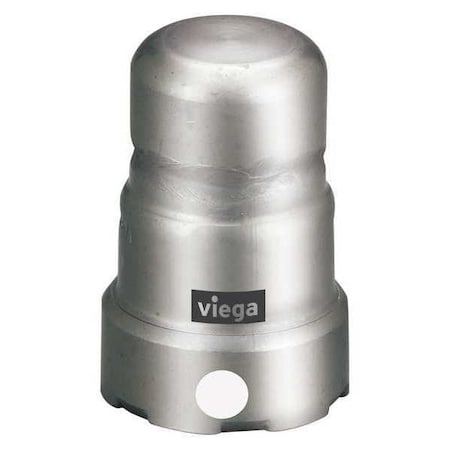

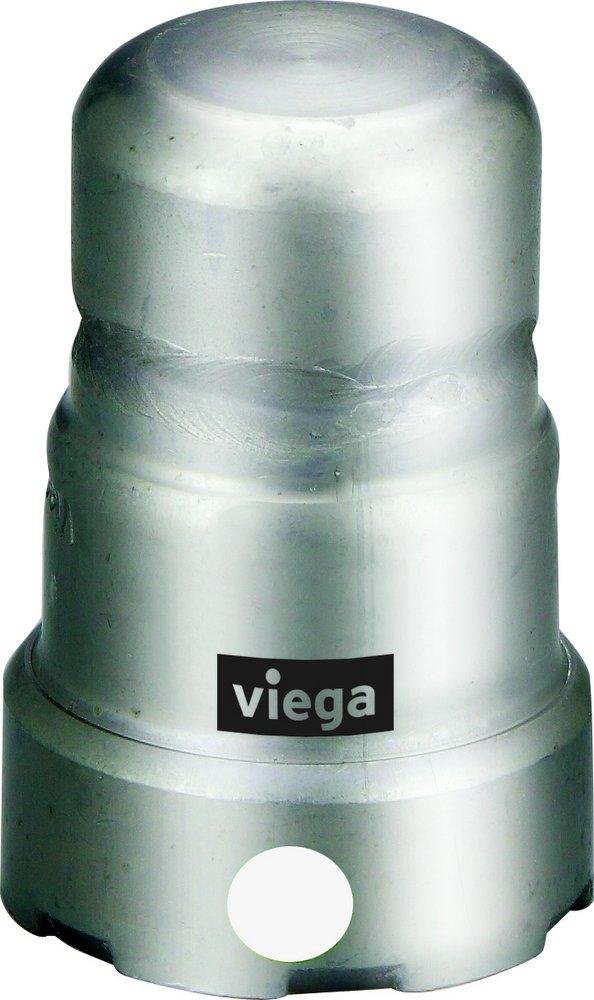

Viega 95395 MegaPress Cap 3/4 inches

Product Description

The Viega 95395 MegaPress Cap is a 3/4" cap made of 304 stainless steel. Designed for commercial and industrial applications, the MegaPress cap utilizes FKM sealing element to provide a reliable, leak-free connection. It is compatible with Schedule 10 to Schedule 40 stainless steel pipe.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The Viega MegaPress cap eliminates the need for welding, grinding, or heavy equipment. It helps installers easily identify unpressed connections during pressure testing.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95395
• Country of Origin: Germany

Technical Specifications

• Nominal Size: 3/4 in
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Material: 304 Stainless Steel
• End Style: Press
• Fitting/Connector Type: Cap
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Overall Length: 2 1/4 in
• Minimum Operating Temperature: 0 Degrees F
• End Connection Type: Press
• Fitting Pipe Size: 3/4 in
• Fitting Material: Stainless Steel
• O-Ring Material: FKM
• Specific Fitting Shape: Cap
• Fitting Connection Type: Press Fit
• Pipe Size - Pipe Fitting: 3/4 in
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Connection Type: Press connection
• Components: FKM sealing element, grip ring, separator ring
• Technology: Smart Connect Technology
• ASME: ASME B31.1, ASME B31.3, ASME B31.9
• ASTM: ASTM A-312
• Collection: MegaPress
• End Connection 1: Press
• End Connections: Press
• Fitting Size 1: 3/4
• Fitting Sizes: 3/4 in
• Fitting Type: Cap
• IAPMO Listed: Yes
• Material Type: 304, FKM
