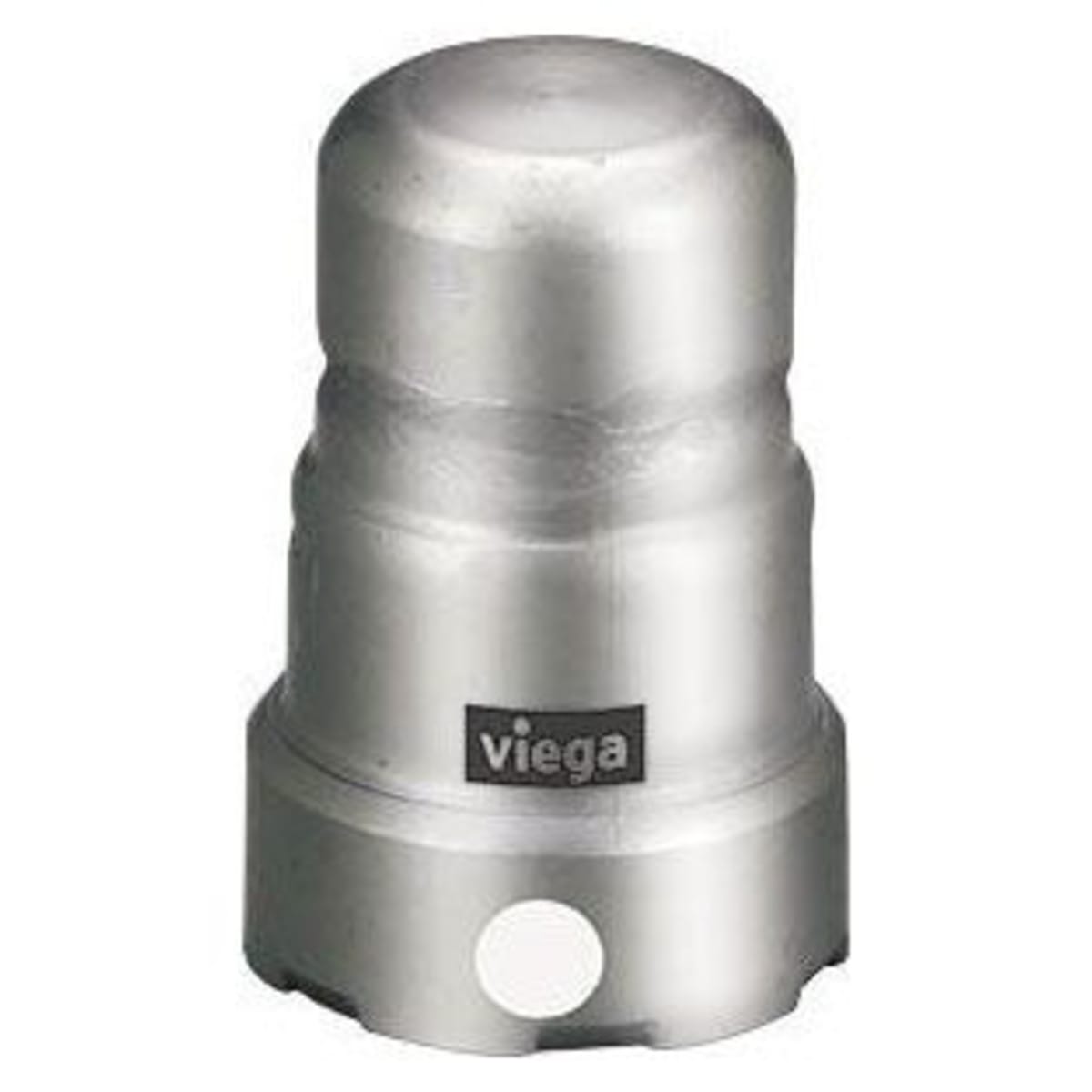

Viega 95390 MegaPress Cap 1/2 inches

Product Description

The VIEGA 95390 MegaPress cap is a 1/2" 304 stainless steel fitting designed for commercial and industrial applications. MegaPress Stainless 304 fittings utilize an FKM sealing element to provide a reliable, leak-free connection. This cap is suitable for use with Schedule 10 to Schedule 40 stainless steel pipe.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• No welding, grinding, or heavy equipment needed

Product Highlights

The Viega MegaPress system is fast and easy to use, eliminating the need for threading and welding.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95390
• Country of Origin: DE

Technical Specifications

• Size: 1/2"
• Type: Cap
• Material: 304 Stainless Steel
• Connection_Type: Press
• Temperature Rating: 0 to 250 deg F
• End Style: Press
• Includes: FKM Sealing Element
• Fitting/Connector Type: Cap
• Pressure Rating: 200 psi
• Nominal Size: 1/2 in
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Seal Material: FKM
• Manufacturer Name: Viega
• Country of Origin: DE
• Standards and Approvals: ASTM A312 | CRN 13492.5 A/B | IAPMO/UPC PS-117 | ICC LC1002 | TSSA/ASME B31.1/B31.3/B31.9
• Components: FKM sealing elements
• Feature: Smart Connect feature
• Brand: Viega
• Connector Type: Cap
• MPN: 95390
