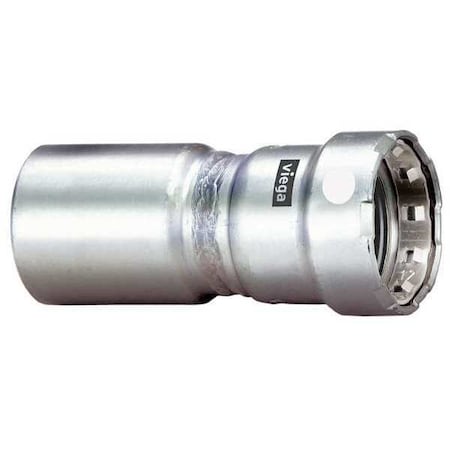

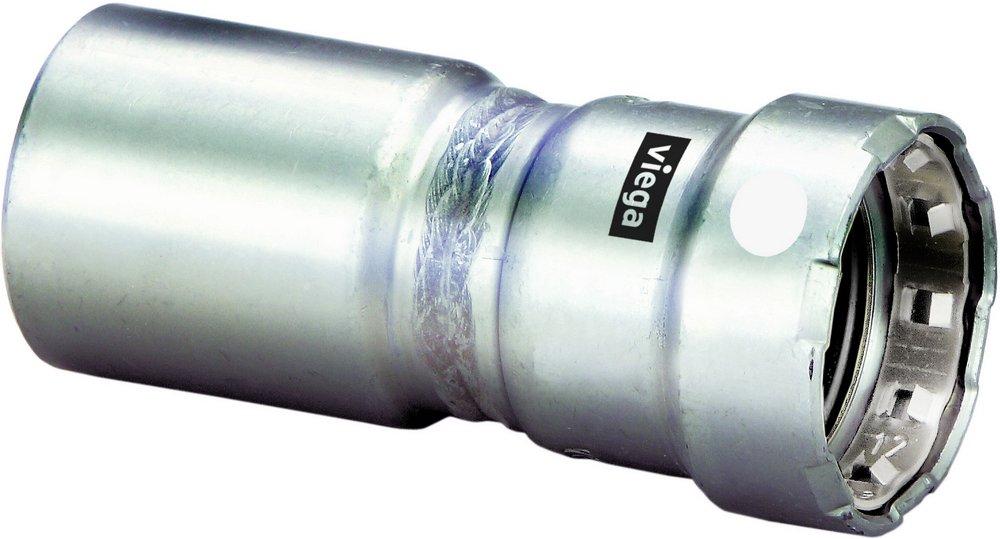

Viega 95385 MegaPress Reducer 2 inches x 1-1/2 inches

Product Description

The VIEGA 95385 MegaPress reducer is a 2" x 1-1/2" fitting made from 304 stainless steel. It's designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds.
• Minimizes system downtime by allowing for wet connection.
• No welding, grinding or heavy equipment needed.

Product Highlights

The MegaPress system is fast and easy to use, eliminating the need for threading and welding. It is compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95385
• Country of Origin: Import

Technical Specifications

• Material: 304 Stainless Steel
• Includes: FKM Sealing Element
• Nominal Size: 2 x 1-1/2 in
• Fitting/Connector Type: Reducer
• Temperature Rating: 0 to 250 deg F
• End Style: FTG x Press
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Overall Length: 4 13/16 in
• Stop and Shape: Straight Adapter
• Connection Type: FTG x Press-Fit
• O-Ring Material: FKM
• Copper Tube Size: 2 in
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1 1/2 in
• End Connection Type: Fitting, Press
• Pipe Size (Fittings): 2" x 1-1/2"
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 2 in
• Fitting Side B Pipe Size: 1 1/2 in
• Pipe Size - Pipe Fitting: 2 in x 1-1/2 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Street
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: FTG
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 2 in
• Country of Origin (subject to change): Germany
• Clean Bagged: No
• Collection: MegaPress
• End Connection 1: Fitting
• End Connection 2: Press
• End Connections: Fitting x Press
• FM Approved: No
• Fitting Size 1: 2
• Fitting Size 2: 1-1/2
• Fitting Sizes: 2 in x 1-1/2 in
• IAPMO Listed: No
• Material Type: 304 SS
• NSF Certified: No
• Origin: Global
• UL Listed: No
• UPC: 691514953854
• Tube Size: 2 in x 1-1/2 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temp. Range: 0 Degrees to 250 Degrees F
