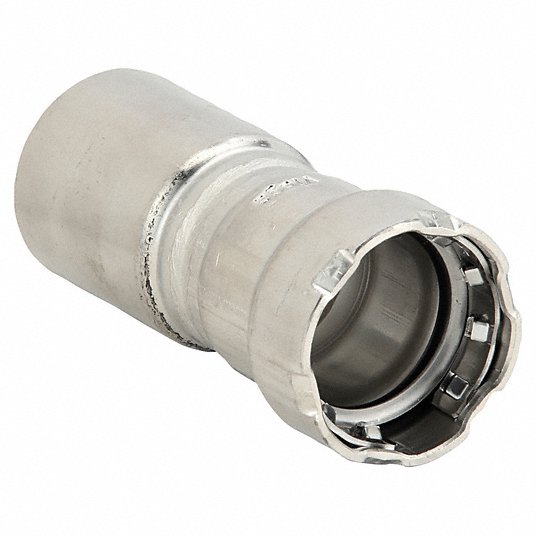

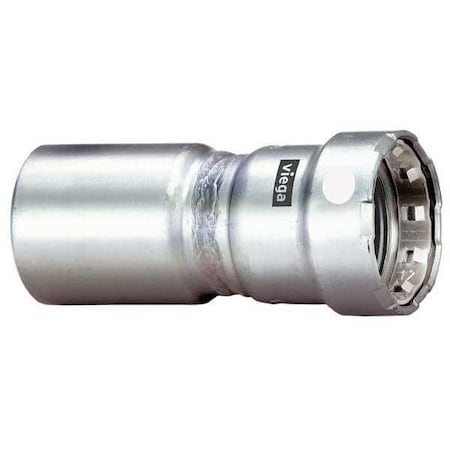

Viega 95380 MegaPress Reducer 2 inches x 1 inches

Product Description

The VIEGA 95380 MegaPress reducer is a 2" x 1" fitting made from 304 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The MegaPress system eliminates the need for welding, threading, or heavy equipment, offering a fast and easy solution for connecting pipes.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95380
• Country of Origin: Germany

Technical Specifications

• Material: 304 Stainless Steel
• End Style: FTG x Press
• Nominal Size: 2 x 1 in
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Fitting/Connector Type: Reducer
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• O-Ring Material: FKM
• Fitting Shape: Adapter
• Overall Length: 4 1/2 in
• Connection Type: FTG x Press-Fit
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1 in
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 2 in
• Fitting Side B Pipe Size: 1 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Street
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: FTG
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 2 in
• Type: 2x1
• L: 4.50 in
• A: 3.15 in
