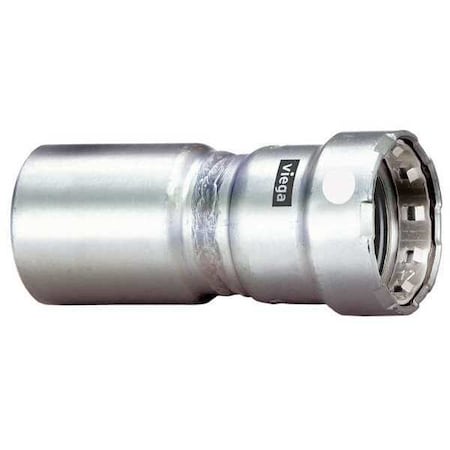

Viega 95360 MegaPress Reducer 1 inches x 1/2 inches

Product Description

The VIEGA 95360 MegaPress reducer is made from 304 stainless steel. This reducer is designed for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection. It is suitable for use with Schedule 10 to Schedule 40 stainless steel pipe.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• No welding, grinding or heavy equipment needed

Product Highlights

The MegaPress reducer is fast and easy to use, eliminating the need for threading and welding.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95360
• Country of Origin: Import

Technical Specifications

• Material: 304 stainless steel
• Application: Commercial and Industrial
• Nominal Size: 1 x 1/2 in
• End Style: FTG x Press
• Temperature Rating: 0 to 250 deg F
• Pressure Rating: 200 psi
• Fitting/Connector Type: Reducer
• Includes: FKM Sealing Element
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Tube Size: 1 in x 1/2 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Shape: Adapter
• Max. Pressure: 200 psi
• Material Grade: 304
• Overall Length: 3 1/4 in
• Stop and Shape: Straight Adapter
• Connection Type: FTG x Press-Fit
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1/2 in
• End Connection Type: Fitting, Press
• Pipe Size (Fittings): 1" x 1/2"
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 1 in
• Fitting Side B Pipe Size: 1/2 in
• Pipe Size - Pipe Fitting: 1 in x 1/2 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Street
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: FTG
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 in
