Product Description

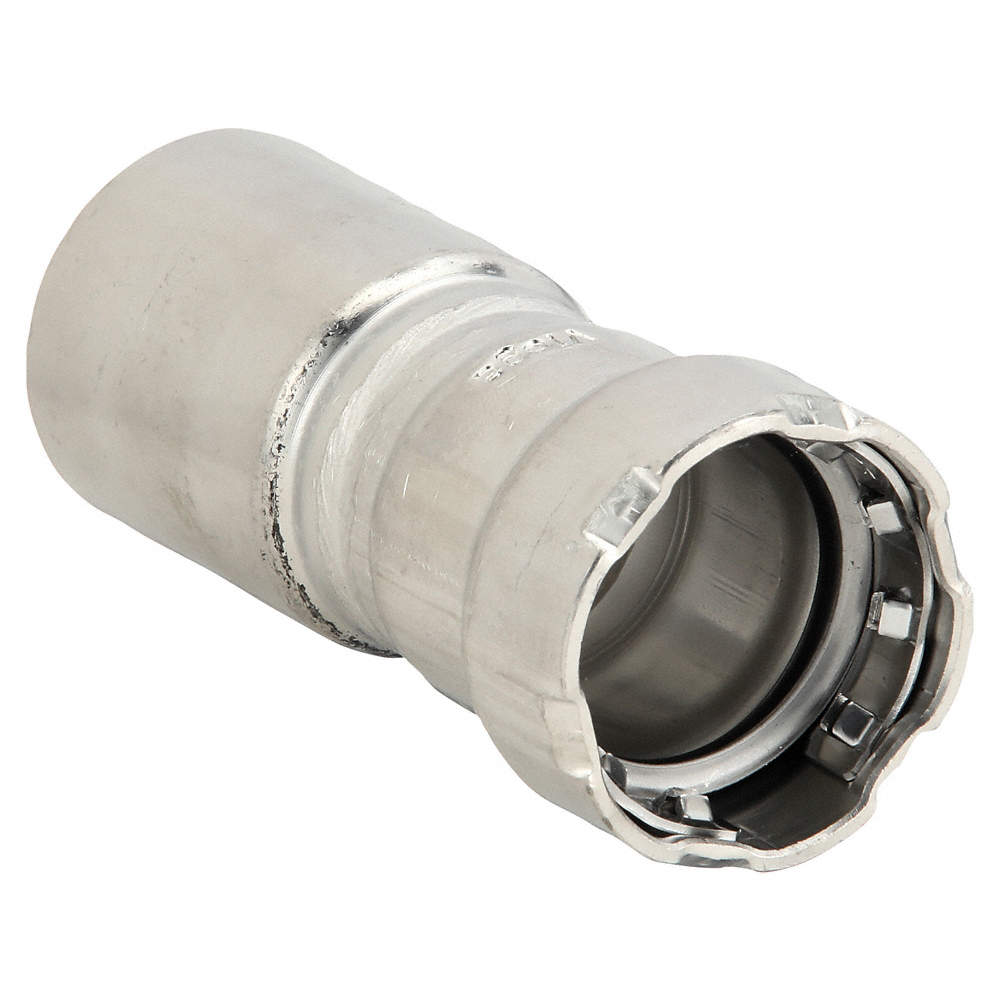

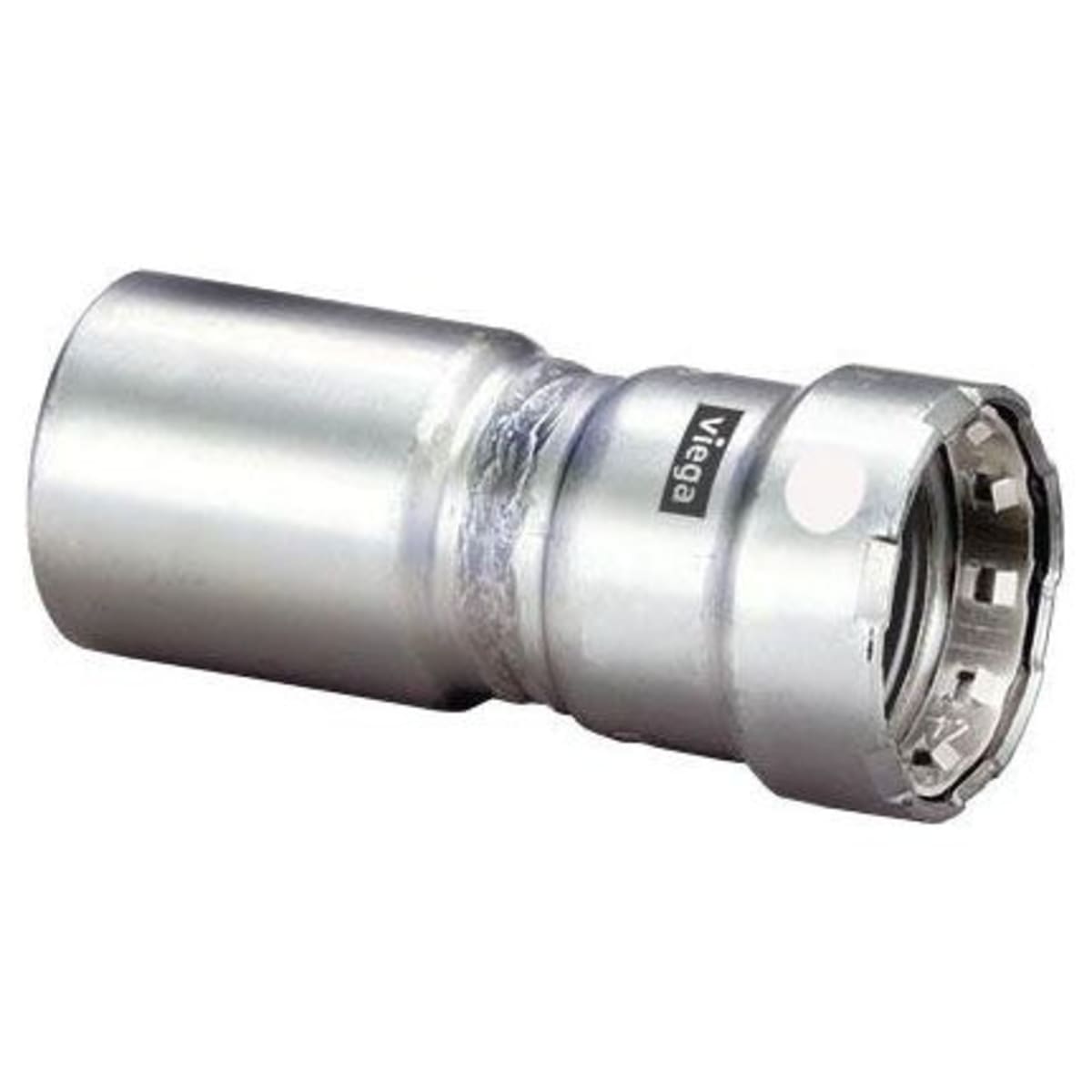

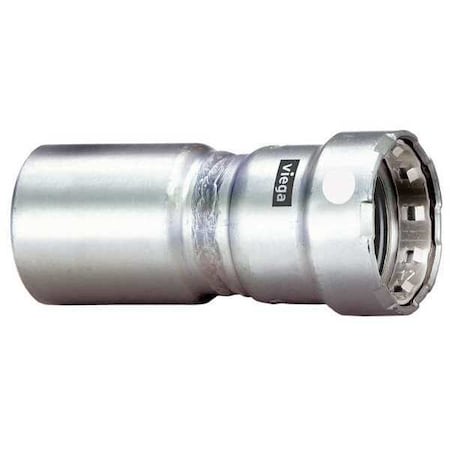

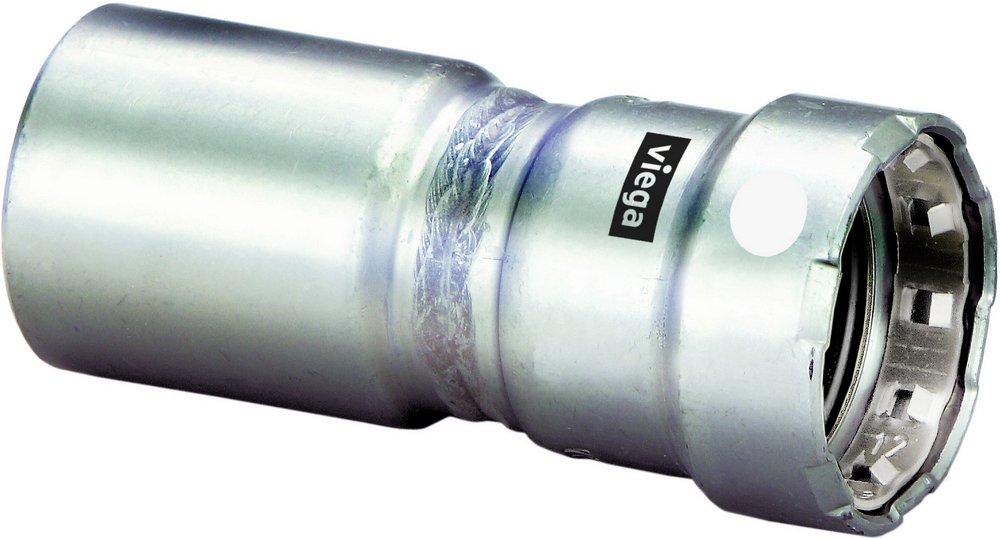

The VIEGA 95355 MegaPress reducer is a 304 stainless steel fitting with FTG (IPS) of 3/4 and P of 1/2. MegaPress Stainless 304 fittings are designed for Schedule 10 to Schedule 40 stainless steel pipe, ideal for commercial and industrial applications. It utilizes an FKM sealing element for a reliable, leak-free connection.
- Patented Viega Smart Connect makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
Product Highlights
The Viega MegaPress system eliminates threading and welding, and is compatible with existing press tools.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 95355
-
Country of Origin: Germany
Technical Specifications
-
Primary Vendor Part Number: 95355
-
Size: 3/4" x 1/2"
-
Type: Fitting Reducer
-
Material: 304 Stainless Steel
-
Connection_Type: Press x FTG
-
Domestic/Import: Import
-
Pressure Rating: 200 psi
-
Nominal Size: 3/4 x 1/2 in
-
Includes: FKM Sealing Element
-
End Style: FTG x Press
-
Fitting/Connector Type: Reducer
-
Temperature Rating: 0 to 250 deg F
-
Application: Non-Potable Water
-
Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
-
Item [Specifications]: Reducer
-
Pipe Size [Specifications]: 1/2 in
-
Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
-
Tube Size [Specifications]: 3/4 in x 1/2 in
-
Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
-
Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
-
Fitting Shape [Specifications]: Adapter
-
Max. Pressure [Specifications]: 200 psi
-
Material Grade [Specifications]: 304
-
Overall Length [Specifications]: 2 31/32 in
-
Stop and Shape [Specifications]: Straight Adapter
-
Connection Type [Specifications]: FTG x Press-Fit
-
O-Ring Material [Specifications]: FKM
-
Copper Tube Size [Specifications]: 3/4 in
-
Fitting Material [Specifications]: Stainless Steel
-
Fitting Pipe Size [Specifications]: 1/2 in
-
End Connection Type [Specifications]: Fitting, Press
-
Pipe Size (Fittings) [Specifications]: 3/4" x 1/2"
-
Fitting Body Material [Specifications]: 304 Stainless Steel
-
Tube Fitting Material [Specifications]: 304 Stainless Steel
-
Specific Fitting Shape [Specifications]: Straight Adapter
-
Fitting Connection Type [Specifications]: Press x Street
-
Fitting Copper Tube Size [Specifications]: 3/4 in
-
Fitting Side B Pipe Size [Specifications]: 1/2 in
-
Pipe Size - Pipe Fitting [Specifications]: 3/4 in x 1/2 in
-
Maximum Operating Pressure [Specifications]: 200 psi
-
Specific Pipe Fitting Shape [Specifications]: Reducer
-
Pipe Fitting Connection Type [Specifications]: Press x Street
-
Maximum Operating Temperature [Specifications]: 250 Degrees F
-
Minimum Operating Temperature [Specifications]: 0 Degrees F
-
Fitting Side A Connection Type [Specifications]: FTG
-
Fitting Side B Connection Type [Specifications]: Press-Fit
-
Fitting Side A Copper Tube Size [Specifications]: 3/4 in
-
Country of Origin (subject to change) [Specifications]: Germany
-
Item: Reducer
-
Fitting Side A Connection Type: FTG
-
Fitting Side A Pipe Size: 3/4 in
-
Material Grade: 304
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Clean Bagged: No
-
Collection: MegaPress
-
End Connection 1: Fitting
-
End Connection 2: Press
-
End Connections: Fitting x Press
-
FM Approved: No
-
Fitting Size 1: 3/4
-
Fitting Size 2: 1/2
-
Fitting Sizes: 3/4 in x 1/2 in
-
IAPMO Listed: No
-
Material Type: 304 SS
-
NSF Certified: No
-
Origin: Global
