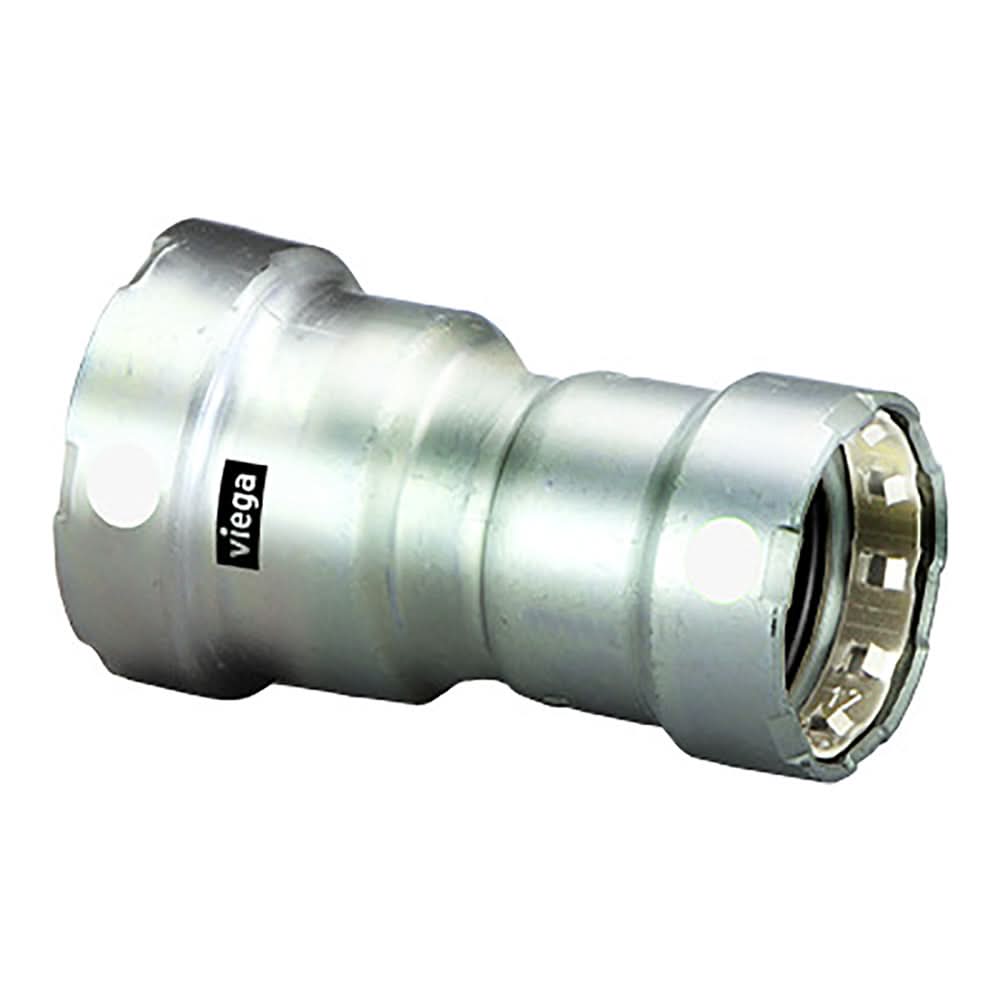

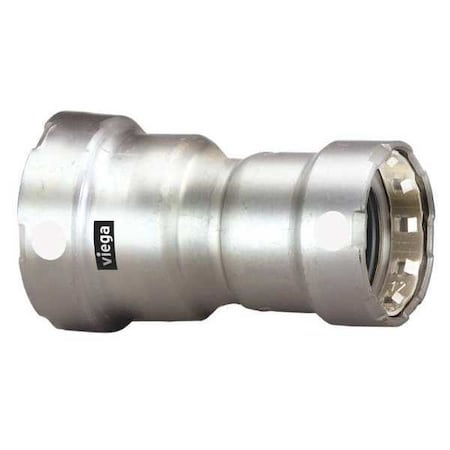

Viega 95350 MegaPress reducer 2 inches x 1-1/2 inches

Product Description

The VIEGA 95350 MegaPress reducer is a 2" x 1-1/2" reducer made from 304 stainless steel. Viega MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, making them ideal for commercial and industrial applications.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

This MegaPress reducer is suitable for transporting process water, diesel fuel, lube oil, ammonia, low pressure steam and other essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95350
• Country of Origin: Germany

Technical Specifications

• Pressure Rating: 200 psi
• Material: 304 Stainless Steel
• End Style: Press
• Temperature Rating: 0 to 250 deg F
• Nominal Size: 2 x 1-1/2 in
• Fitting/Connector Type: Reducer
• Includes: FKM Sealing Element
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item [Specifications]: Reducer
• Pipe Size [Specifications]: 2 in x 1 1/2 in
• Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 2 in x 1-1/2 in
• Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Application [Specifications]: Non-Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Connector
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Overall Length [Specifications]: 5 1/4 in
• Stop and Shape [Specifications]: Straight Reducing Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1 1/2 in, 2 in
• End Connection Type [Specifications]: Press
• Pipe Size (Fittings) [Specifications]: 2" x 1-1/2"
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Reducing Connector
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 2 in
• Fitting Side B Pipe Size [Specifications]: 1 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 2 in x 1-1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Reducer
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Components: FKM sealing elements
• Brand: MegaPress
• Seal Material: FKM
• Manufacturer Name: Viega
• Standards and Approvals: ASTM A312 | CRN 13492.5 A/B | IAPMO/UPC PS-117 | ICC LC1002 | TSSA/ASME B31.1/B31.3/B31.9
• MPN: 95350
• Material Type: 304 Stainless Steel
• Product Dimension: 2'' x 1-1/2''
• Product Length: 5.307"
• Product Height: 2.894"
• Product Weight: 1.265 lbs
• Product Width: 2.894"
• SKU: 95350
• OPV Part#: V304MPFR2006
• Viega Part#: 95350
• Size: 2X1
