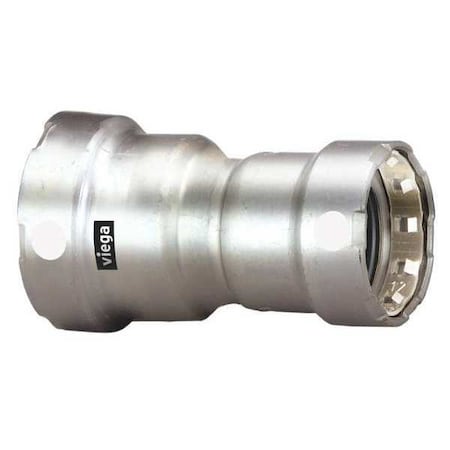

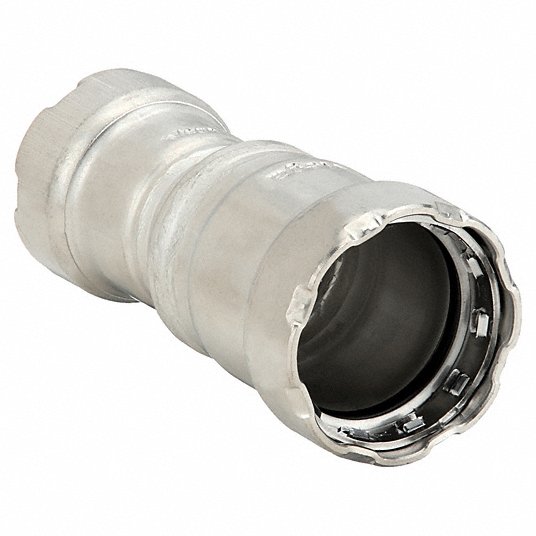

Viega 95345 MegaPress Reducer 1-1/2 inches x 1 inches

Product Description

The VIEGA 95345 MegaPress reducer is a 1-1/2" x 1" fitting made of 304 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Made of 304 stainless steel
• Features a FKM sealing element
• Suitable for commercial and industrial applications

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections and is fast and easy to use.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95345
• Country of Origin: Germany

Technical Specifications

• Material: 304 stainless steel
• Size: 1-1/2" x 1"
• End Style: Press
• Includes: FKM Sealing Element
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Nominal Size: 1-1/2 x 1 in
• Domestic/Import: Import
• Fitting/Connector Type: Reducer
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Fitting Shape: Straight
• O-Ring Material: FKM
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 1-1/2 in
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Pipe Size: 1 in
• Overall Length: 4-9/16 in
• For Media Type: Potable Water
• Maximum Operating Pressure: 200 psi
• Compatible Brand: VIEGA
• Type: Reducer
• Shape: Reducer Coupling
• Item Diameter: 1-1/2 X 1 IPS MegaPress
• MPN: 95345
• Material Grade: 304
• Features: Coupling With Stop
• UPC: 691514953458
• OPV Part#: V304MPFR0806
• Viega Part#: 95345
• Pipe Size: 1 1/2 in x 1 in
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 1-1/2 in x 1 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Material: Stainless Steel
• Stop and Shape: Straight Reducing Connector
• Connection Type: Press-Fit x Press-Fit
• Fitting Pipe Size: 1 1/2 in, 1 in
• End Connection Type: Press
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Reducer
• Fitting Connection Type: Press x Press
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Country of Origin (subject to change): Germany
• Temperature Range: 0 F to 250 F
