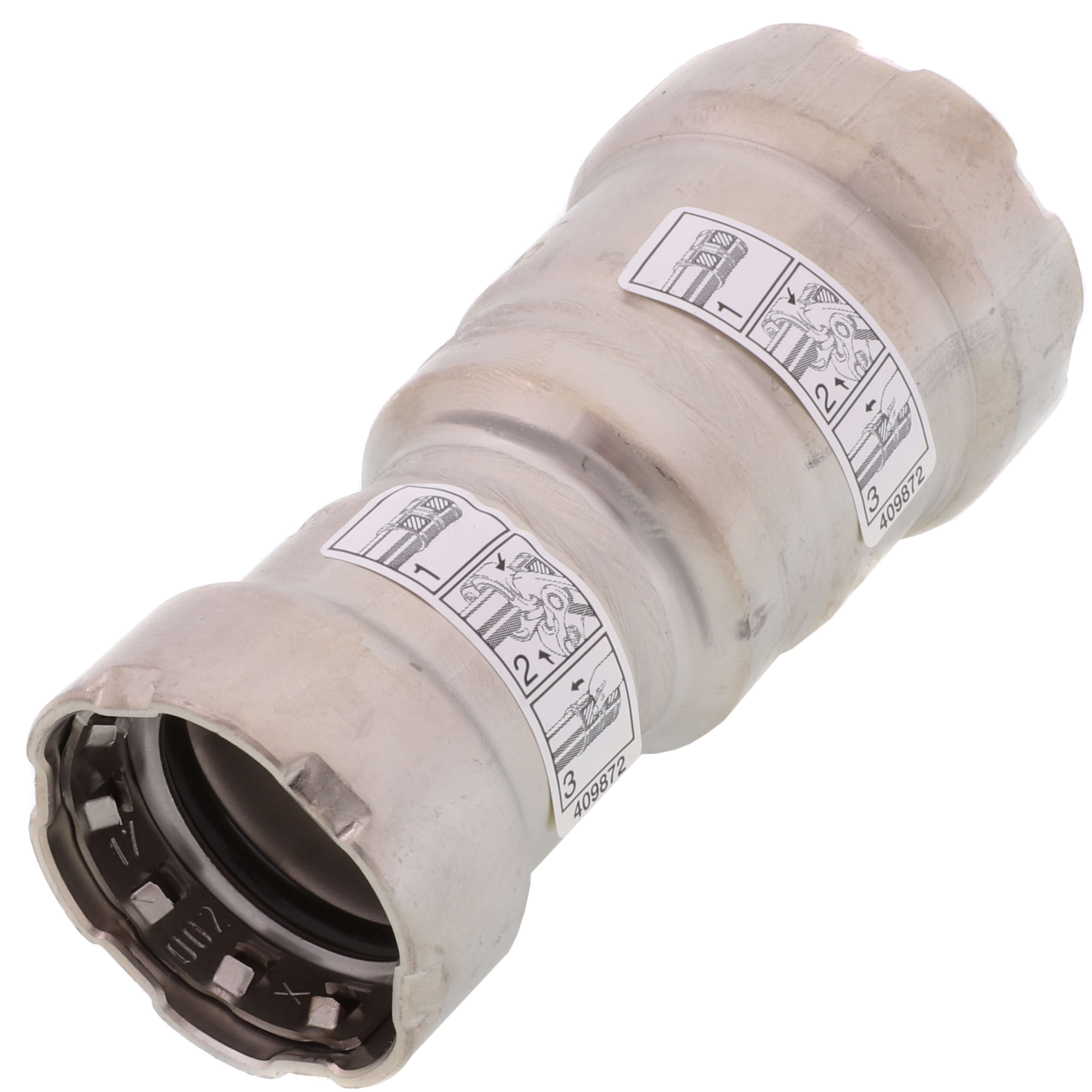

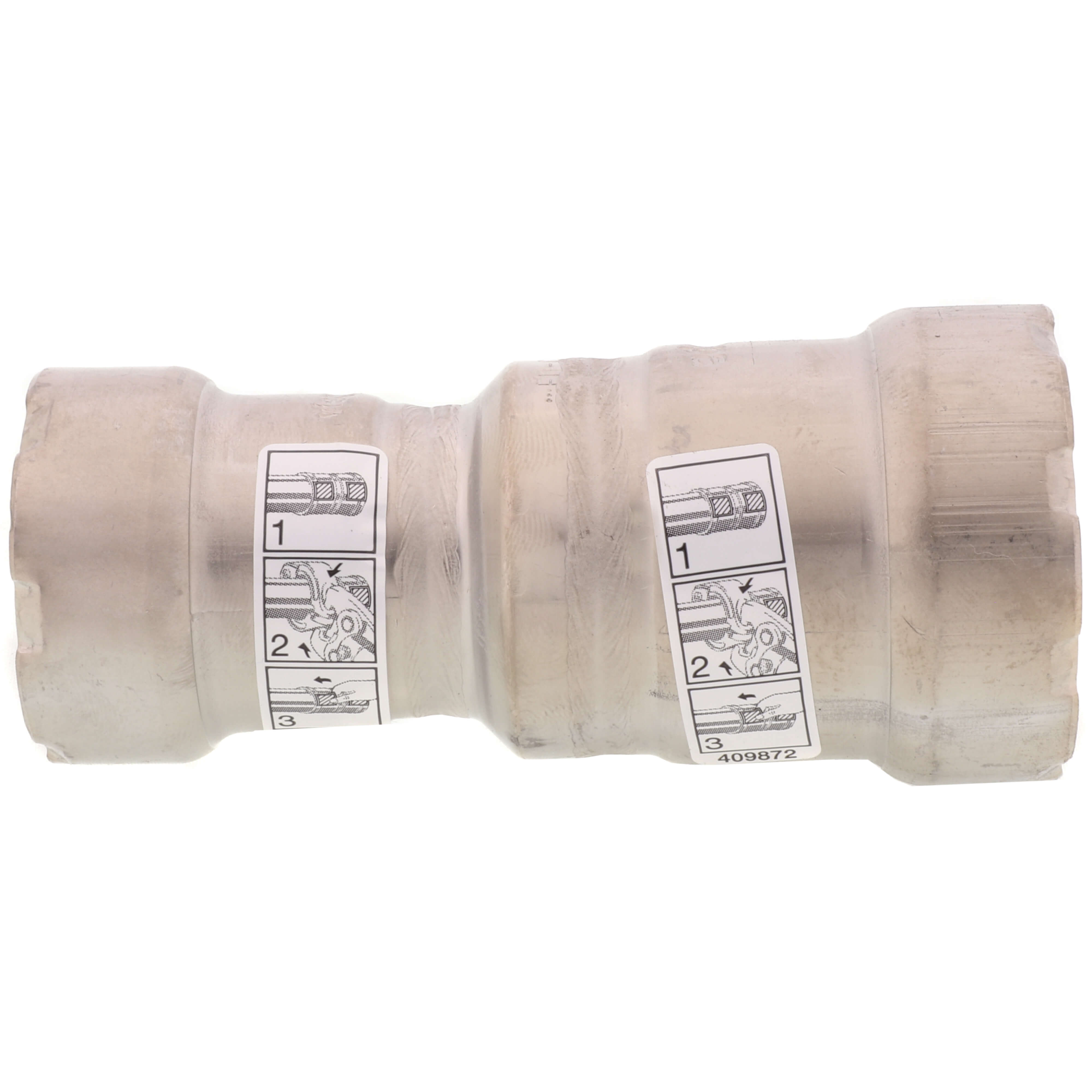

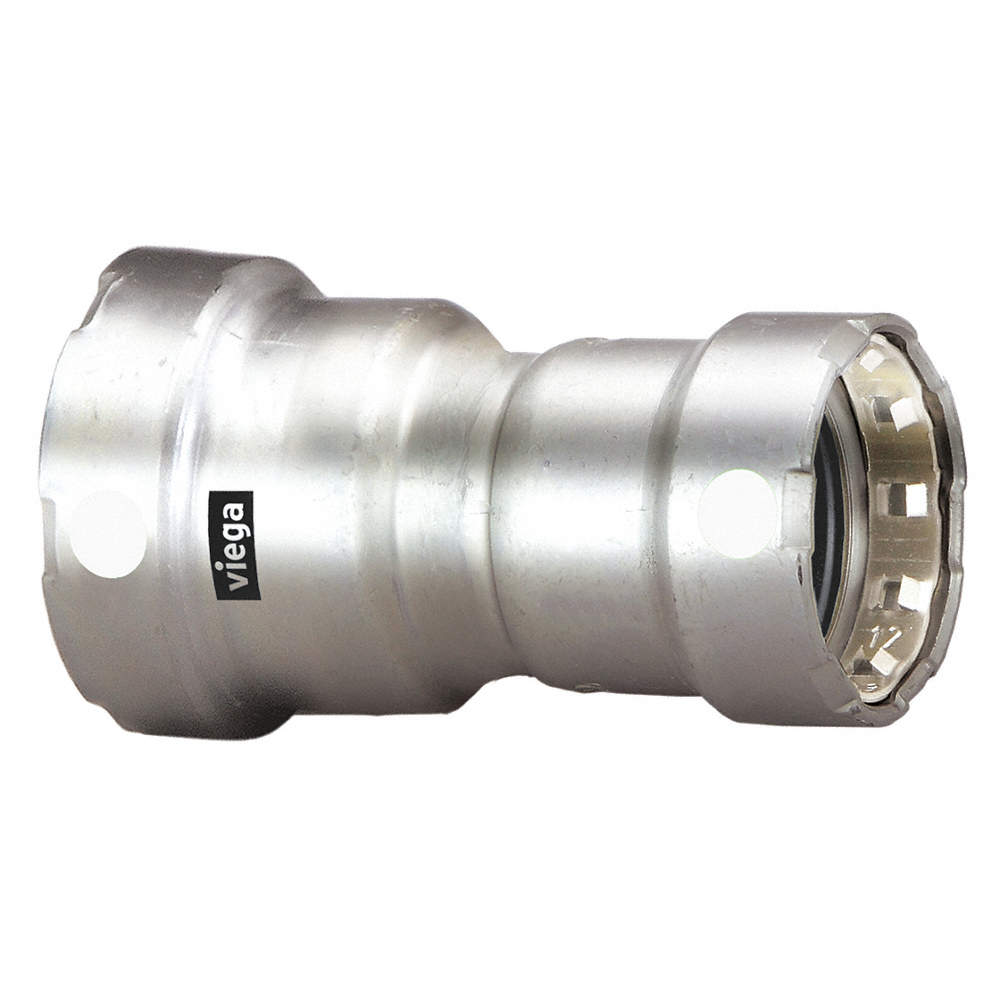

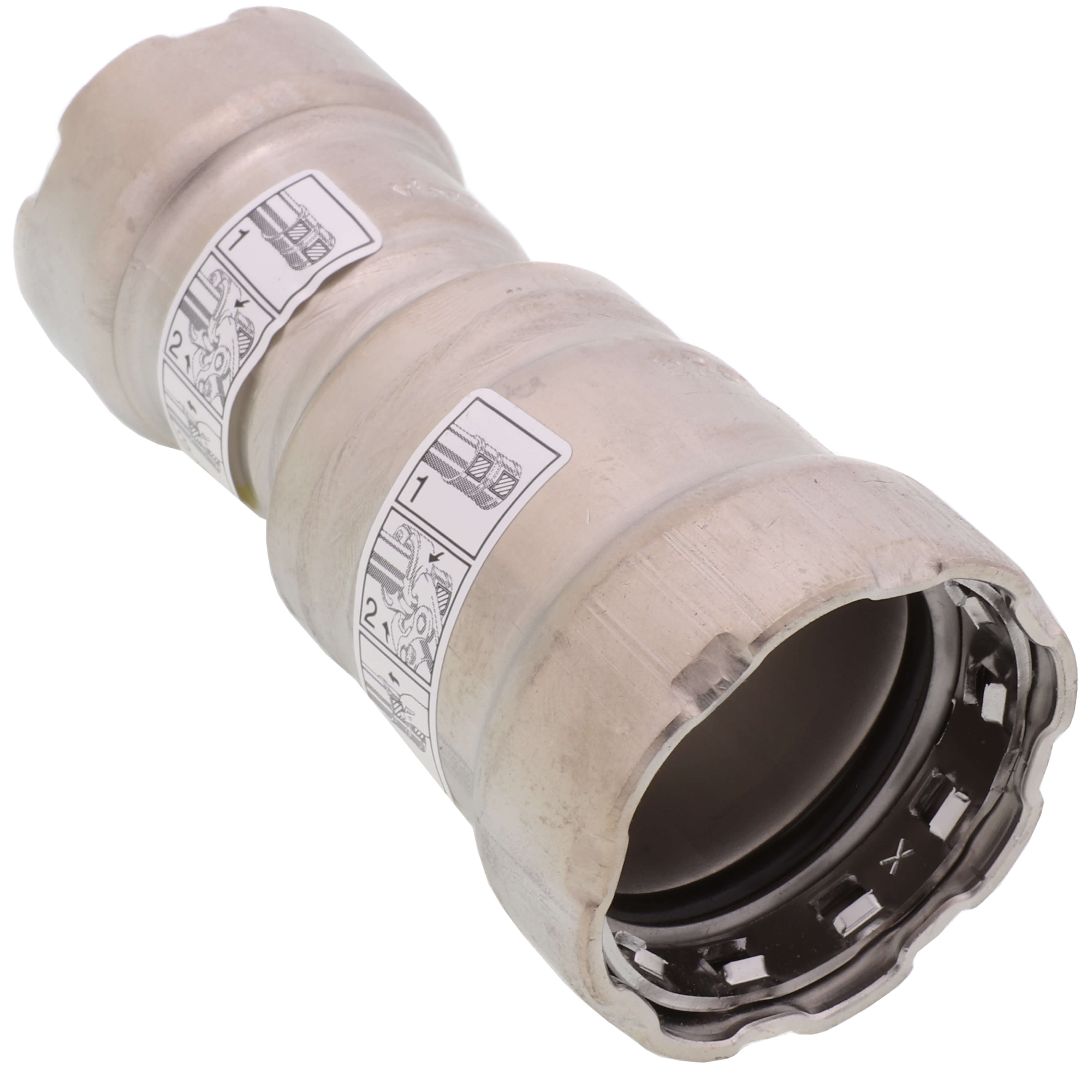

Viega 95340 MegaPress Reducer 1 inches x 3/4 inches

Product Description

The VIEGA 95340 MegaPress reducer is a 1" x 3/4" fitting made from 304 stainless steel. It is designed for use with Schedule 10 to Schedule 40 stainless steel pipe in commercial and industrial applications. The MegaPress system utilizes a FKM sealing element to provide a reliable, leak-free connection for essential fluids or gases.

• MegaPress technology
• 304 stainless steel construction
• Reducer fitting

Product Highlights

The Viega MegaPress reducer minimizes system downtime by allowing for wet connections and is fast and easy to use.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95340
• Country of Origin: Germany

Technical Specifications

• MPN: 95340
• Material: 304 Stainless Steel
• Fitting/Connector Type: Reducer
• Nominal Size: 1 x 3/4 in
• Pressure Rating: 200 psi
• End Style: Press
• Domestic/Import: Import
• Temperature Rating: 0 to 250 deg F
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Includes: FKM Sealing Element
• Fitting Shape [Specifications]: Connector
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Overall Length [Specifications]: 3 3/4 in
• Stop and Shape [Specifications]: Straight Reducing Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1 in, 3/4 in
• End Connection Type [Specifications]: Press
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Reducing Connector
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 1 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Reducer
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
• Seal Material: FKM
• Manufacturer Name: Viega
• Standards and Approvals: ASTM A312 | CRN 13492.5 A/B | IAPMO/UPC PS-117 | ICC LC1002 | TSSA/ASME B31.1/B31.3/B31.9
• Size: 1" x 3/4"
• L: 3.74 in
• A: 1.24 in
• P/N: 95340
• Item: MEGAPRESS REDUCER 1 X 3/4
• OEM: Viega
• OEM #: 95340
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temperature Range: 0 Degrees to 250 Degrees F
• Tube Size: 1 x 3/4 in
• Type: Press Tube Fittings
• UPC: 691514953403
• Country of Origin: United States
• Sealing Element: FKM sealing elements
• Feature: Smart Connect feature
