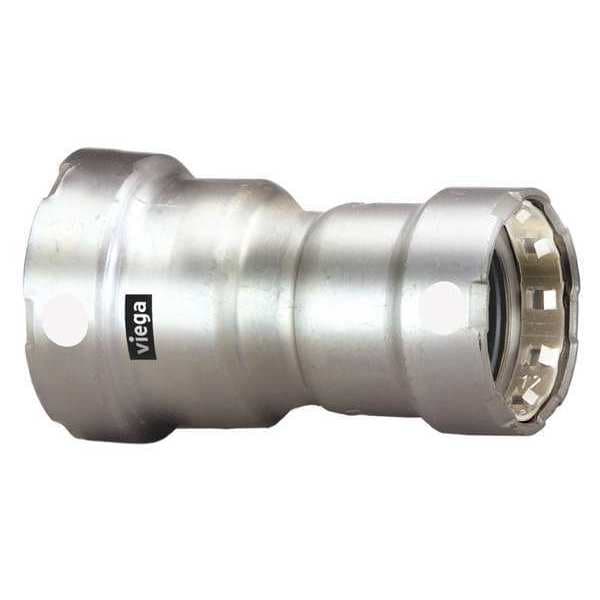

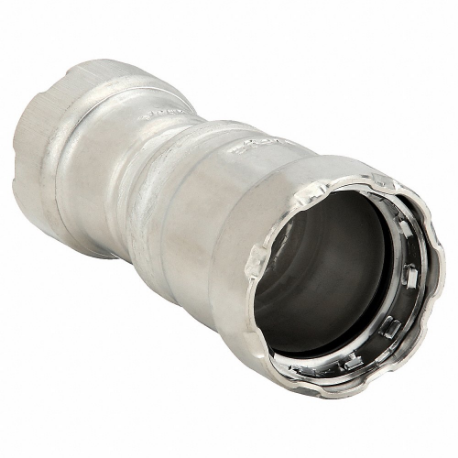

Viega 95335 MegaPress Reducer, 304 Stainless Steel, 3/4 inches x 1/2 inches

Product Description

The VIEGA 95335 MegaPress reducer is made of 304 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• MegaPress technology
• 304 stainless steel construction
• Reducer fitting

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections, eliminating the need for welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95335
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 95335
• Includes: FKM Sealing Element
• End Style: Press
• Dimensions: 3.43 in L
• Nominal Size: 3/4 x 1/2 in
• Fitting/Connector Type: Reducer
• Domestic/Import: Import
• Temperature Rating: 0 to 250 deg F
• Pressure Rating: 200 psi
• Material: 304 Stainless Steel
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item: Reducer
• Tube Size: 3/4 in x 1/2 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Shape: Straight
• Max. Pressure: 200 psi
• Material Grade: 304
• Maximum Operating Temperature: 250 Degrees F
• Fitting Side B Connection Type: Press-Fit
• Maximum Operating Pressure: 200 psi
• O-Ring Material: FKM
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Operating Temperature - Maximum: 250 Degrees F
• Operating Temperature - Minimum: 0 Degrees F
• Operating Pressure - Maximum: 200 psi
• For Media Type: Potable Water
• Pipe Size - Pipe Fitting: 3/4 in x 1/2 in
• Pipe Size (Fittings): 3/4" x 1/2"
• Fitting Side B Pipe Size: 1/2 in
• Overall Length: 3 7/16 in
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side 2 Pipe Size: 1/2 in
• Fitting Side 1 Pipe Size: 3/4 in
• Specific Fitting Shape: Straight Reducing Connector
• Fitting Connection Type: Press x Press
• Pipe Fitting Connection Type: Press x Press
• Specific Pipe Fitting Shape: Reducer
• Country of Origin (subject to change): Germany
• Connection Type: Press
• Size: 3/4" x 1/2"
• Standard: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
