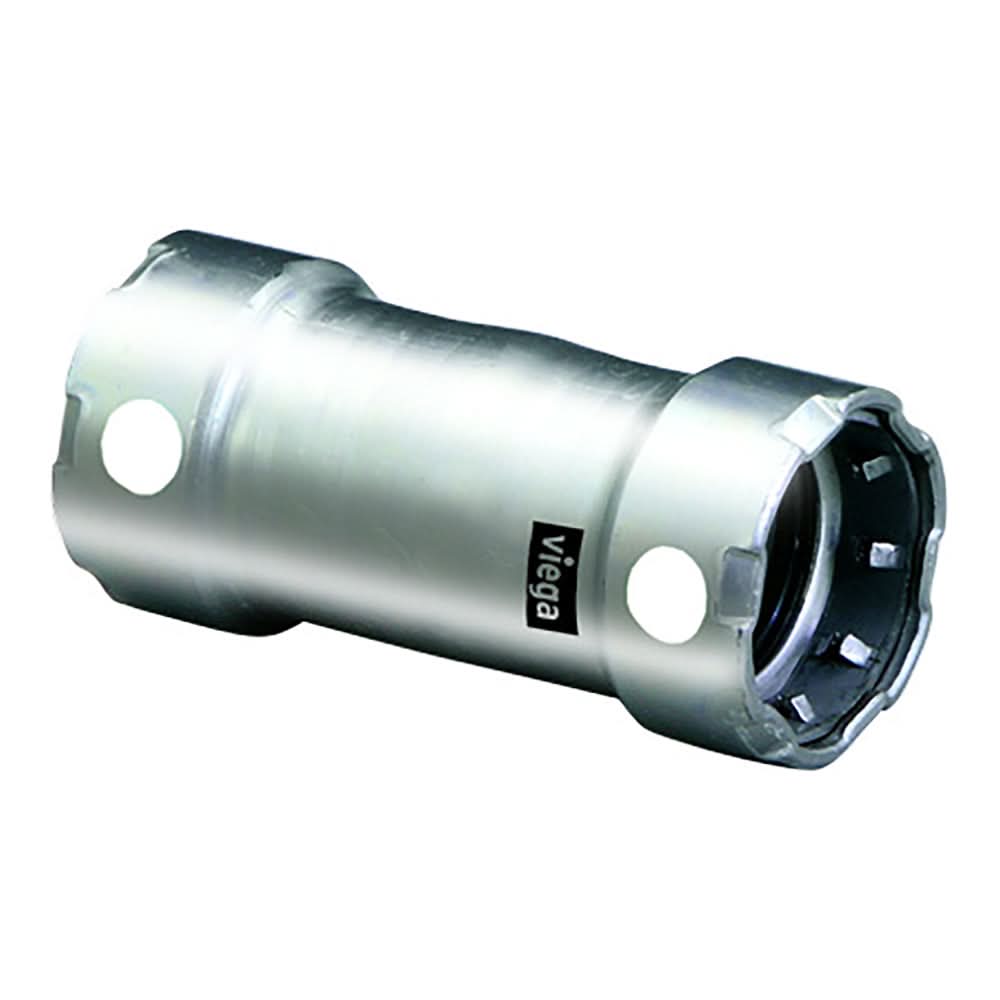

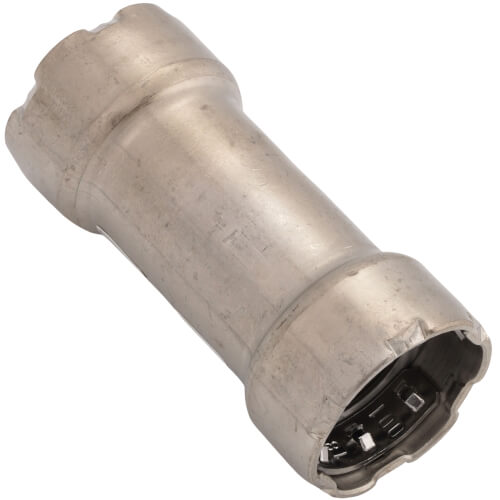

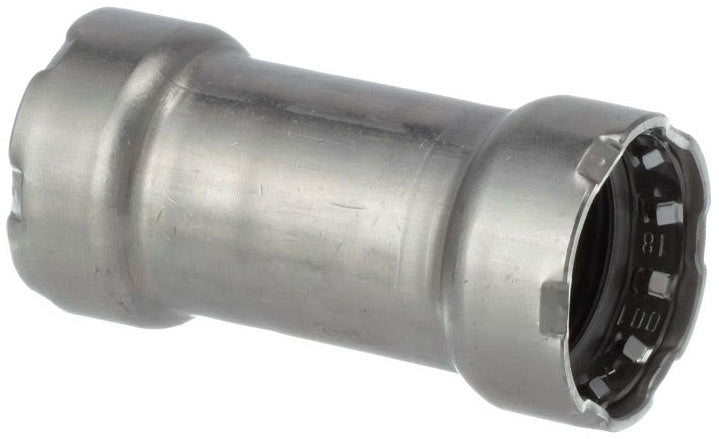

Viega 95325 MegaPress Coupling 1-1/2 inches x 1-1/2 inches

Product Description

The VIEGA 95325 MegaPress coupling is a 1-1/2" x 1-1/2" coupling made of 304 stainless steel. Viega MegaPress Stainless 304 fittings are designed for Schedule 10 to Schedule 40 stainless steel pipe, ideal for commercial and industrial applications. These fittings use an FKM sealing element for a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds.
• Minimizes system downtime by allowing for wet connection.
• No welding, grinding, or heavy equipment is needed.

Product Highlights

The Viega MegaPress system stands up to harsh environments, transporting process water, fuel, oil, and more.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95325
• Country of Origin: Germany

Technical Specifications

• Material: 304 Stainless Steel
• Fitting/Connector Type: Coupler
• Nominal Size: 1-1/2 in
• End Style: Press
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Dimensions: 4.63 in L
• Includes: FKM Sealing Element
• Application: Commercial and Industrial
• Domestic/Import: Import
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1 1/2 in
• End Connection Type: Press
• Fitting Body Material: 304 Stainless Steel
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: Straight Connector
• Fitting Connection Type: Press x Press
• Fitting Side A Pipe Size: 1 1/2 in
• Fitting Side B Pipe Size: 1 1/2 in
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Country of Origin: Germany
• Size: 1 1/2
• Weight: 0.985 lb
• Seal Material: FKM
• Standards and Approvals: ASTM A312 | CRN 13492.5 A/B | IAPMO/UPC PS-117 | ICC LC1002 | TSSA/ASME B31.1/B31.3/B31.9
• Type: Press Tube Fittings
• MPN: 95325
• UPC: 691514953250
• Applicable Standard: ASME/TSSA B31.1/B31.3/B31.9, CRN 13492.5, IAPMO/UPC PS-117, ICC LC1002
• Service: Gas, Water
• Size A: 1-1/2 Inch
• Size B: 1-1/2 Inch
• VEN Product No: 95325
• Vendor UPC (12): 691514953250
• VENDOR Product No: 95325
• Vendor Short Name: 691514
• Material Specification: ASTM A312
• Connection Type: Press
• Sealing Element: FKM
• Schedule: 10 to 40 S
• Gasket Details: FKM Sealing Element
• Gasket Supplied: Yes
