Product Description

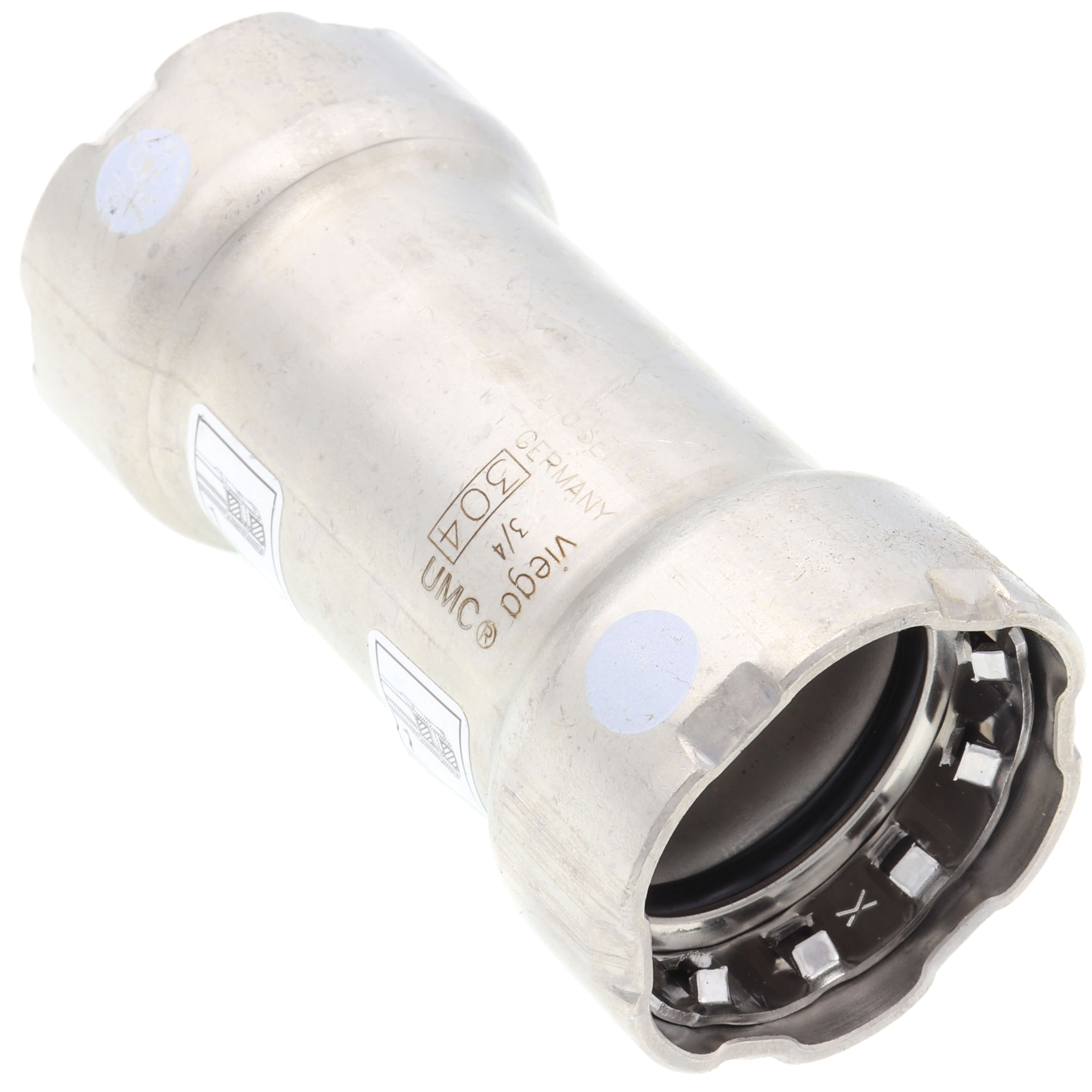

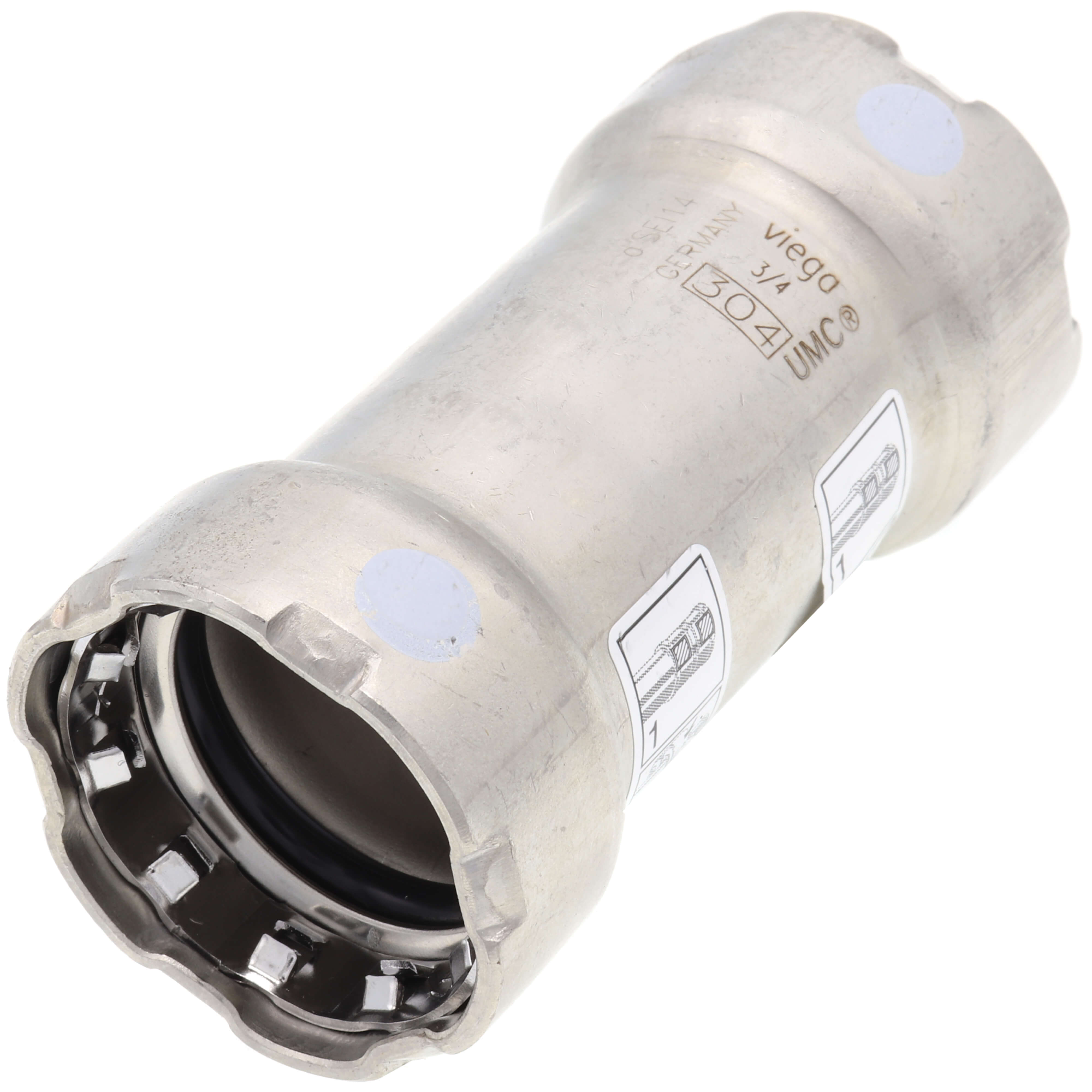

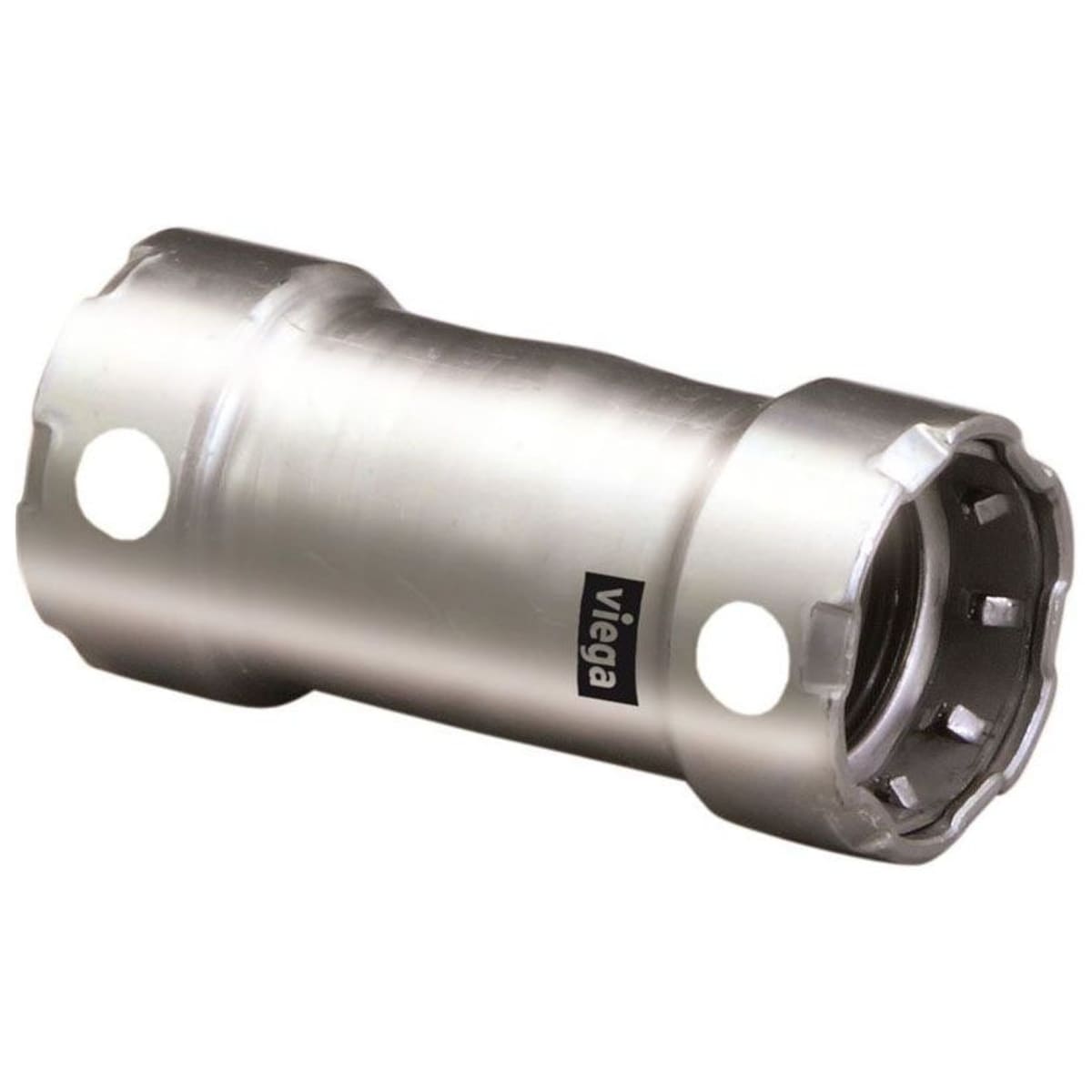

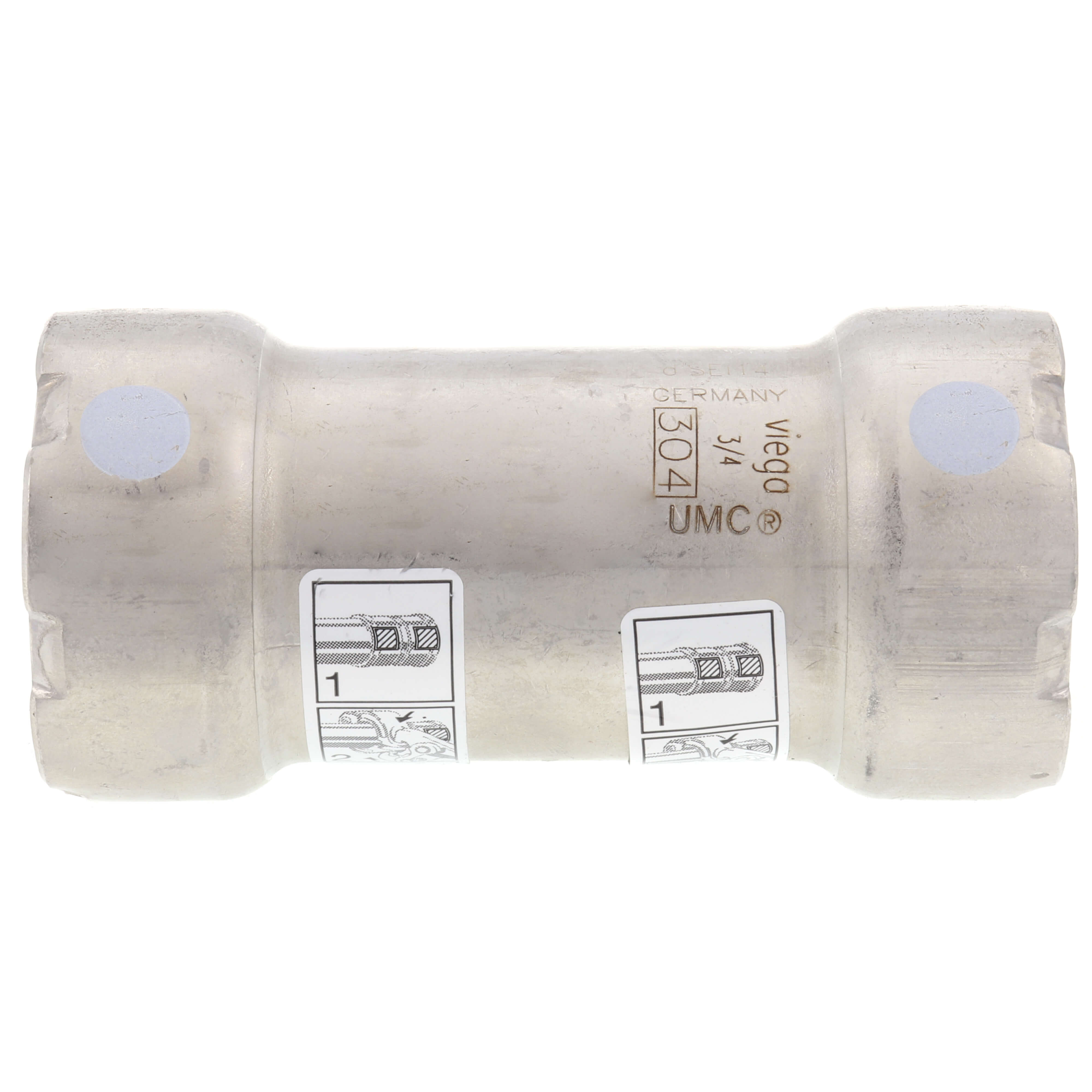

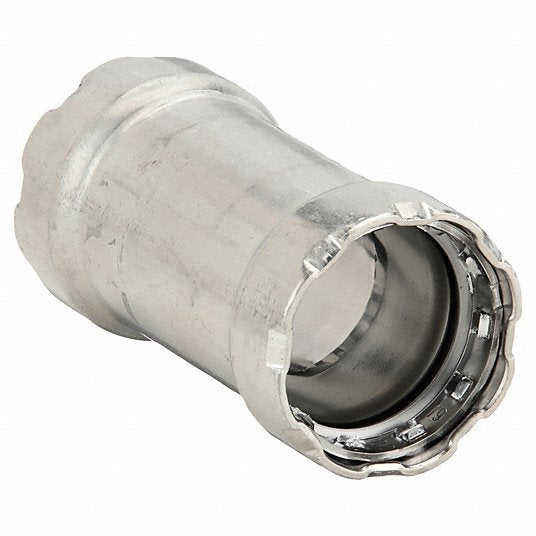

The VIEGA 95315 MegaPress coupling is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, ideal for commercial and industrial applications. These 304 stainless steel fittings utilize an FKM sealing element for a reliable, leak-free connection. It is suitable for transporting process water, diesel fuel, lube oil, and low-pressure steam.
- Patented Viega Smart Connect makes secure connections in less than 7 seconds.
- Minimizes system downtime by allowing for wet connection.
- Helps installers easily identify unpressed connections during pressure testing.
Product Highlights
The Viega MegaPress system eliminates the need for welding, threading, or heavy equipment, offering a fast and easy-to-use solution for secure press connections.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 95315
-
Country of Origin: Import
Technical Specifications
-
Size: 3/4"
-
Type: Press Tube Fittings
-
Material: 304 Stainless Steel
-
Connection_Type: Press
-
Pressure Rating: 200 psi
-
Includes: FKM Sealing Element (White Dot)
-
End Style: Press
-
Fitting/Connector Type: Coupler
-
Nominal Size: 3/4 in
-
Temperature Rating: 0 to 250 deg F
-
Application: Non-Potable Water
-
Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
-
Domestic/Import: Import
-
Coupling no stop: Coupling no stop
-
Pipe Size: 3/4 in x 3/4 in
-
Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
-
Tube Size: 3/4 in x 3/4 in
-
Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
-
Temp. Range: 0 Degrees to 250 Degrees F
-
Fitting Shape: Connector
-
Max. Pressure: 200 psi
-
Material Grade: 304
-
Overall Length: 2 15/16 in
-
Stop and Shape: Straight Connector
-
Fitting Pipe Size: 3/4 in
-
End Connection Type: Press
-
Pipe Size (Fittings): 3/4" x 3/4"
-
Fitting Body Material: 304 Stainless Steel
-
Tube Fitting Material: 304 Stainless Steel
-
Specific Fitting Shape: Straight Connector
-
Fitting Connection Type: Press x Press
-
Fitting Side A Pipe Size: 3/4 in
-
Fitting Side B Pipe Size: 3/4 in
-
Pipe Size - Pipe Fitting: 3/4 in x 3/4 in
-
Maximum Operating Pressure: 200 psi
-
Specific Pipe Fitting Shape: Coupling
-
Pipe Fitting Connection Type: Press x Press
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: Press-fit
-
Country of Origin (subject to change): Germany
-
Brand: VIEGA MEGAPRESS
-
MPN: 95315
-
Seal Material: FKM
-
Manufacturer Name: Viega
-
collectionName: MegaPress 304 FKM
-
UOM: Piece
-
Model#: 4115.5
-
Label Part Dimension: 3/4 in x 3/4 in
-
Batteries included: No
-
Hazardous Material: No
-
Package Quantity: 10
-
UPC: 691514953151
-
For Media Type: Potable Water
-
Fitting Side 1 Connection Type: Press-fit
-
UNSPSC: 40142610
