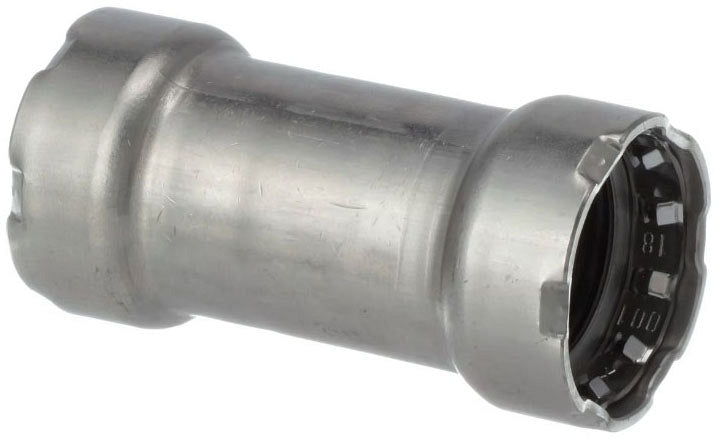

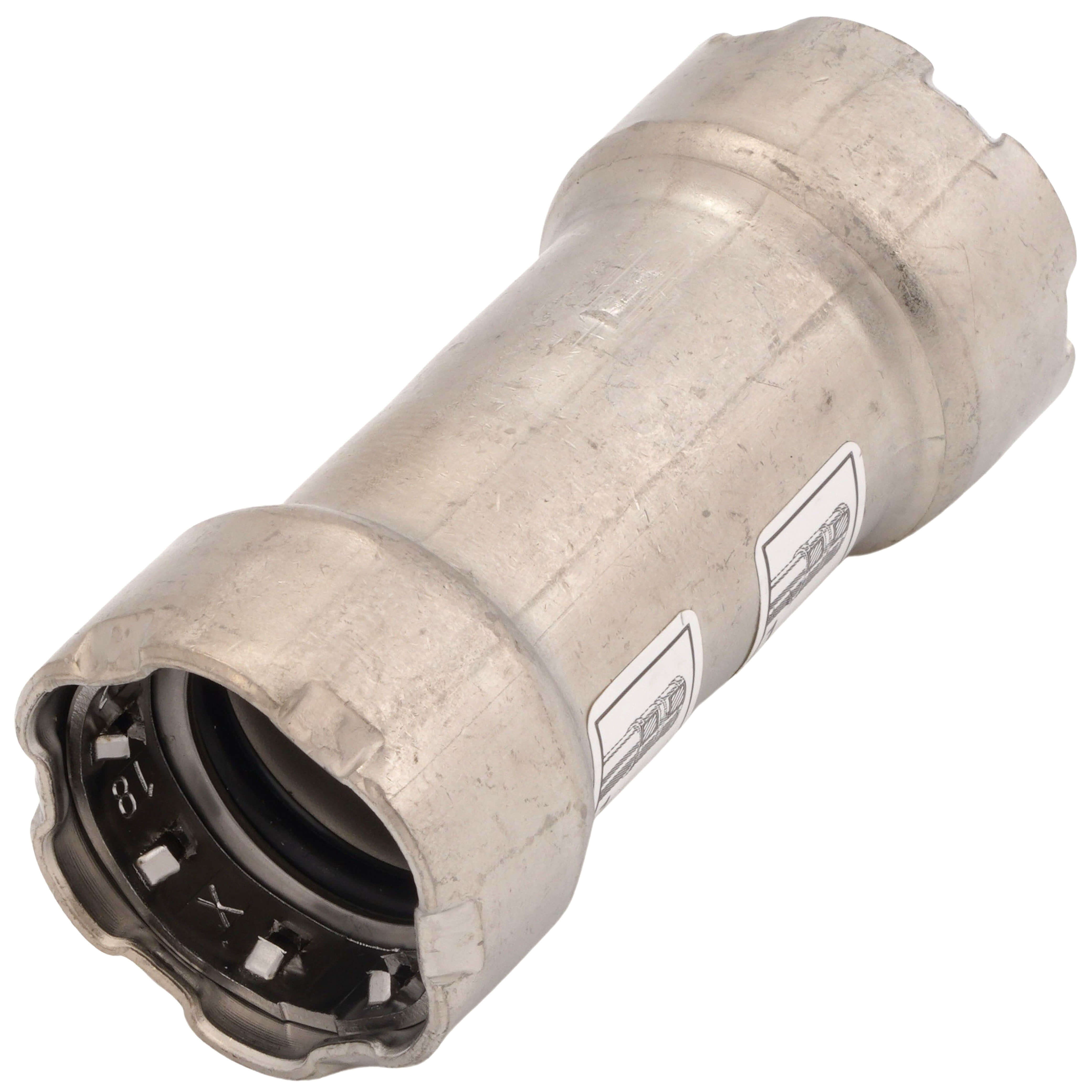

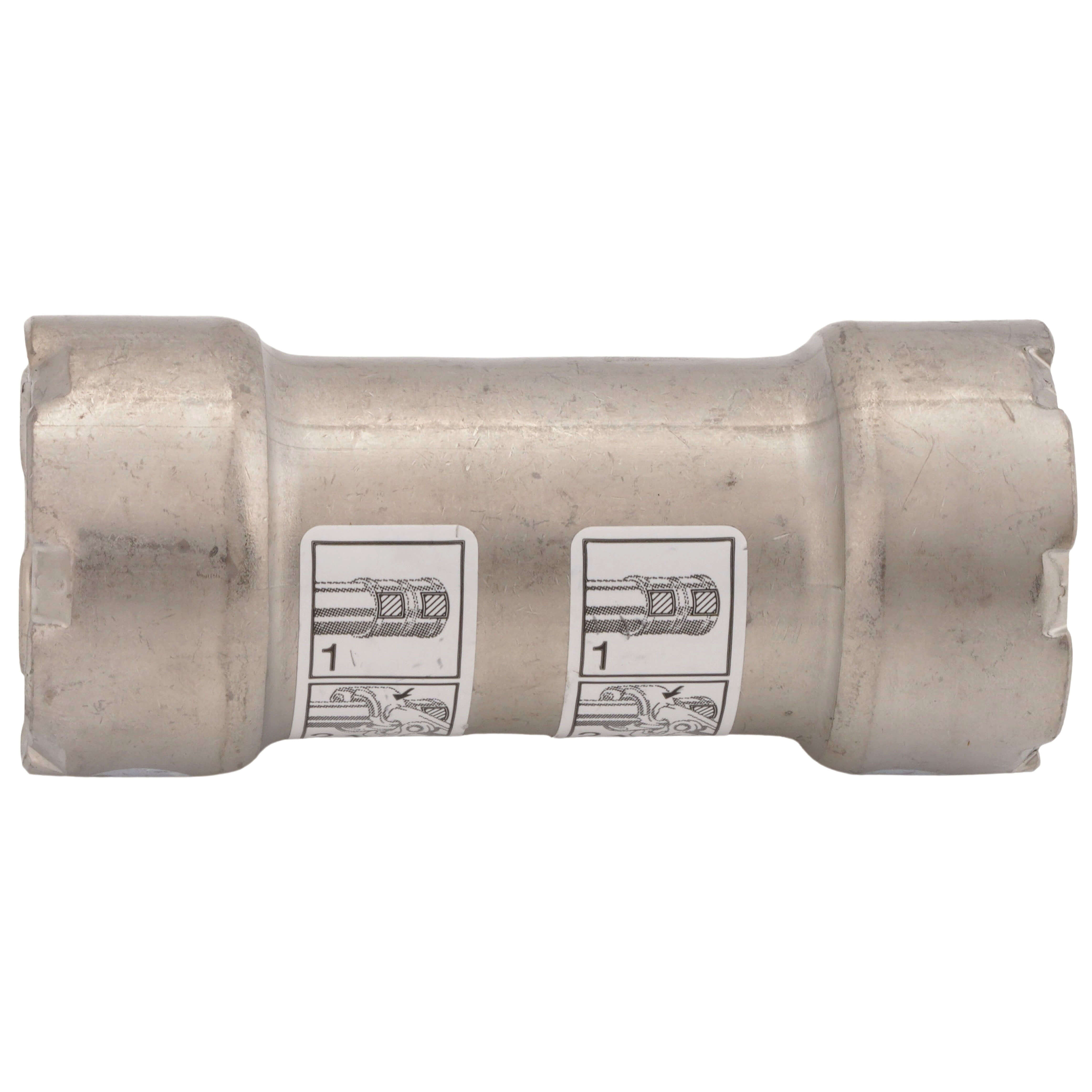

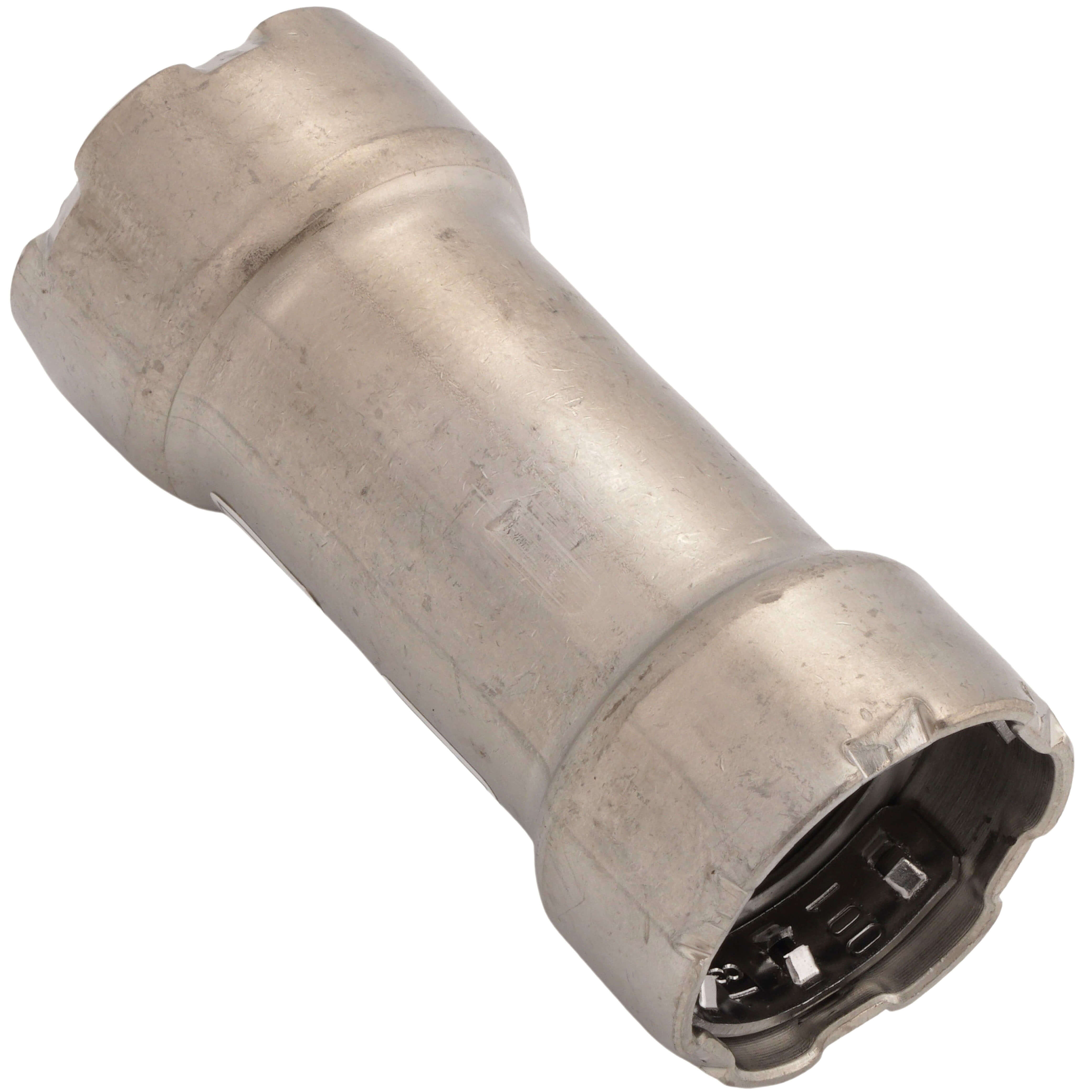

Viega 95310 MegaPress Coupling 1/2 inches x 1/2 inches

Product Description

The VIEGA 95310 MegaPress coupling is designed for use with Schedule 10 to Schedule 40 stainless steel pipe. Constructed from 304 stainless steel, it provides a reliable, leak-free connection. It is suitable for commercial and industrial applications, transporting process water, diesel fuel, lube oil, and other essential fluids or gases.

• MegaPress technology
• 304 stainless steel construction
• Suitable for various applications

Product Highlights

The Viega MegaPress system minimizes downtime, is fast and easy to use, and eliminates the need for welding.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95310
• Country of Origin: Import

Technical Specifications

• Primary Vendor Part Number: 95310
• Material: 304 stainless steel
• Size: 1/2" x 1/2"
• Nominal Size: 1/2 in
• Fitting/Connector Type: Coupler
• Temperature Rating: 0 to 250 deg F
• End Style: Press
• Includes: FKM Sealing Element
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item [Specifications]: Coupling no stop
• Pipe Size [Specifications]: 1/2 in x 1/2 in
• Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1/2 in x 1/2 in
• Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Application [Specifications]: Non-Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Connector
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Overall Length [Specifications]: 2 23/32 in
• Stop and Shape [Specifications]: Straight Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in
• End Connection Type [Specifications]: Press
• Pipe Size (Fittings) [Specifications]: 1/2" x 1/2"
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Connector
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 1/2 in
• Fitting Side B Pipe Size [Specifications]: 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 1/2 in x 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Coupling
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
• L: 2.70 in
• Weight: 0.229 lb
• Components: FKM sealing elements
• Brand: Viega
• MPN: 95310
• Applicable Standard: ASME/TSSA B31/B31.1/B31.3/B31.9, CRN 13492.5, ICC LC1002, IAPMO/UPC PS-117
• CPS COMM CODE: VM_SLIP_COUP_304
• End Connection: MegaPress x MegaPress
• Gasket Details: FKM Sealing Element
• Gasket Supplied: Yes
• Master UPC (14): 69151495310
• Material Specification: ASTM A312
• Schedule: 10 to 40 S
• Service: Gas, Water
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• VEN Product No: 95310
• Vendor UPC (12): 691514953106
• VENDOR Product No: 95310
• Vendor Short Name: 691514
