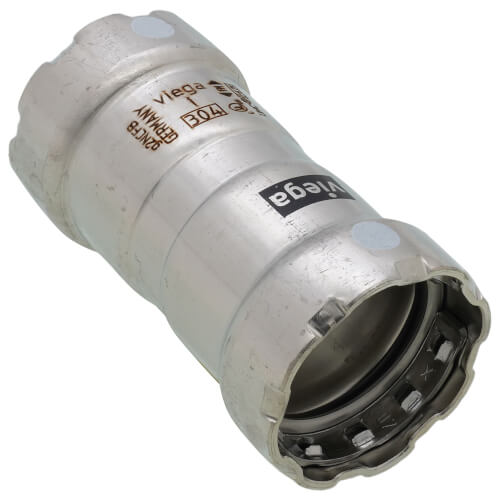

Viega 95300 MegaPress Coupling 1-1/2 inches x 1-1/2 inches

Product Description

The VIEGA 95300 MegaPress coupling is a 1-1/2" x 1-1/2" coupling made of 304 stainless steel. MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, ideal for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The Viega MegaPress system eliminates threading and welding, and is compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95300
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 95300
• Temperature Rating: 0 to 250 deg F
• Domestic/Import: Import
• Includes: FKM Sealing Element
• Material: 304 Stainless Steel
• Nominal Size: 1-1/2 in
• Pressure Rating: 200 psi
• Fitting/Connector Type: Coupler
• End Style: Press
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item [Specifications]: Coupling with Stop
• Pipe Size [Specifications]: 1 1/2 in x 1 1/2 in
• Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1-1/2 in x 1-1/2 in
• Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Application [Specifications]: Non-Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Connector
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Overall Length [Specifications]: 4 5/8 in
• Stop and Shape [Specifications]: Rolled Center Stop Straight Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1 1/2 in
• End Connection Type [Specifications]: Press
• Includes Center Stop [Specifications]: Rolled Center Stop
• Pipe Size (Fittings) [Specifications]: 1-1/2" x 1-1/2"
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Connector
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 1 1/2 in
• Fitting Side B Pipe Size [Specifications]: 1 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 1-1/2 in x 1-1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Coupling
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
• Construction: Stainless Steel
• Model: 4115
