Product Description

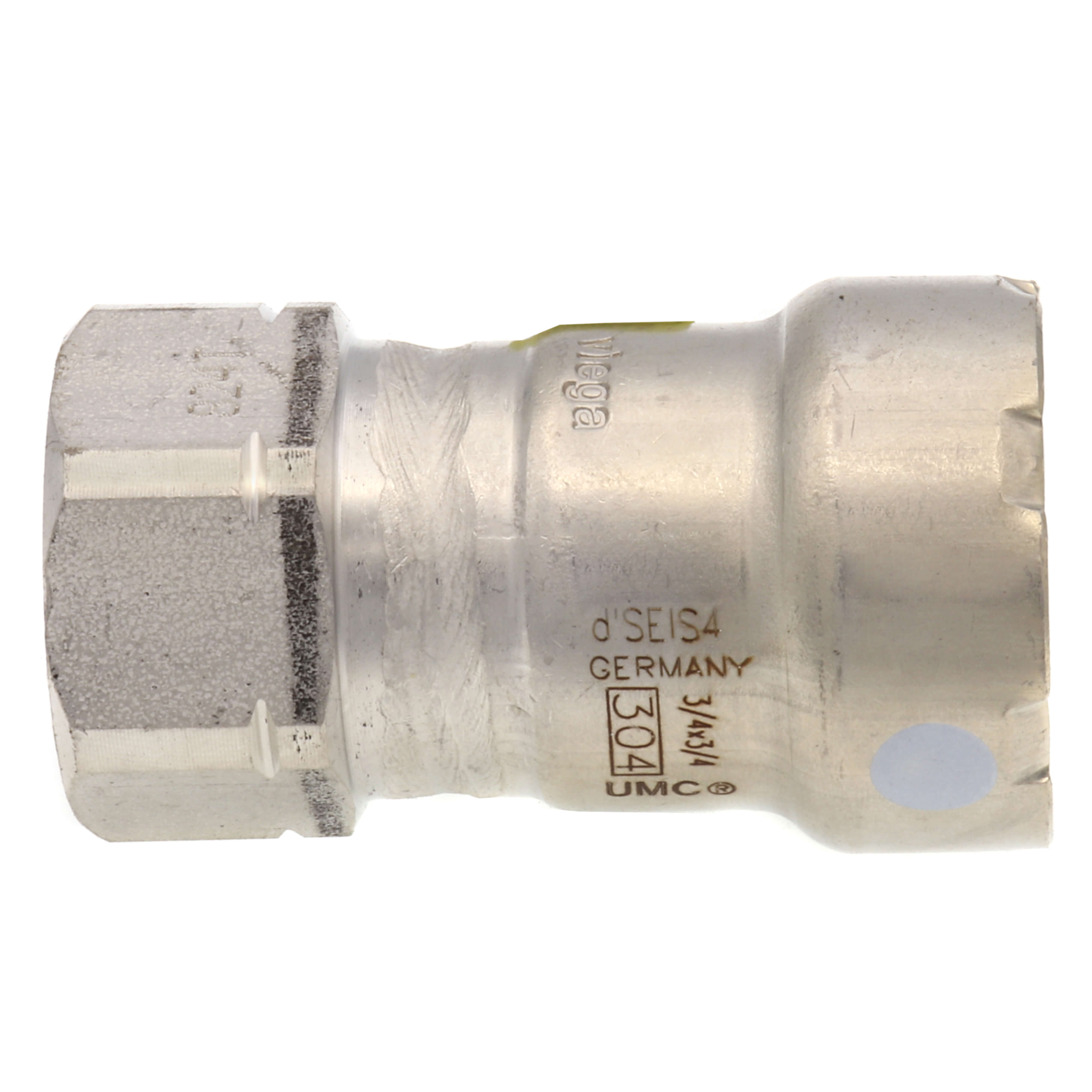

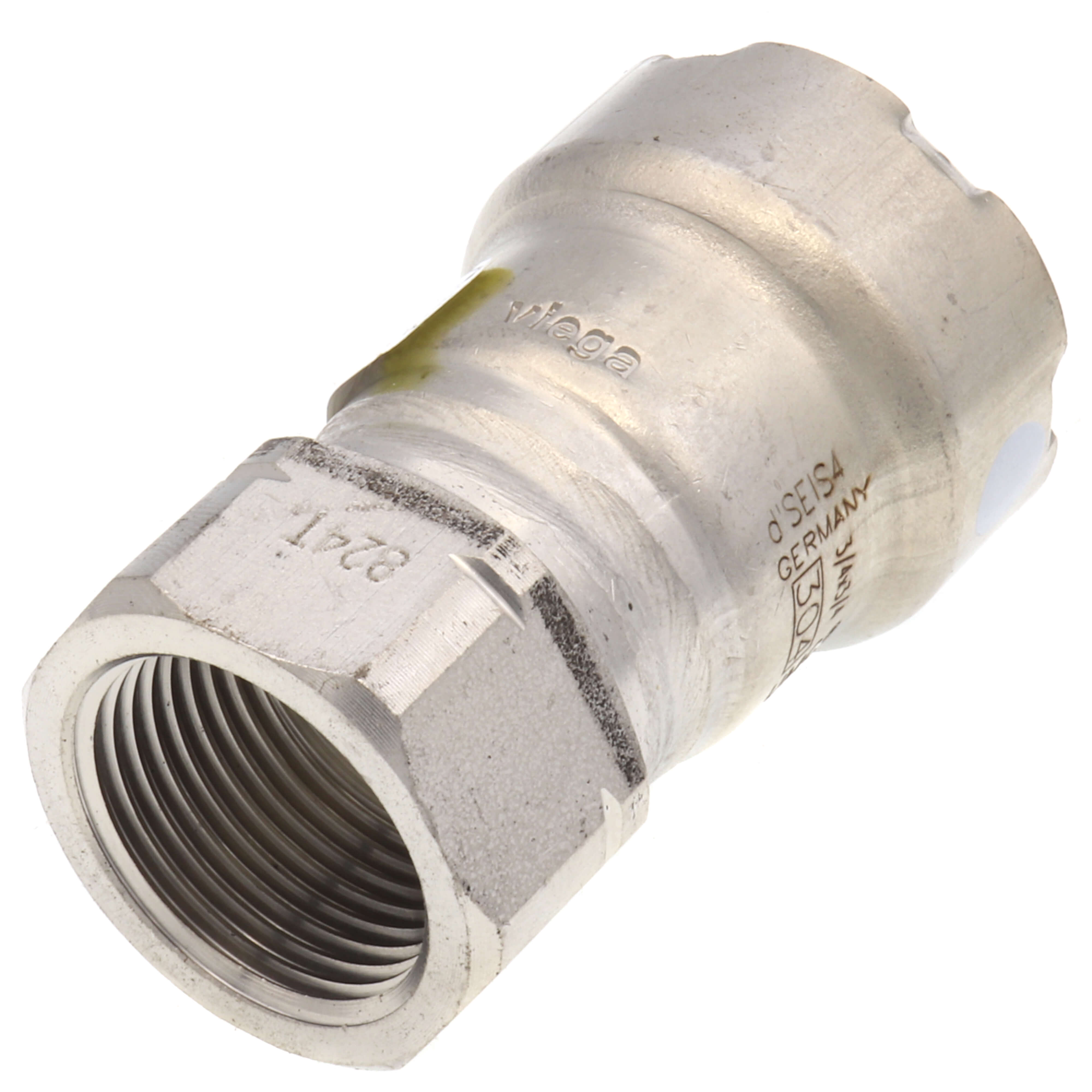

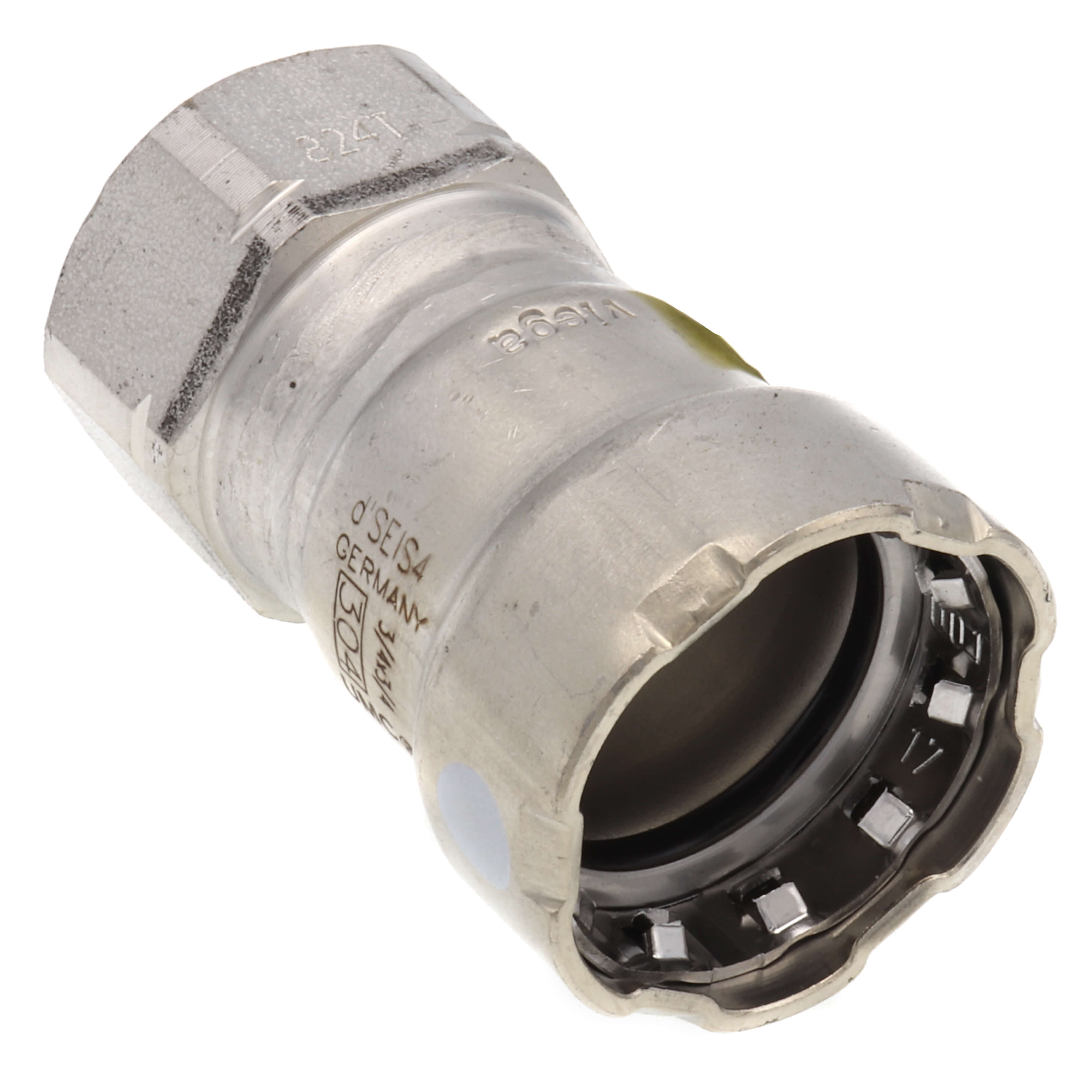

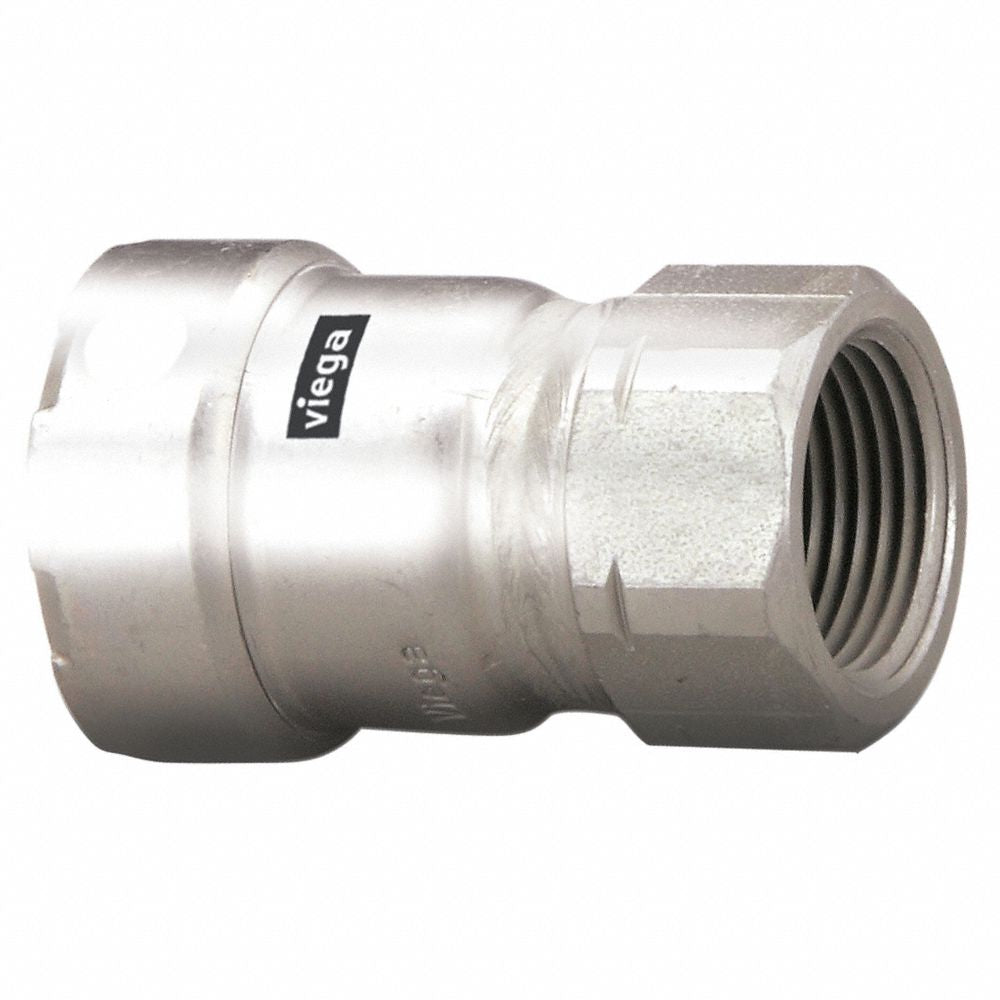

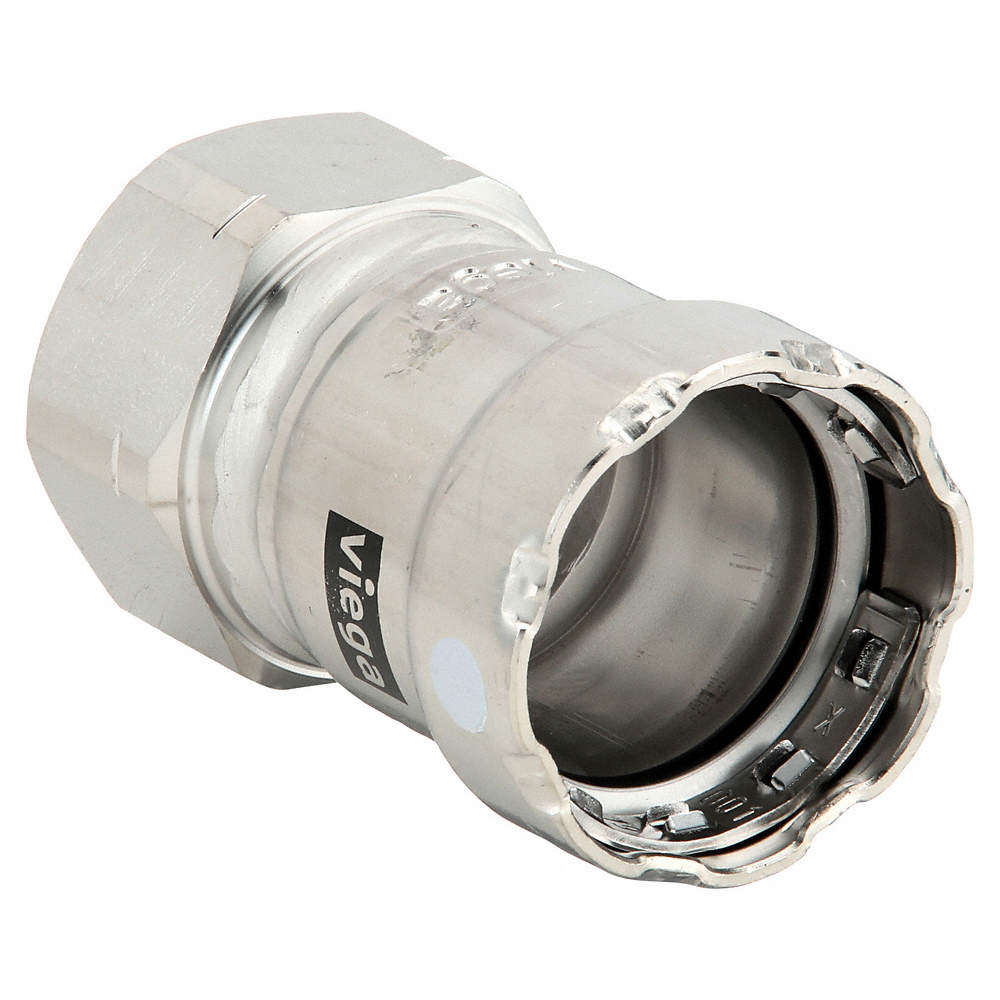

The VIEGA 95265 MegaPress adapter is a 3/4" x 3/4" fitting made from 304 stainless steel. Designed for commercial and industrial applications, this adapter utilizes a FKM sealing element for a reliable, leak-free connection. It is suitable for use with Schedule 10 to Schedule 40 stainless steel pipe.
- Made from 304 stainless steel
- Features press-fit x FNPT connection
- Maximum operating pressure of 200 psi and temperature of 250 deg F
Product Highlights
This MegaPress adapter provides a secure connection without welding or threading, saving time and effort.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 95265
-
Country of Origin: Import
Technical Specifications
-
MPN: 95265
-
Brand: VIEGA
-
Nominal Size: 3/4 in
-
Pressure Rating: 200 psi
-
Material: Stainless Steel
-
Fitting/Connector Type: Adapter
-
Temperature Rating: 0 to 250 deg F
-
End Style: Press x FNPT
-
Application: Non-Potable Water
-
Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
-
Includes: FKM Sealing Element
-
Material Grade: 304
-
O-Ring Material: FKM
-
Specific Fitting Shape: Straight Adapter
-
Maximum Operating Pressure: 200 psi
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: FNPT
-
Fitting Side A Pipe Size: 3/4 in
-
Fitting Side B Pipe Size: 3/4 in
-
Connection Type: Press connection, female pipe thread
-
Size: 3/4 in.
-
Product Type: Steel Adapters
-
Overall Length: 2 15/32 in
-
Item: Adapter
-
Thread Type: NPT
