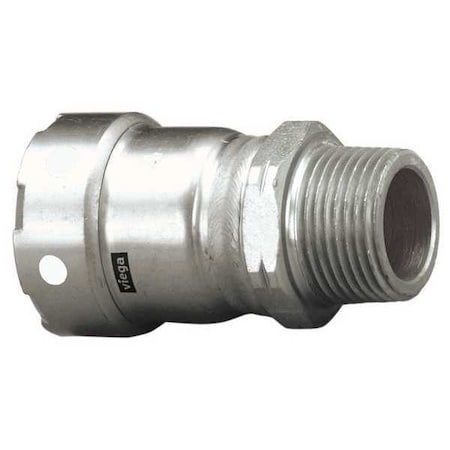

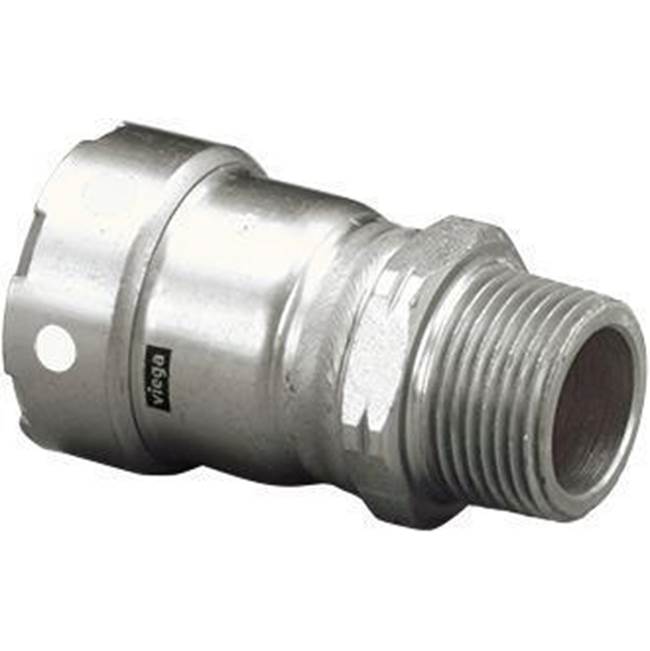

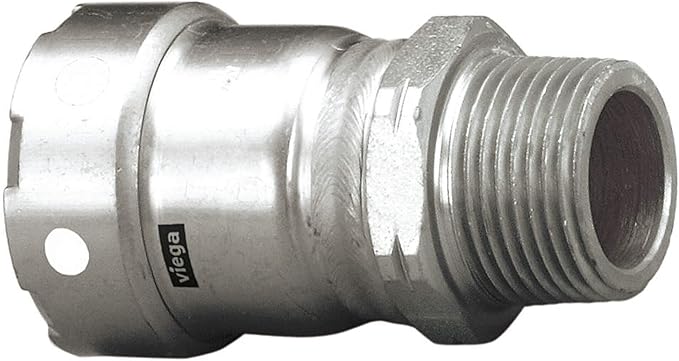

Viega 95250 MegaPress Adapter 1-1/2 inches x 1-1/2 inches

Product Description

The VIEGA 95250 MegaPress adapter is a 1-1/2" x 1-1/2" fitting made from 304 stainless steel. This adapter is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system suitable for commercial and industrial applications. It utilizes a FKM sealing element for a reliable, leak-free connection.

• Made from 304 stainless steel
• Features a Press x Male Pipe Thread fitting connection
• Maximum operating pressure of 200 psi

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections, eliminating the need for welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95250
• Country of Origin: Germany

Technical Specifications

• Fitting Connection Type: Press x Male Pipe Thread
• Max. Pressure: 200 psi
• Pipe Size - Pipe Fitting: 1-1/2 in x 1-1/2 in
• Standards: ASTM A312: Standard Specification for Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipe, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3: Process Piping, TSSA/ASME B31.9: Building Service Piping
• Temp. Range: 0 Degrees to 250 Degrees F
• Tube Fitting Material: 304 Stainless Steel
• Tube Size: 1-1/2 In. x 1-1/2 In.
• Application: Non-Potable Water
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: MNPT
• Fitting Material: Stainless Steel
• Fitting Side A Pipe Size: 1 1/2 in
• Fitting Side B Pipe Size: 1 1/2 in
• Material Grade: 304
• O-Ring Material: FKM
• Specific Fitting Shape: Straight Adapter
• Overall Length: 3 13/16 in
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Nominal Size: 1-1/2 in
• End Style: Press x MNPT
• Material: 304 Stainless Steel
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Fitting/Connector Type: Adapter
• Dimensions: 3.93 in L
• Includes: FKM Sealing Element
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item: Adapter
• Pipe Size: 1 1/2 in x 1 1/2 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Fitting Shape: Adapter
• Stop and Shape: Straight Adapter
• Connection Type: Press-Fit x MNPT
• Fitting Pipe Size: 1 1/2 in
• End Connection Type: Press, Threaded
• Pipe Size (Fittings): 1-1/2" x 1-1/2"
• Fitting Body Material: 304 Stainless Steel
• Specific Pipe Fitting Shape: Adapter
• Pipe Fitting Connection Type: Press x Male Pipe Thread
• Minimum Operating Temperature: 0 Degrees F
• Components: FKM sealing elements
• Feature: Smart Connect feature
• Brand: Viega
• Connector Type: Adapter
• Thread Type: NPT
• Manufacturer: Viega
• Unit Count: 1.0 Count
• Condition: New
• MPN: 95250
• Compatible Brand: VIEGA
• UPC: 691514952505
• Item Length: 4.000
• Depth: 2.500
• Item Height: 2.500
• Width: 2.500
• Item Width: 2.500
• Weight: 0.9800
• Length: 4.000
• Height: 2.17"
• Finish: No Finish Group
• Collection: MegaPress 304 FKM
• Online Product ID: 4106325
• Unit Of Measure: Piece
