Product Description

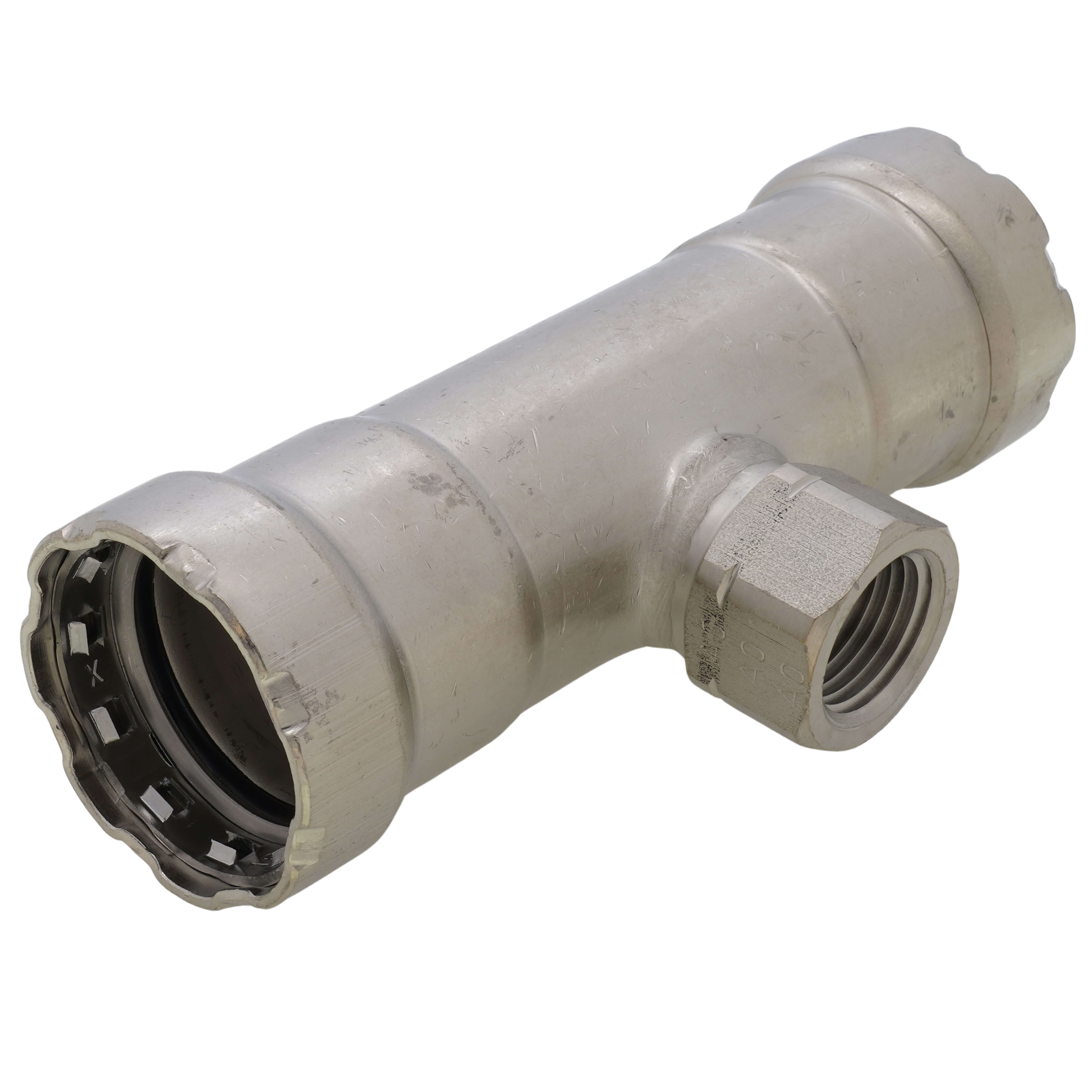

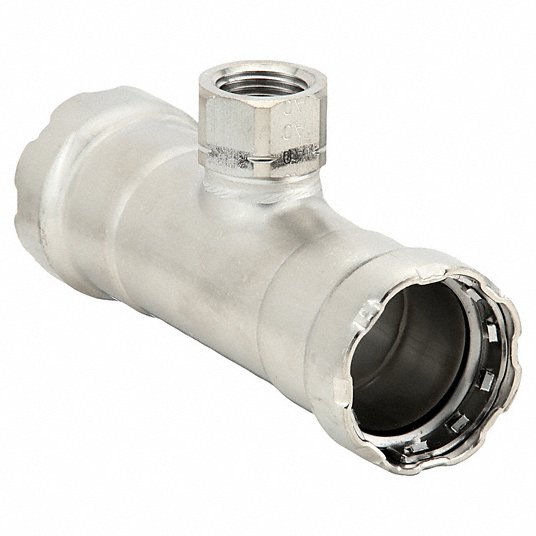

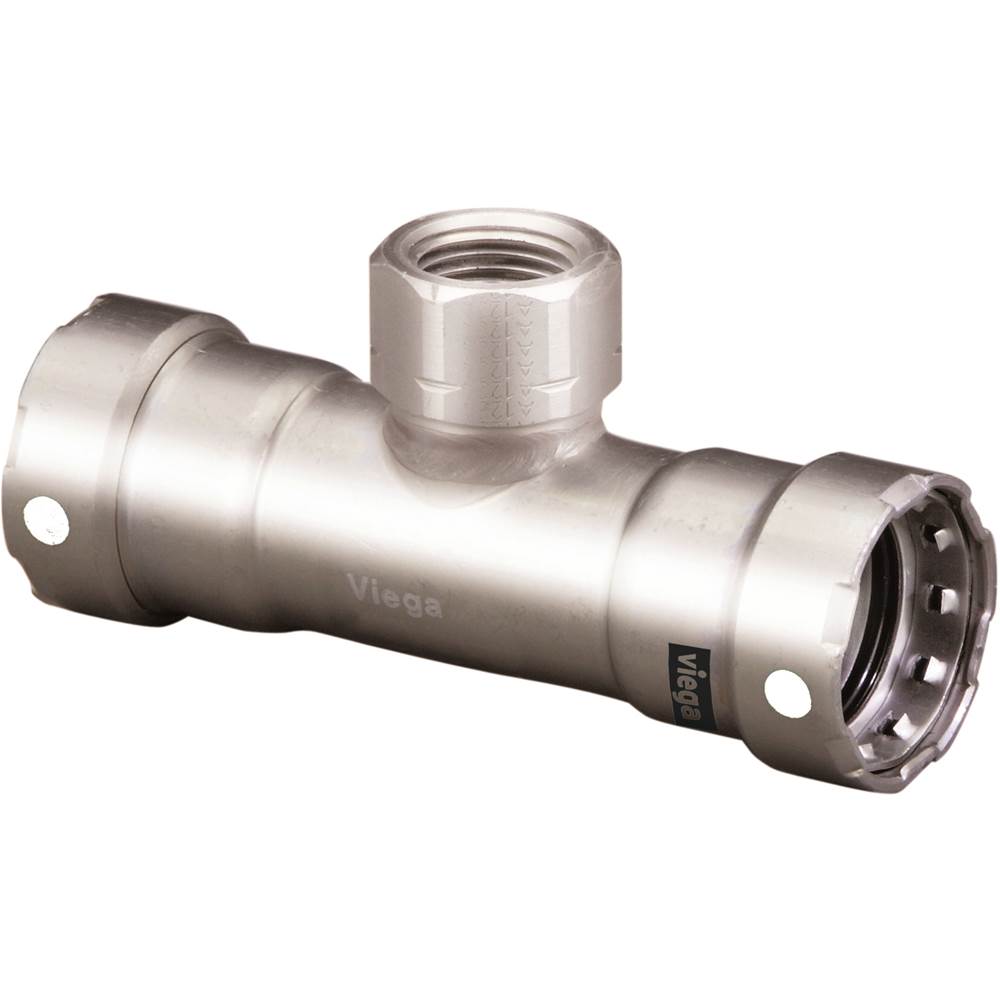

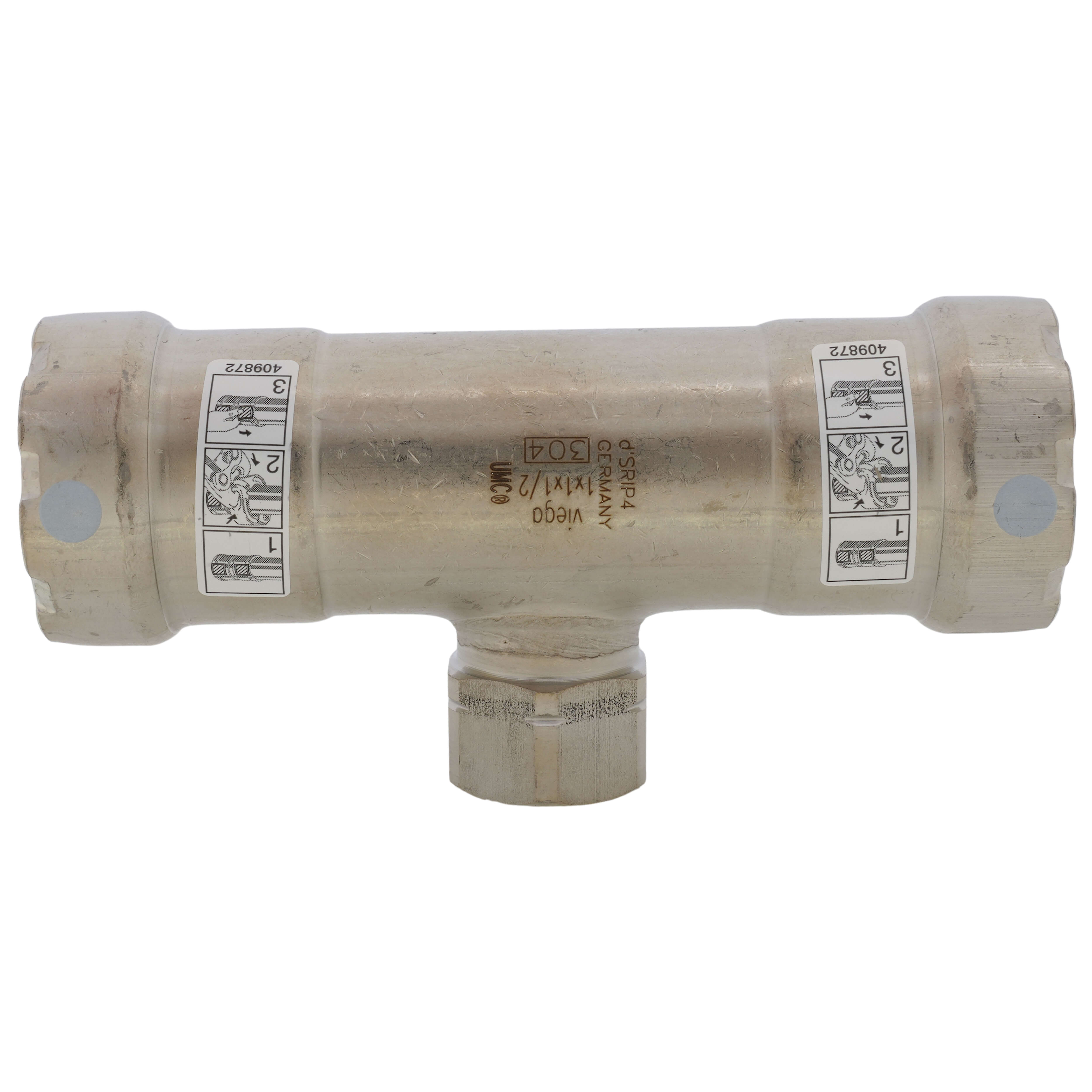

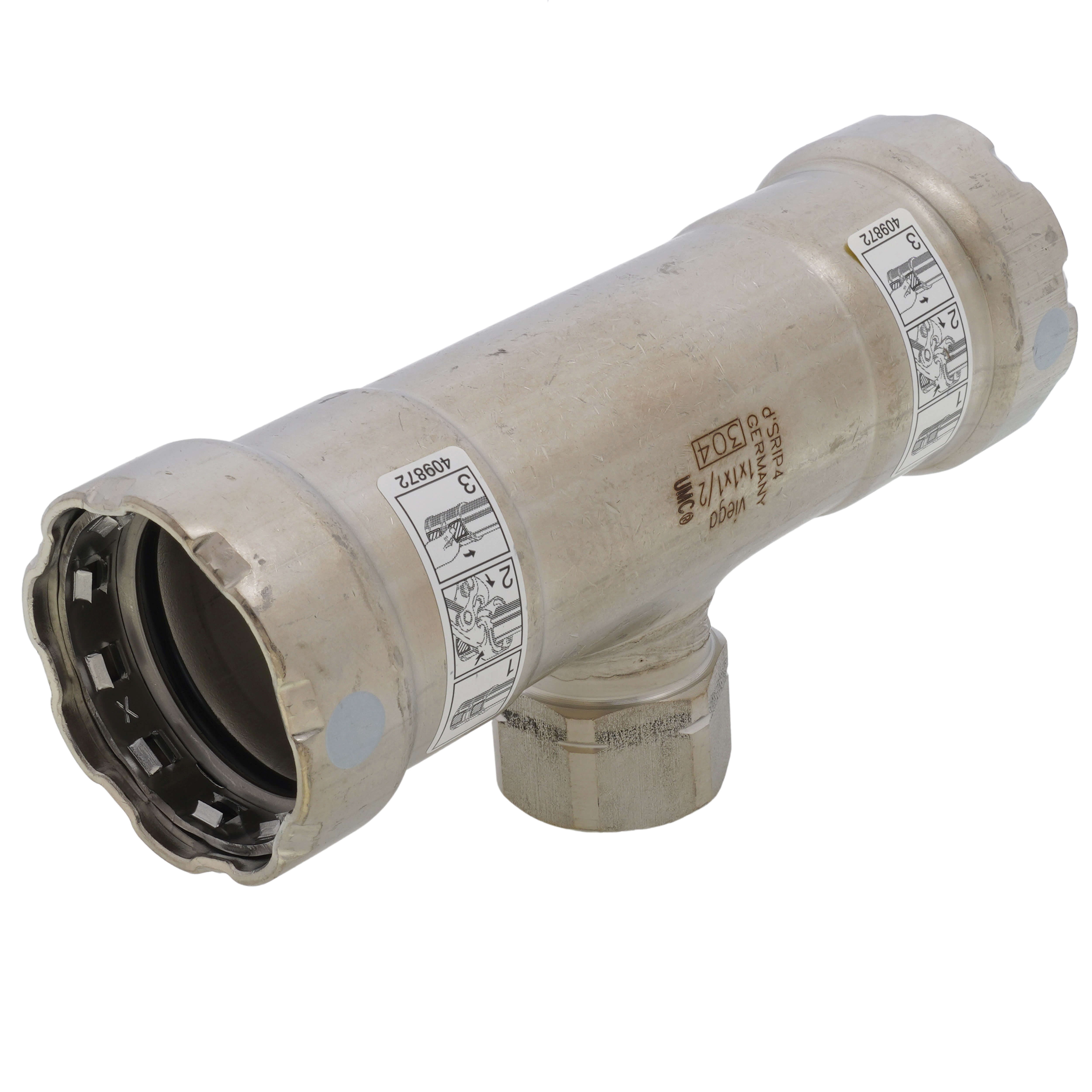

The VIEGA 95190 MegaPress Tee is a 1" x 1" x 1/2" tee fitting made of 304 stainless steel. Viega MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, ideal for commercial and industrial applications. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.
- Patented Viega Smart Connect makes secure connection in less than 7 seconds
- Minimizes system downtime by allowing for wet connection
- No welding, grinding or heavy equipment needed
Product Highlights
The MegaPress Tee is fast and easy to use, eliminating threading and welding. It is compatible with existing press tools.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 95190
-
Country of Origin: Germany
Technical Specifications
-
MPN: 95190
-
Brand: VIEGA
-
Material: 304 Stainless Steel
-
Pressure Rating: 200 psi
-
Temperature Rating: 0 to 250 deg F
-
Nominal Size: 1 x 1 x 1/2 in
-
End Style: Press x Press x FNPT
-
Includes: FKM Sealing Element
-
Fitting/Connector Type: Tee
-
Application: Commercial and Industrial
-
Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
-
Fitting Shape: Tee
-
Max. Pressure: 200 psi
-
Material Grade: 304
-
Overall Length: 5 5/32 in
-
Connection Type: Press-Fit x Press-Fit x FPT
-
O-Ring Material: FKM
-
Fitting Material: Stainless Steel
-
Fitting Pipe Size: 1/2 in, 1 in
-
End Connection Type: Press, Threaded
-
Pipe Size (Fittings): 1" x 1" x 1/2"
-
Fitting Body Material: 304 Stainless Steel
-
Tube Fitting Material: 304 Stainless Steel
-
Specific Fitting Shape: Adapter Tee
-
Fitting Connection Type: Press x Press x Female Pipe Thread
-
Fitting Side A Pipe Size: 1 in
-
Fitting Side B Pipe Size: 1 in
-
Fitting Side C Pipe Size: 1/2 in
-
Maximum Operating Pressure: 200 psi
-
Specific Pipe Fitting Shape: Tee
-
Pipe Fitting Connection Type: Press x Press x Female Pipe Thread
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: Press-fit
-
Fitting Side C Connection Type: FNPT
-
Product Type: Tee
-
Length: 5.26"
-
Width: 2.59"
-
Height: 1.78"
-
Size 1: 1
-
Size 2: 1
-
Size 3: 1/2
-
L: 2.57 in
-
L1: 1.73 in
-
A: 1.23 in
-
A1: 1.19 in
-
Weight: 0.862 lb
-
UPC: 691514951904
-
Manufacturer: VIEGA
-
Country of Origin: United States
-
Temp. Range: 0 Degrees to 250 Degrees F
-
Application [Specifications]: Non-Potable Water
-
Standards: ASTM A312; CRN 13492.5 A/B; IAPMO PS 117; ICC LC1002; TSSA/ASME B31; TSSA/ASME B31.1; TSSA/ASME B31.3; TSSA/ASME B31.9
-
Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
-
Sub-brand: Mega Press
-
Fittings: Fitting Shape Tee (Run x Run x Branch)
-
Fitting Side 1 Connection Type: Press-fit
-
For Media Type: Non-Potable Water
-
Type: Press Tube Fittings
