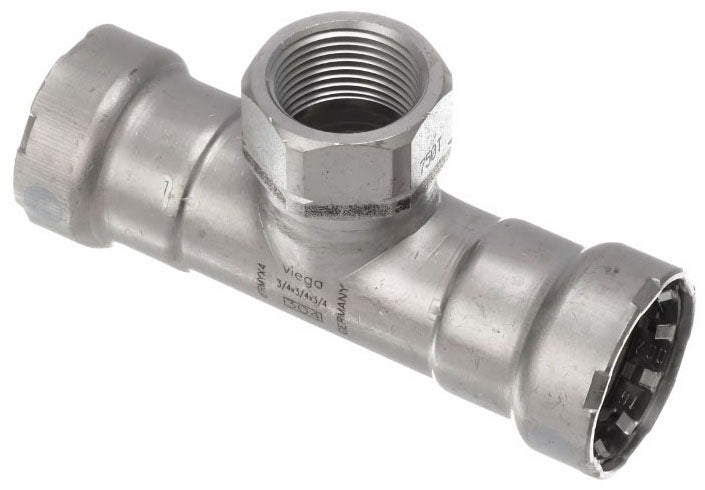

Viega 95185 Megapress SS304 Press X Female Tee 3/4 in

Product Description

The VIEGA 95185 is a 3/4-inch MegaPress reducing tee fitting manufactured from 304 stainless steel with an FKM sealing element. It provides a press-style connection on two ports and a female NPT threaded connection on the third, allowing direct integration with threaded components in a stainless steel piping system. Designed for the VIEGA MegaPress system, this fitting is installed without open flame using a compatible press tool, reducing installation time and fire risk in occupied or sensitive environments. Licensed plumbers working on commercial and light industrial piping systems are the primary installers of this fitting.

The 95185 is suited for use in commercial and light industrial piping systems where 304 stainless steel is specified for corrosion resistance or sanitary requirements. The reducing tee configuration allows a branch takeoff from a run pipe while transitioning to a threaded port, making it practical for connecting instrumentation, valves, or threaded service connections to a press-system main line. It is sized at 3/4 inch across all ports and is part of the MegaPress 4117.2 series.

Key Features

• 304 stainless steel body for corrosion resistance in demanding piping environments
• FKM sealing element rated for a broad range of fluids and temperatures
• Press x press x female thread (PXPXF) configuration for threaded branch connections
• No-flame installation using a compatible MegaPress press tool
• Part of the MegaPress 4117.2 system series
• Reducing tee design for direct threaded takeoffs from a press-system run

Compatibility

Designed for use with the VIEGA MegaPress press fitting system in 3/4-inch stainless steel piping applications.

Installation Notes

Installation requires a VIEGA-compatible press tool with the correct jaw or ring set for MegaPress fittings. Shut off and depressurize the piping system and verify the line is dry before pressing. Follow applicable plumbing codes including IPC requirements for stainless steel press fittings. Do not use pipe wrenches or excessive force on the press ends, as mechanical damage will compromise the seal.

Technical Specifications

• Fitting Material: Stainless Steel 304
• Fitting Size: 3/4 inches
• Connection Type: Press x Press x Female Thread (PXPXF)
• Seal Material: FKM
• Series: MegaPress 4117.2
• Type: Reducing Tee

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95185
