Viega 95160 MegaPress Tee 2 inches x 2 inches x 1/2 inches

Product Description

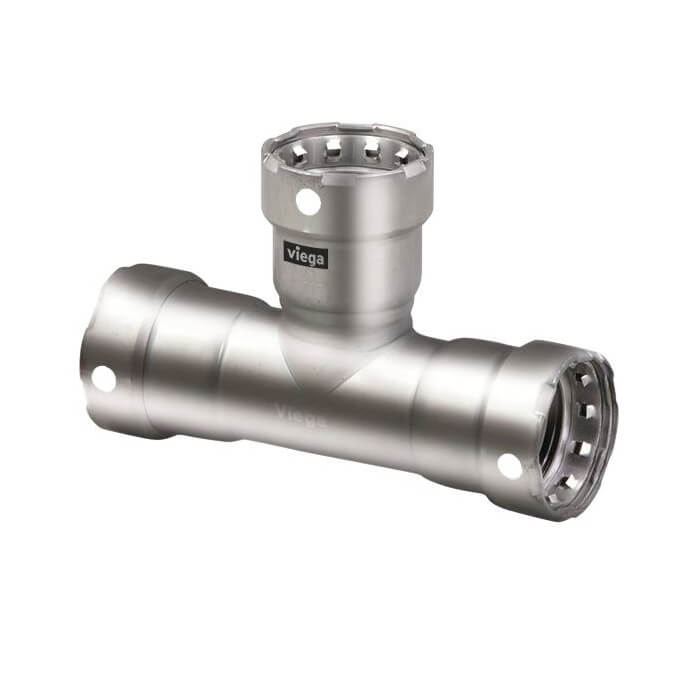

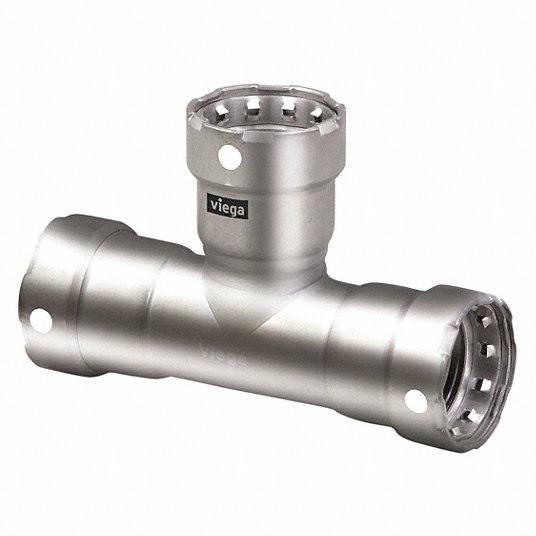

The Viega 95160 MegaPress tee is a 2" x 2" x 1/2" fitting made of 304 stainless steel. Viega MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, ideal for commercial and industrial applications. These fittings utilize an FKM sealing element for a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds.
• Minimizes system downtime by allowing for wet connection.
• No welding, grinding, or heavy equipment is needed.

Product Highlights

The Viega MegaPress system eliminates threading and welding, offering a fast, easy-to-use, and compatible solution for various essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95160
• Country of Origin: Germany

Technical Specifications

• Nominal Size: 2 x 2 x 1/2 in
• Material: 304 Stainless Steel
• End Style: Press
• Temperature Rating: 0 to 250 deg F
• Fitting/Connector Type: Tee
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Includes: FKM Sealing Element
• O-Ring Material: FKM
• Fitting Shape: Tee
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Fitting Material: Stainless Steel
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Pipe Size: 2 in
• Fitting Side C Pipe Size: 1/2 in
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: Press-Fit
• Country of Origin: Germany
• Seal Material: FKM
• Standards: ASTM A312; CRN 13492.5 A/B; IAPMO PS 117; ICC LC1002; TSSA/ASME B31; TSSA/ASME B31.1; TSSA/ASME B31.3; TSSA/ASME B31.9
• Connection Type: Press
• Components: FKM sealing elements
• Smart Connect feature: Yes
• MPN: 95160
• Fitting Type: Tee
• Sealing Element: FKM
• Type: Reducing
• For Media Type: Non-Potable Water
• Overall Length: 7-9/16 in
