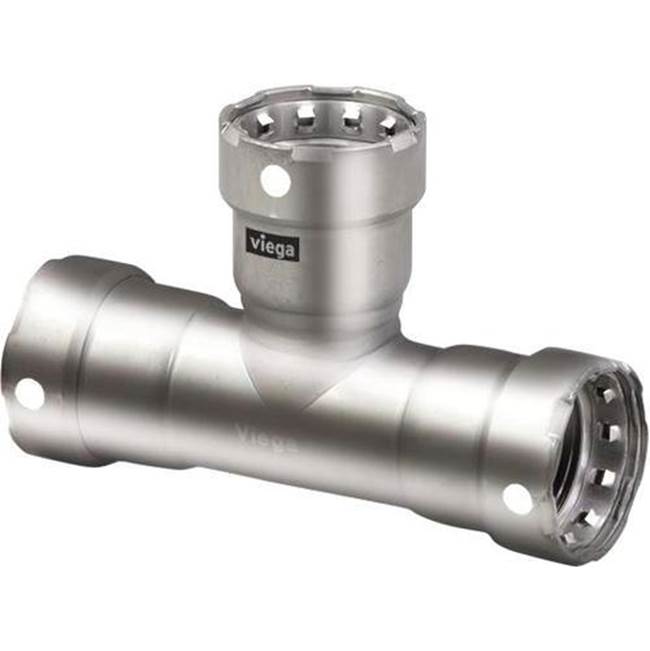

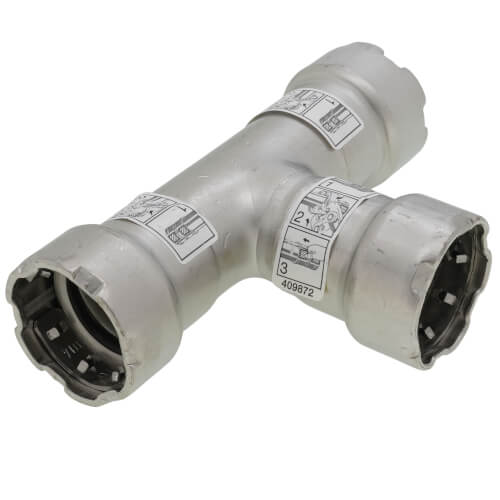

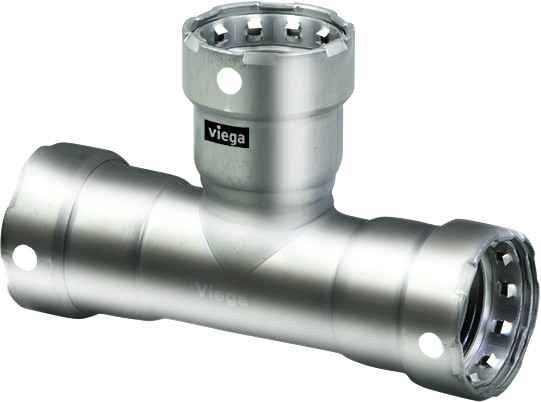

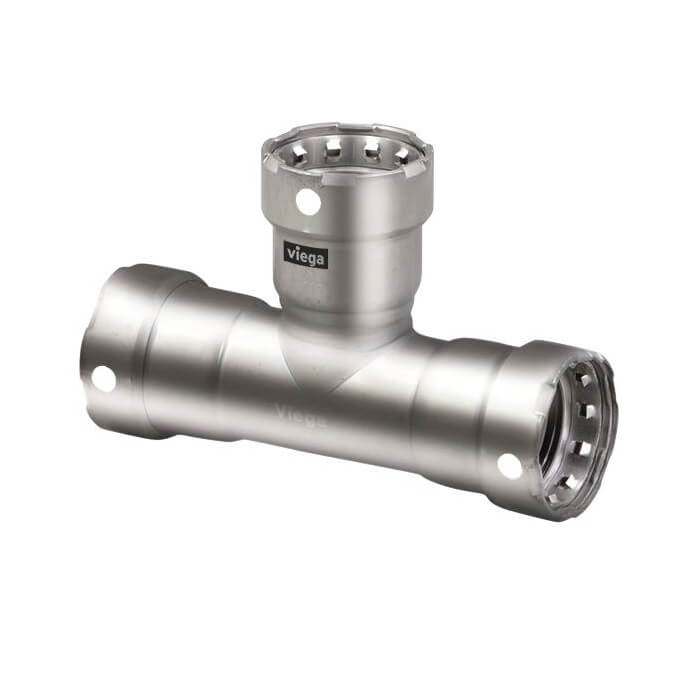

Viega 95145 MegaPress 304 Stainless Steel Tee 1-1/2 inches x 1-1/2 inches x 1/2 inches

Product Description

The VIEGA 95145 MegaPress Tee is a 304 stainless steel fitting designed for commercial and industrial applications. Viega MegaPress Stainless 304 fittings are used with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system. These fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection for transporting various fluids and gases.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The MegaPress system eliminates the need for welding, threading, or heavy equipment, offering a fast and easy-to-use solution for secure press connections.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95145
• Country of Origin: Germany

Technical Specifications

• Material: 304 Stainless Steel
• End Style: Press
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Nominal Size: 1-1/2 x 1-1/2 x 1/2 in
• Fitting/Connector Type: Tee
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Includes: FKM Sealing Element
• Fitting Shape: Tee
• Material Grade: 304
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Connection Type: Press-Fit x Press-Fit x Press-Fit
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Country of Origin (subject to change): Germany
• Product Type: Tee
• Length: 6.95"
• Width: 3.75"
• Height: 2.44"
• Product Dimension: 1-1/2'' x 1-1/2'' x 1/2''
• Model: 4118
• Size: 1-1/2 X 1-1/2 X 1/2 in
• Overall Length: 6 7/8 in
• Fitting Side A Pipe Size: 1 1/2 in
• Fitting Side B Pipe Size: 1 1/2 in
• Fitting Side C Pipe Size: 1/2 in
• L: 3.44 in
• L1: 2.51 in
• A: 1.57 in
• A1: 1.44 in
