Viega 95140 MegaPress Tee 1 inches x 1 inches x 3/4 inches

Product Description

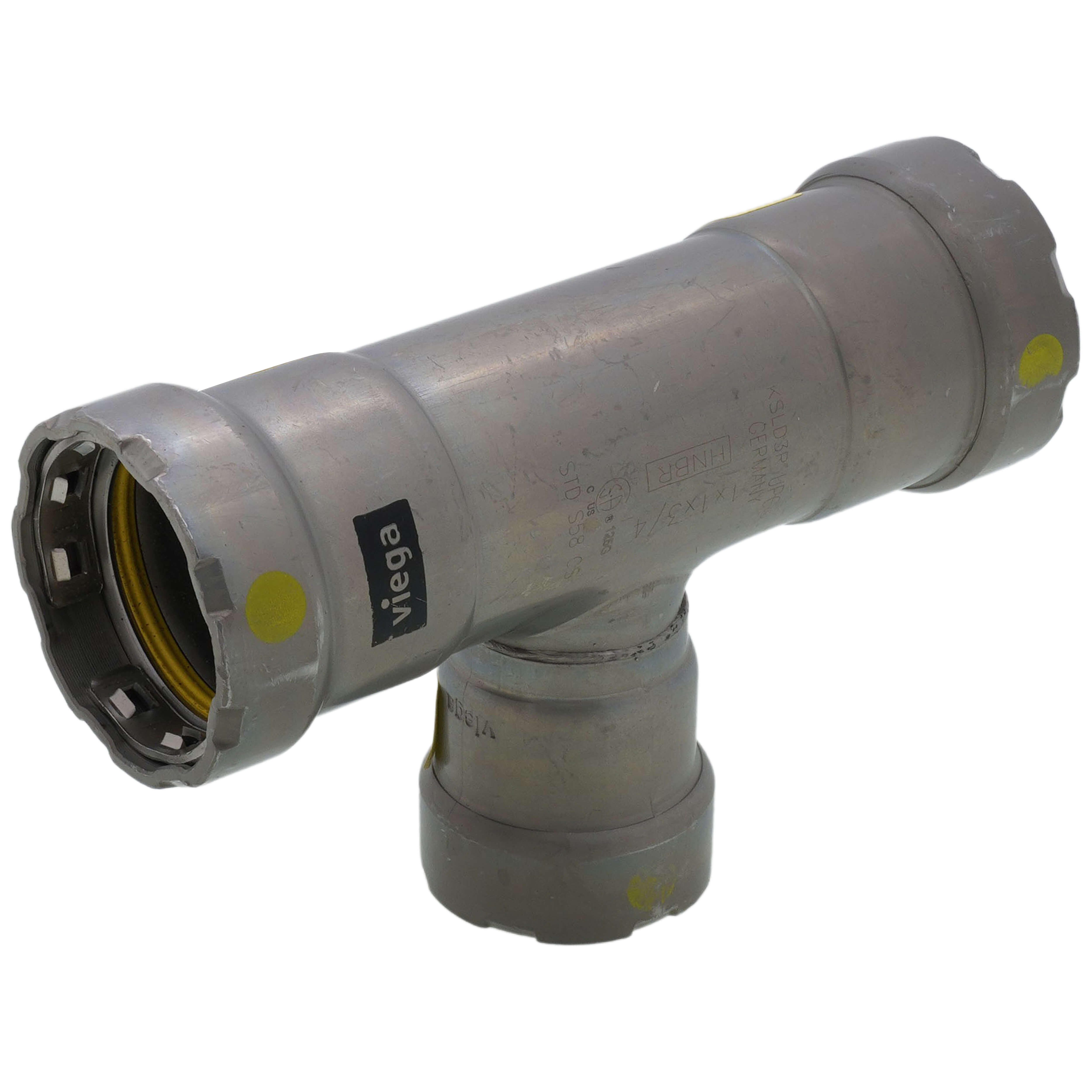

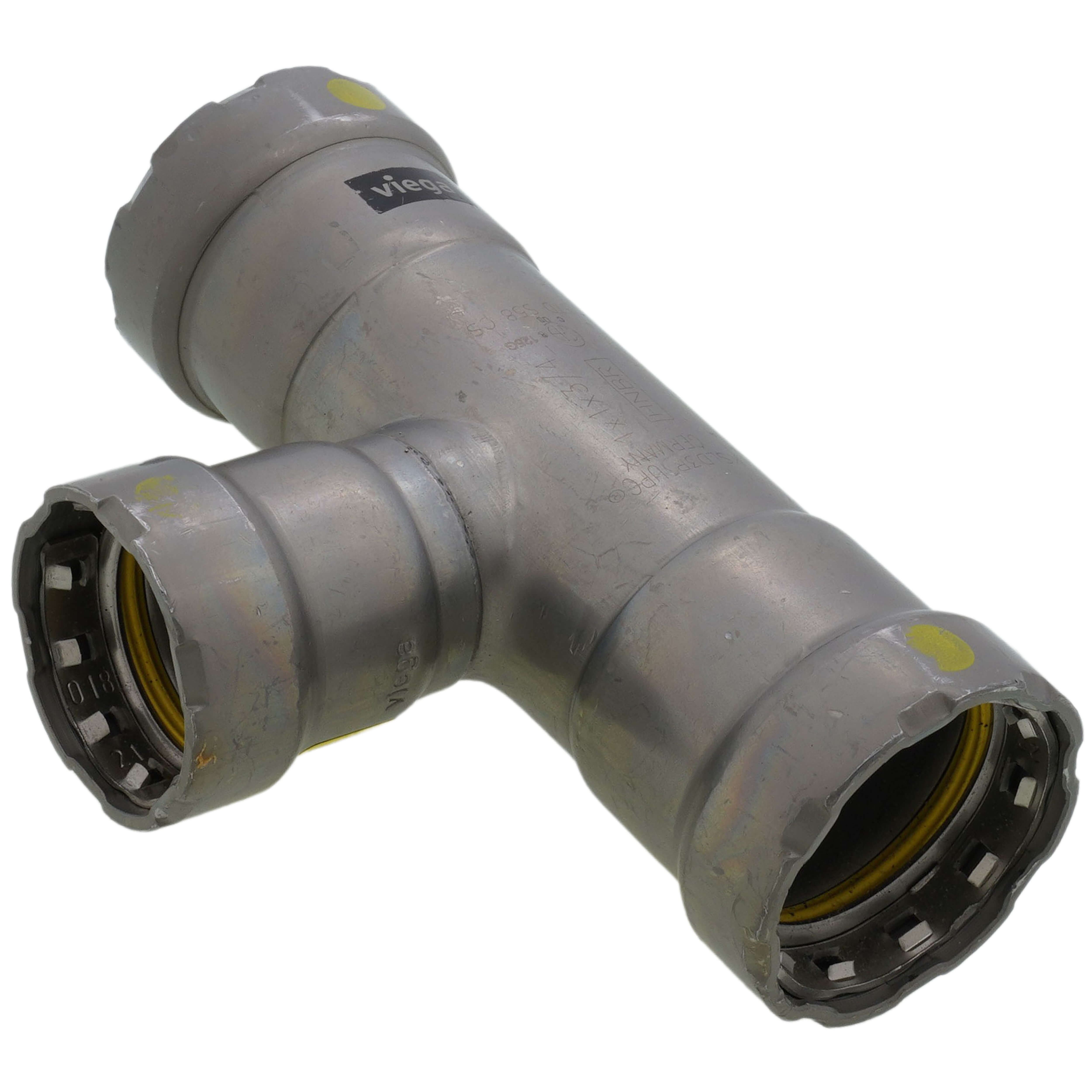

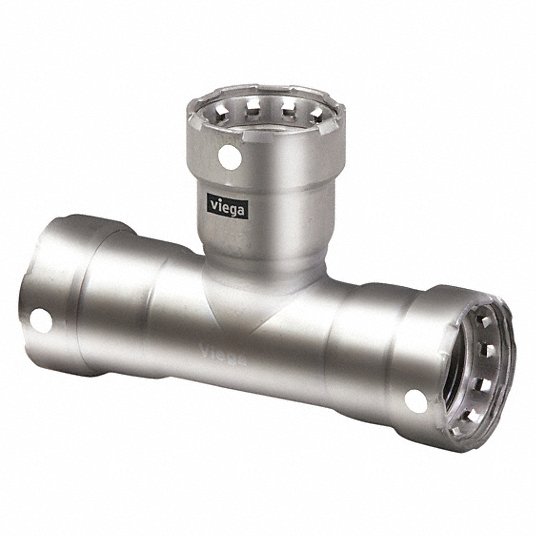

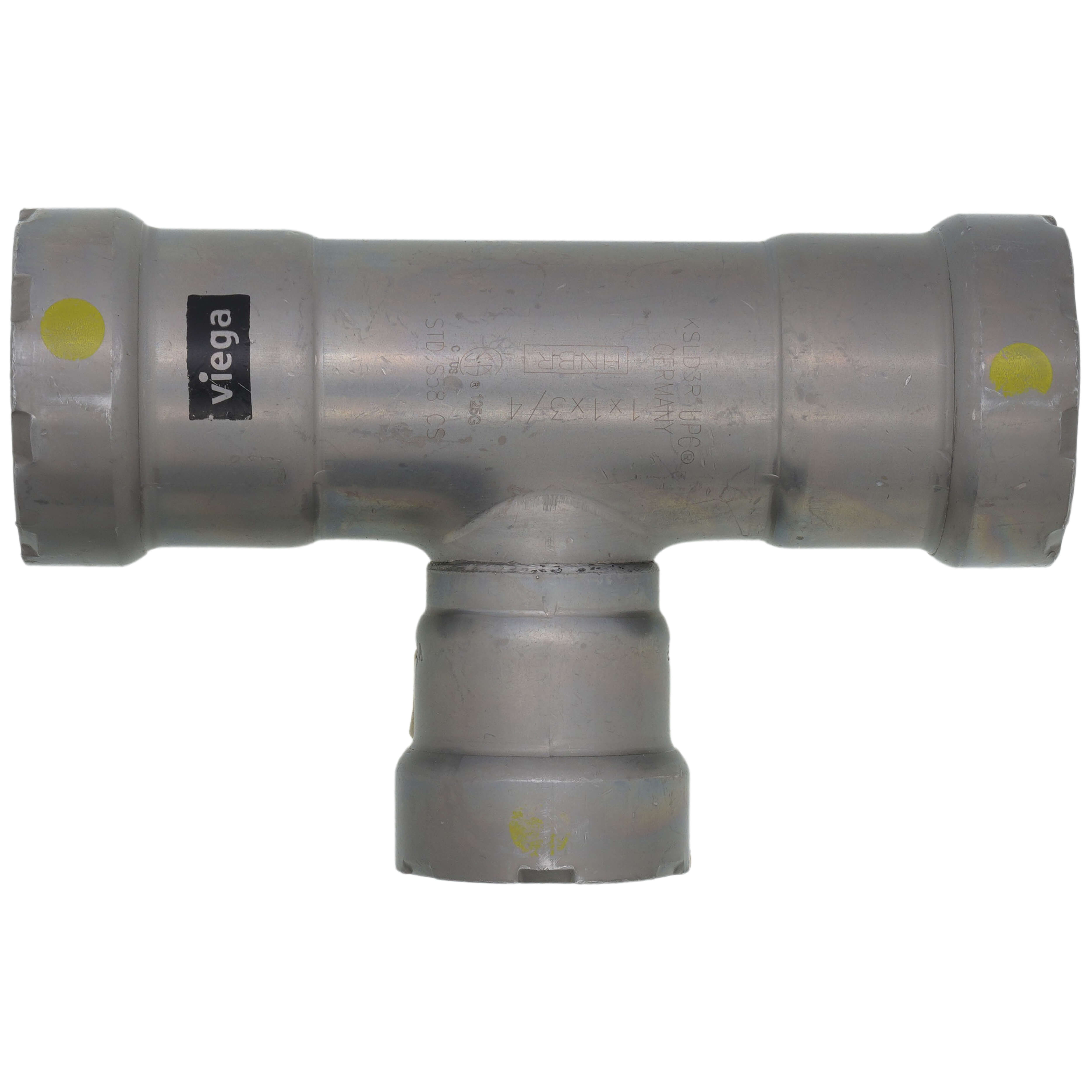

The VIEGA 95140 MegaPress tee is a 1" x 1" x 3/4" 304 stainless steel fitting designed for commercial and industrial applications. Viega MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system. It utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds.
• Minimizes system downtime by allowing for wet connection.
• No welding, grinding, or heavy equipment needed.

Product Highlights

The MegaPress system eliminates threading and welding, and is compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95140
• Country of Origin: Germany

Technical Specifications

• Material: 304 Stainless Steel
• Fitting Type: Tee
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Connection Type: MegaPress x MegaPress x MegaPress
• Sealing Element: FKM
• Warranty: Limited
• Includes: FKM Sealing Element
• Nominal Size: 1 x 1 x 3/4 in
• Temperature Rating: 0 to 250 deg F
• End Style: Press
• Domestic/Import: Import
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Fitting Shape: Tee (Run x Run x Branch)
• O-Ring Material: FKM
