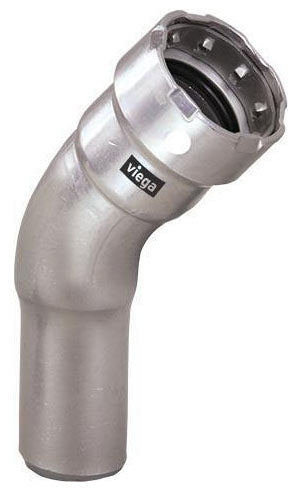

Viega 95095 Megapress 304SS Street 45 Elbow 1-1/2 in

Product Description

The VIEGA 95095 is a 1-1/2 inch MegaPress street 45-degree elbow fitting constructed from 304 stainless steel with an FKM sealing element. It is designed for use in press-fit piping systems where a directional change of 45 degrees is needed with one press end and one male pipe connection on the other. The fitting eliminates the need for soldering, threading, or open flame, making it a fast and reliable choice for stainless steel piping assemblies. Licensed plumbers and pipefitters install this fitting using a compatible press tool as part of MegaPress system installations.

This fitting is suited for commercial and industrial piping applications where 304 stainless steel construction is required for corrosion resistance. The street configuration allows the fitting to connect directly into another fitting socket without an additional pipe nipple, saving space in tight installations. It is commonly used in mechanical rooms, process piping, and hydronic systems where the MegaPress system is specified. Installation requires a press tool approved for the MegaPress system.

Key Features

• 304 stainless steel construction for corrosion resistance in demanding environments
• Street fitting design allows direct socket-to-socket connections without added nipples
• 45-degree elbow geometry for directional changes in confined piping runs
• FKM sealing element suitable for a range of fluid and temperature applications
• Press connection eliminates open flame, threading, or soldering during installation
• Compatible with the MegaPress press-fit system per ASTM 4126.1

Compatibility

Designed for use within the VIEGA MegaPress press-fit piping system. Requires a press tool rated and approved for MegaPress fittings. Fitting conforms to ASTM 4126.1 standards for stainless steel press fittings.

Installation Notes

Installation must be performed by a licensed plumber or pipefitter using a press tool compatible with the MegaPress system. Depressurize and drain the piping system fully before cutting into an existing line. Do not use this fitting with press tools or jaw sets not rated for MegaPress stainless steel fittings, as incomplete crimps can result in joint failure. Follow applicable IPC and local plumbing code requirements for stainless steel press-fit systems.

Technical Specifications

• Fitting Size: 1-1/2 inches
• Elbow Angle: 45 degrees
• Fitting Material: Stainless Steel 304
• Seal Material: FKM
• Connection Type: Press x Press Street
• System: MegaPress
• Standard: ASTM 4126.1

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95095
