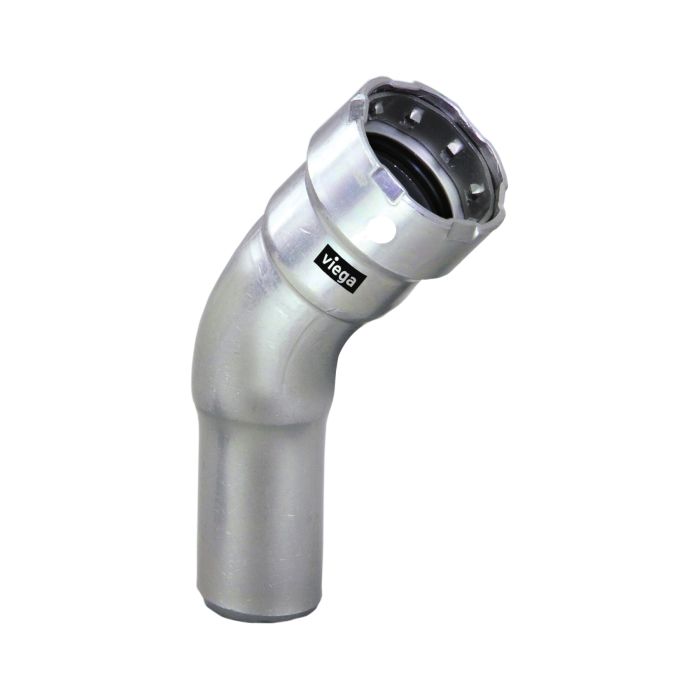

Viega 95090 MegaPress 45 street elbow, 1 inches x 1 inches

Product Description

The VIEGA 95090 MegaPress 45 street elbow is a 1" x 1" fitting made from 304 stainless steel. Designed for commercial and industrial applications, this fitting utilizes a FKM sealing element to provide a reliable, leak-free connection. It is compatible with existing press tools and eliminates the need for welding, grinding, or heavy equipment.

• Made from 304 stainless steel.
• Features a press x FTG end style.
• Maximum operating pressure of 200 psi.

Product Highlights

The Viega MegaPress system minimizes downtime and is fast and easy to use for secure connections in less than 7 seconds.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95090
• Country of Origin: Germany

Technical Specifications

• Brand: VIEGA
• MPN: 95090
• Angle: 45 deg
• Pressure Rating: 200 psi
• End Style: Press x FTG
• Includes: FKM Sealing Element
• Fitting/Connector Type: 45 deg Elbow
• Nominal Size: 1 in
• Temperature Rating: 0 to 250 deg F
• Domestic/Import: Import
• Material: 304 Stainless Steel
• Application: Non-Potable Water
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Tube Size: 1 in x 1 in
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Max. Pressure: 200 psi
• Fitting Shape: Elbow
• Material Grade: 304
• Connection Type: Press-Fit x FTG
• O-Ring Material: FKM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1 in
• Specific Fitting Shape: 45 Degrees Street Elbow Adapter
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FTG
• Pipe Size: 1 in
• Temp. Range: 0 Degrees to 250 Degrees F
• Specific Pipe Fitting Shape: 45 Degrees Street Elbow
• Pipe Fitting Connection Type: Press x Street
• Operating Pressure - Maximum: 200 psi
• Operating Temperature - Minimum: 0 Degrees F
• Operating Temperature - Maximum: 250 Degrees F
