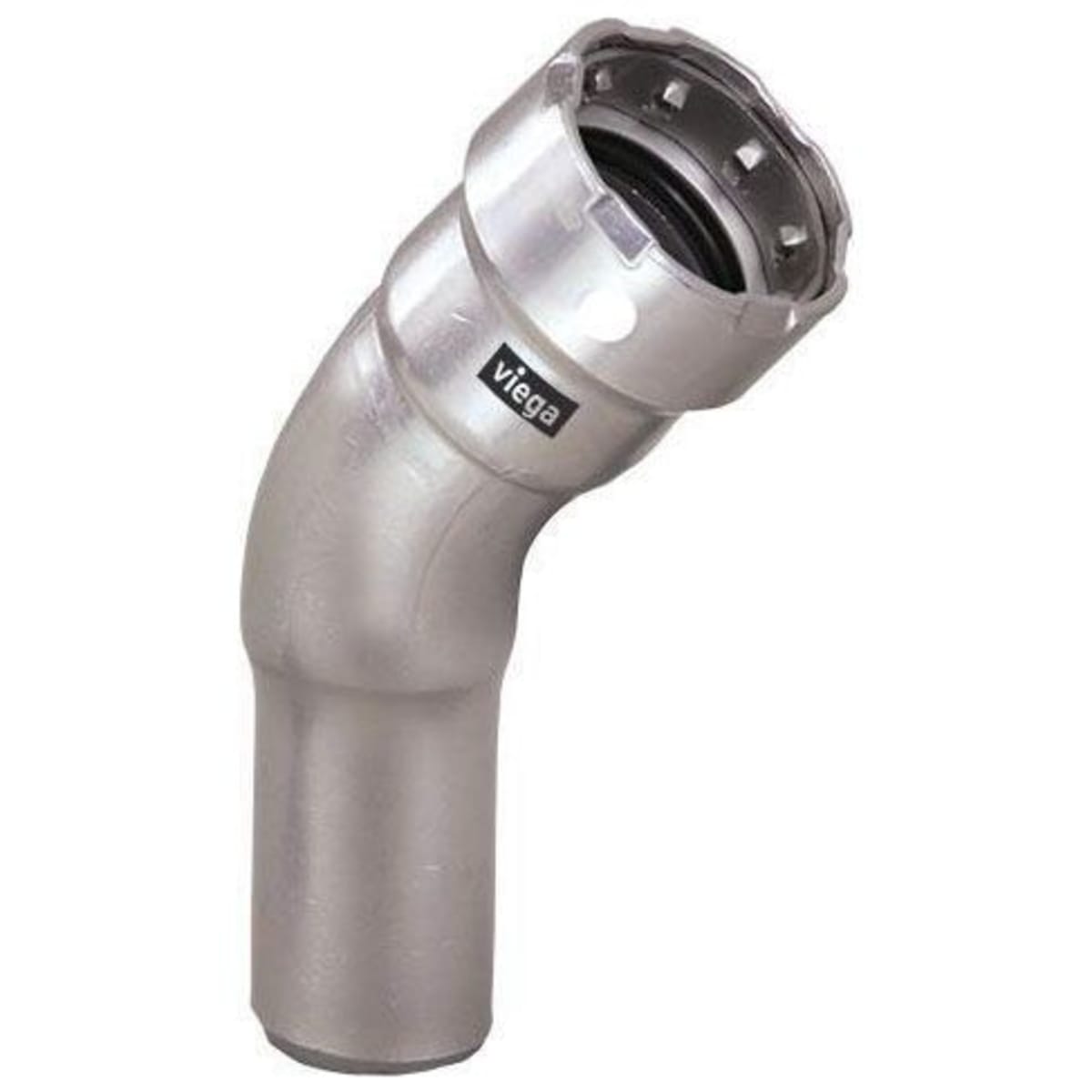

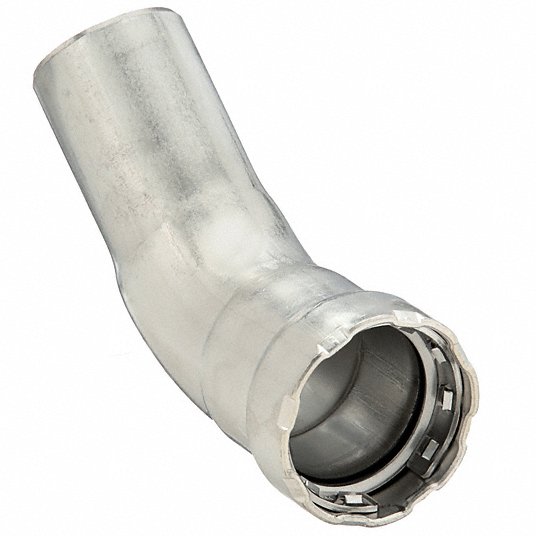

Viega 95080 MegaPress 45 Street Elbow 1/2 inches x 1/2 inches

Product Description

The VIEGA 95080 MegaPress 45 Street Elbow is a 1/2" x 1/2" fitting made of 304 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It features a versatile FKM sealing element for a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds.
• Minimizes system downtime by allowing for wet connections.
• No welding, grinding, or heavy equipment is needed.

Product Highlights

The MegaPress system eliminates threading and welding, offering fast and easy connections compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95080
• Country of Origin: Germany

Technical Specifications

• Material: 304 Stainless Steel
• Type: Elbow - 45° (Street)
• Size: 1/2"
• Connection_Type: Press x FTG
• Fitting/Connector Type: 45 deg Elbow
• End Style: Press x FTG
• Nominal Size: 1/2 in
• Angle: 45 deg
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Includes: FKM Sealing Element
• Warranty: Limited
• Domestic/Import: Import
• Item [Specifications]: 45 Degree Street Elbow
• Pipe Size [Specifications]: 1/2 in
• Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1/2 in x 1/2 in
• Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Application [Specifications]: Non-Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Elbow
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Stop and Shape [Specifications]: 45 Degrees Street Elbow Adapter
• Connection Type [Specifications]: Press-Fit x FTG
• O-Ring Material [Specifications]: FKM
• Copper Tube Size [Specifications]: 1/2 in
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in
• End Connection Type [Specifications]: Fitting, Press
• Pipe Size (Fittings) [Specifications]: 1/2" x 1/2"
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: 45 Degrees Street Elbow Adapter
• Fitting Connection Type [Specifications]: Press x Street
• Fitting Copper Tube Size [Specifications]: 1/2 in
• Fitting Side A Pipe Size [Specifications]: 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: 45 Degrees Street Elbow
• Pipe Fitting Connection Type [Specifications]: Press x Street
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: FTG
• Fitting Side B Copper Tube Size [Specifications]: 1/2 in
• Country of Origin (subject to change) [Specifications]: Germany
