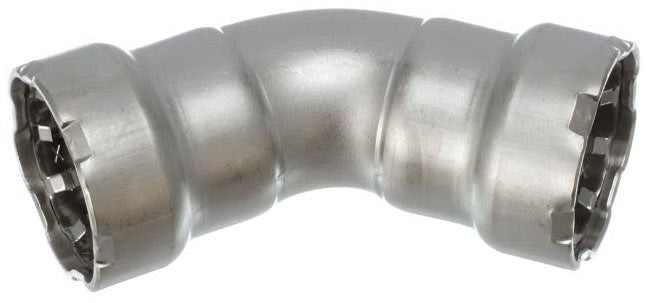

Viega 95075 Megapress 304SS Press X Press 45 Elbow 2 in

Product Description

The VIEGA 95075 is a 2-inch MegaPress 304 stainless steel press x press 45-degree elbow designed for use in press-fit piping systems. It connects two pipe segments at a 45-degree angle without soldering, threading, or welding. The fitting uses FKM sealing elements, which are compatible with a broad range of fluids and operating conditions. Manufactured from 304 stainless steel, it delivers corrosion resistance suitable for demanding mechanical and plumbing applications. Licensed plumbers and pipefitters install this fitting using a compatible press tool, making it a reliable choice for both new construction and retrofit work.

This elbow is intended for use in commercial and industrial piping systems where stainless steel construction and press-fit connections are specified. The MegaPress system is designed for larger-diameter pipe runs where speed of installation and joint integrity are critical. Typical applications include hydronic systems, process piping, and mechanical rooms requiring stainless steel fittings at 2-inch pipe size. The FKM sealing element supports use in a range of fluid service environments.

Key Features

• 304 stainless steel construction for corrosion resistance in demanding service conditions
• Press x press end connections eliminate the need for soldering, threading, or welding
• 45-degree elbow geometry for directional changes in piping runs
• FKM sealing element included for compatibility with a wide range of fluid types
• Part of the VIEGA MegaPress system for larger-diameter press-fit applications

Compatibility

Designed for use within the VIEGA MegaPress press-fit system at 2-inch pipe size. Requires a MegaPress-compatible press tool and jaw set for proper installation.

Installation Notes

Installation must be performed by a licensed plumber or pipefitter using a VIEGA MegaPress-compatible press tool. Shut off and depressurize the system completely before cutting into any existing piping. Verify that the pipe end is clean, properly deburred, and inserted to the full depth mark before pressing. Follow all applicable plumbing codes including IPC requirements for press-fit stainless steel fittings in the relevant jurisdiction.

Technical Specifications

• Fitting Size: 2 inches
• Elbow Angle: 45 degrees
• Connection Type: Press x Press
• Fitting Material: Stainless Steel 304
• Seal Material: FKM
• Press System: MegaPress

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95075
