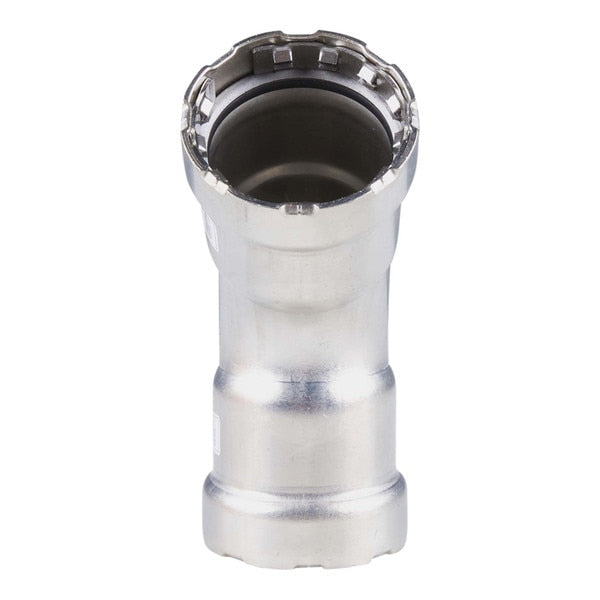

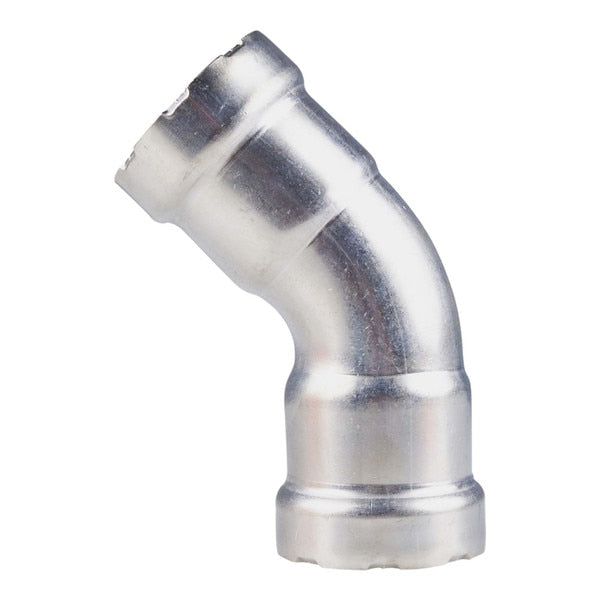

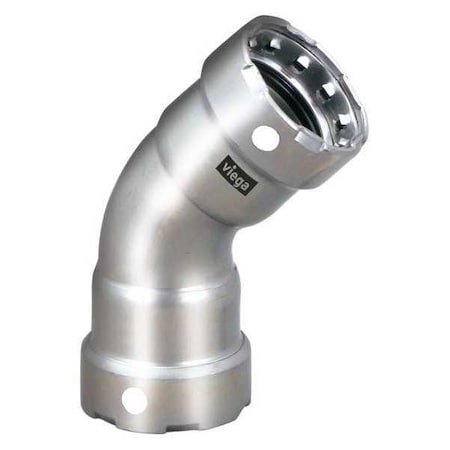

Viega 95070 MegaPress 45 Elbow 1-1/2 inches x 1-1/2 inches

Product Description

The VIEGA 95070 MegaPress 45 Elbow is a 1-1/2" x 1-1/2" elbow made of 304 stainless steel. Designed for commercial and industrial applications, this fitting utilizes an FKM sealing element to provide a reliable, leak-free connection. It is suitable for use with Schedule 10 to Schedule 40 stainless steel pipe.

• Made of 304 stainless steel
• Features press connection
• Maximum operating temperature of 250 Degrees F

Product Highlights

The Viega MegaPress system eliminates the need for welding, threading, or grooving. It makes secure connections in less than 7 seconds.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95070
• Country of Origin: Import

Technical Specifications

• Material: 304 stainless steel
• Size: 1-1/2" x 1-1/2"
• Nominal Size: 1-1/2 in
• Angle: 45 deg
• Domestic/Import: Import
• Temperature Rating: 0 to 250 deg F
• Includes: FKM Sealing Element
• Fitting/Connector Type: 45 deg Elbow
• End Style: Press
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item [Specifications]: 45 Degree Elbow
• Pipe Size [Specifications]: 1 1/2 in
• Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1-1/2 in x 1-1/2 in
• Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Application [Specifications]: Non-Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Elbow
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Stop and Shape [Specifications]: 45 Degrees Elbow
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: FKM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1 1/2 in
• End Connection Type [Specifications]: Press
• Pipe Size (Fittings) [Specifications]: 1-1/2" x 1-1/2"
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: 45 Degrees Elbow
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 1 1/2 in
• Fitting Side B Pipe Size [Specifications]: 1 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 1-1/2 in x 1-1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: 45 Degrees Elbow
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
