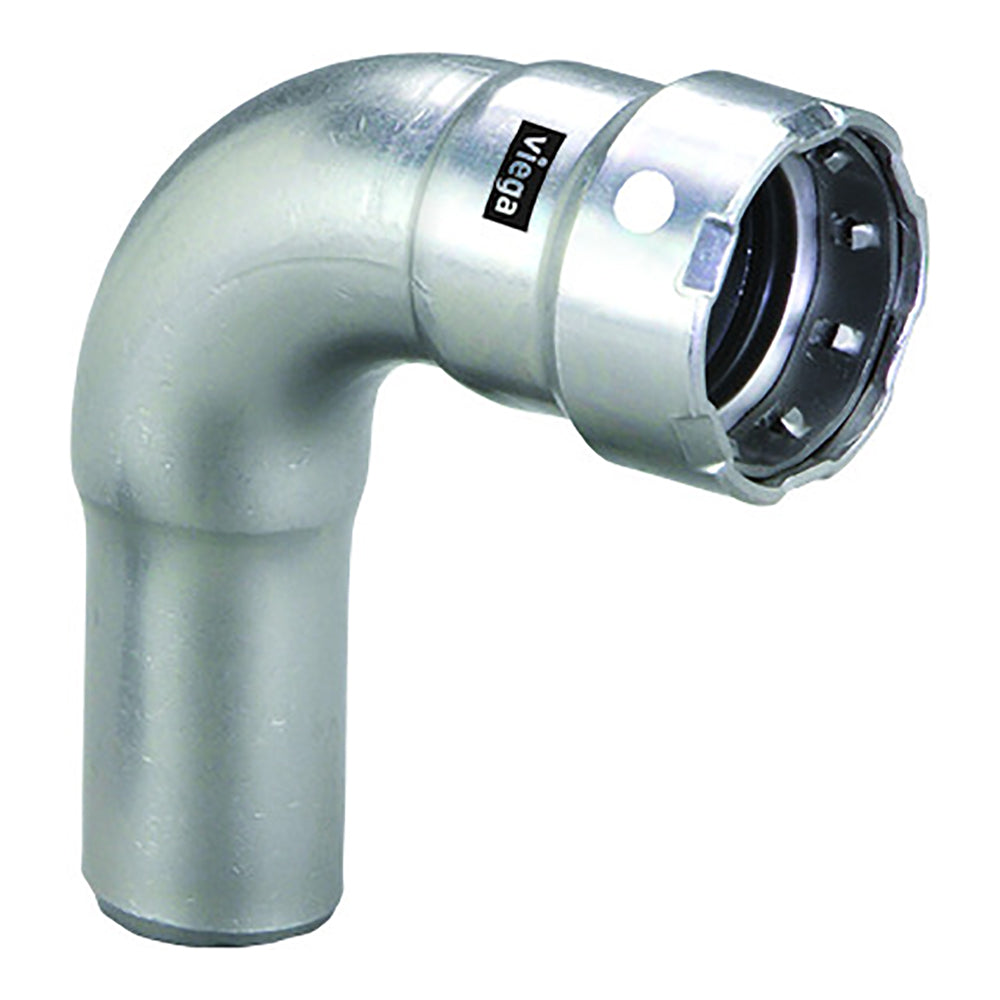

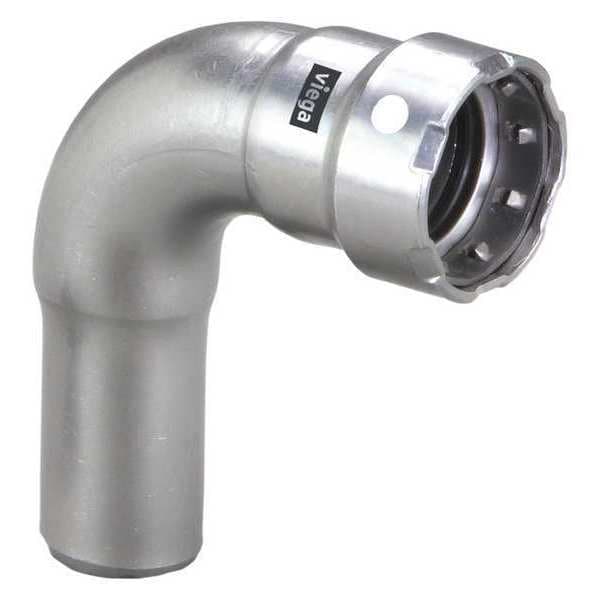

Viega 95050 MegaPress 90 street elbow 2 inches x 2 inches

Product Description

The VIEGA 95050 MegaPress 90 street elbow is a 2" x 2" fitting made from 304 stainless steel. Viega MegaPress Stainless 304 fittings are designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system suitable for commercial and industrial applications. It utilizes a versatile FKM sealing element for a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 seconds
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The MegaPress system eliminates the need for welding, grinding, or threading, offering a fast and easy connection.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95050
• Country of Origin: Import

Technical Specifications

• Angle: 90 deg
• End Style: Press x FTG
• Material: 304 Stainless Steel
• Domestic/Import: Import
• Includes: FKM Sealing Element
• Pressure Rating: 200 psi
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 2 in
• Temperature Rating: 0 to 250 deg F
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Size: 2"
• Connection Type: Press x Fitting
• Item: Crimp Elbow Fitting
• Tube Fitting Material: 304 Stainless Steel
• Specific Fitting Shape: 90 Degrees Street Elbow Adapter
• Fitting Connection Type: Press x Street
• Max. Pressure: 200 psi
• Temp. Range: 0 Degrees to 250 Degrees F
• Compliance: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Pipe Fitting Connection Type: Press x Street
• Specific Pipe Fitting Shape: 90 Degrees Street Elbow
• Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Fitting Shape: 90 Degrees Elbow
• Fitting Side A Connection Type: Press-Fit
• Fitting Material: Stainless Steel
• Maximum Operating Temperature: 250 Degrees F
• Material Grade: 304
• Maximum Operating Pressure: 200 psi
• O-Ring Material: FKM
• Fitting Side B Connection Type: FTG
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side 1 Connection Type: Press-fit
• Operating Temperature - Minimum: 0 Degrees F
• Operating Temperature - Maximum: 250 Degrees F
• Operating Pressure - Maximum: 200 psi
• For Media Type: Potable Water
• Connector Type: Adapter
• Components: FKM sealing elements

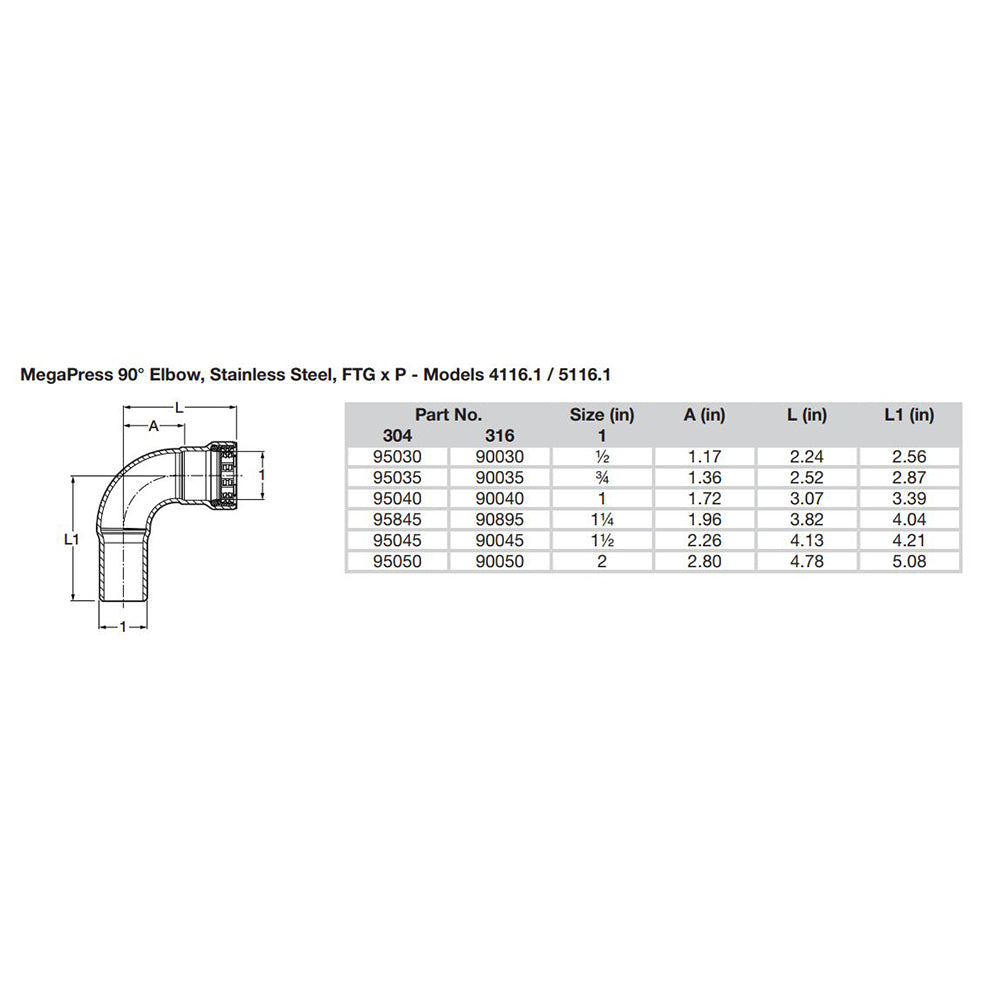

• L: 4.76 in
• L1: 5.08 in
• A: 2.80 in
• Weight: 2.063 lb
• OPV Part#: V304MPF90S20
• Viega Part#: 95050
• Category: STREET 90
• Construction: Stainless Steel
• WT: 2.15 lbs
• UPC: 691514950501
