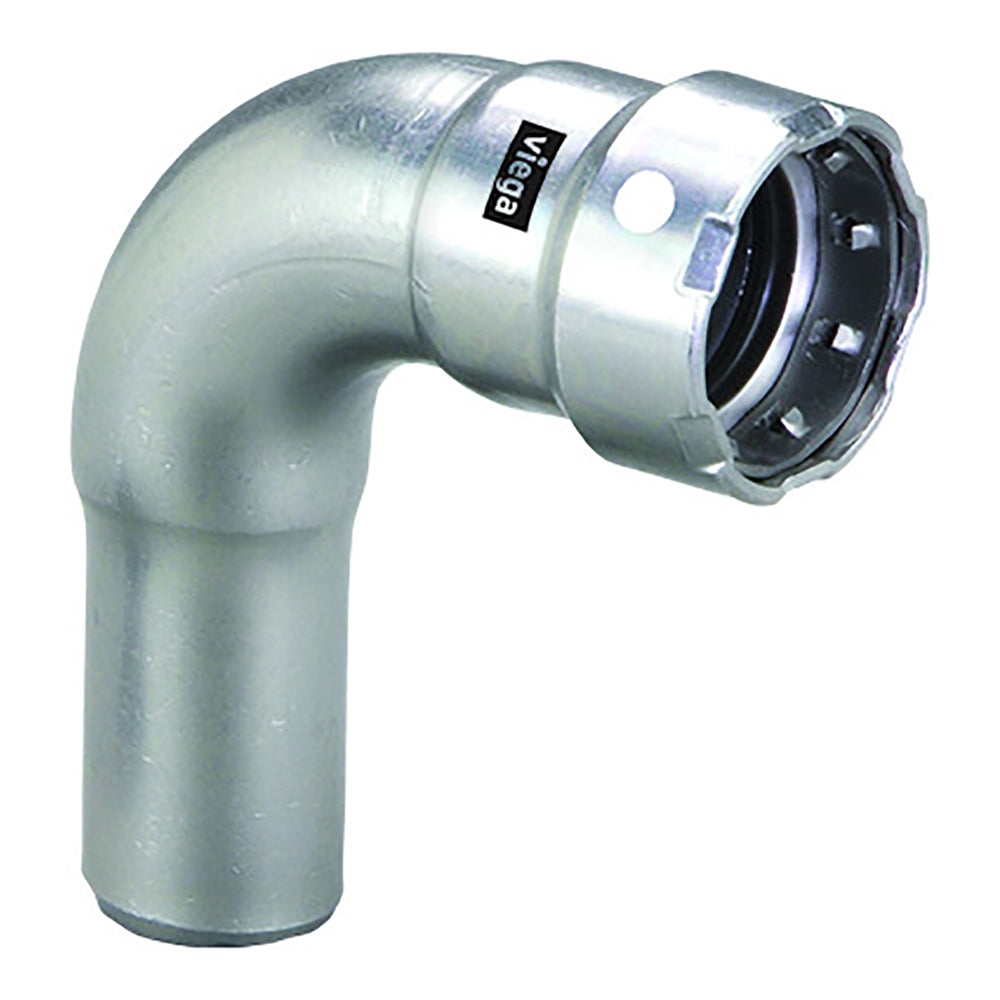

Viega 95035 MegaPress 90 Street Elbow 3/4 inches x 3/4 inches

Product Description

The VIEGA 95035 is a universal fitting used in plumbing and industrial applications. It features an elbow connector type. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. The fitting utilizes a versatile FKM sealing element to provide a reliable, leak-free connection.

• Stainless Steel Construction
• Elbow Connector Type
• Patented Viega Smart Connect makes secure connection in less than 7 seconds

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections, eliminating the need for welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 95035
• Country of Origin: Germany

Technical Specifications

• Material: 304 Stainless Steel
• Model Name: 95035
• Connector Type: Elbow
• Exterior Finish: Stainless Steel
• Number of Pieces: 1
• Primary Vendor Part Number: 95035
• Domestic/Import: Import
• End Style: Press x FTG
• Angle: 90 deg
• Nominal Size: 3/4 in
• Includes: FKM Sealing Element
• Temperature Rating: 0 to 250 deg F
• Fitting/Connector Type: 90 deg Elbow
• Pressure Rating: 200 psi
• Application: Commercial and Industrial
• Industry Standards: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31.1/B31.3/B31.9
• Item [Specifications]: 90 Degree Street Elbow
• Pipe Size [Specifications]: 3/4 in
• Standards [Specifications]: ASTM A312, CRN 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA/ASME B31, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 3/4 in x 3/4 in
• Compliance [Specifications]: CRN: 13492.5 A/B, IAPMO/UPC PS-117, ICC LC1002, TSSA-ASME B31
• Application [Specifications]: Non-Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Elbow
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 304
• Stop and Shape [Specifications]: 90 Degrees Street Elbow Adapter
• Connection Type [Specifications]: Press-Fit x FTG
• O-Ring Material [Specifications]: FKM
• Copper Tube Size [Specifications]: 3/4 in
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 3/4 in
• End Connection Type [Specifications]: Fitting, Press
• Pipe Size (Fittings) [Specifications]: 3/4" x 3/4"
• Fitting Body Material [Specifications]: 304 Stainless Steel
• Tube Fitting Material [Specifications]: 304 Stainless Steel
• Specific Fitting Shape [Specifications]: 90 Degrees Street Elbow Adapter
• Fitting Connection Type [Specifications]: Press x Street
• Fitting Copper Tube Size [Specifications]: 3/4 in
• Fitting Side A Pipe Size [Specifications]: 3/4 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: 90 Degrees Street Elbow
• Pipe Fitting Connection Type [Specifications]: Press x Street
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: FTG
• Fitting Side B Copper Tube Size [Specifications]: 3/4 in
• Country of Origin (subject to change) [Specifications]: Germany
• Model: 4116.1
• Construction: Stainless Steel
• Manufacturer Part Number: 95035
• Manufacturer: VIEGA MEGAPRESS
• Model/Part#: 95035
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FTG
• Fitting Side B Copper Tube Size: 3/4 in
• Fitting Material: Stainless Steel
• Fitting Side A Pipe Size: 3/4 in
• Material Grade: 304
• O-Ring Material: FKM
• Specific Fitting Shape: 90 Degrees Street Elbow Adapter
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• UPC: 691514950358
