Viega 94541 PEX Press Ball Valve, Lead-Free, Press x Press, 3/4 inches x 3/4 inches

Product Description

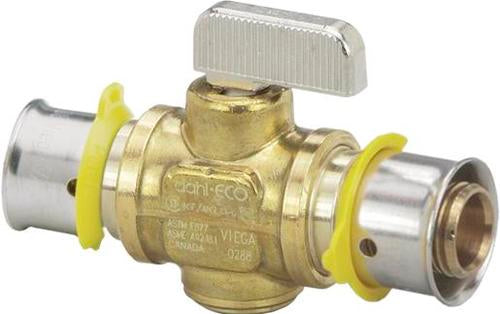

The VIEGA 94541 PEX Press Ball Valve is a lead-free valve with press x press connections and a size of 3/4" x 3/4". It is designed for use with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX. This ball valve is suitable for hot and cold potable water, rainwater/gray water, hydronic heating and cooling, and fire sprinkler systems.

• For use with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX
• Brass construction
• Press connection

Product Highlights

Lead-free PEX press ball valve with press connections, ideal for various water and heating systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 94541

Technical Specifications

• Product Type: Ball Valve
• Brand: Viega
• Nominal Size: 3/4 Inch x 3/4 Inch
• End Connection: PureFlow Press x PureFlow Press
• End to End Distance: 2.72 Inch
• Ball Material: Brass
• Body Material: Brass
• Stem Material: Nickel Plated Brass
• Seat Material: PTFE
• Seal Material: EPDM/FKM
• Handle Material: Nickel Plated Zinc
• Temperature Rating: 0 to 180 deg F
• Pressure Rating: 160 psi
• Application: Hot and Cold Potable Water, Rainwater/Gray Water, Hydronic Heating and Cooling, Fire Sprinkler
• Applicable Standard: UL/ANSI 263/1821, CAN/ULC S101/S102.2, CSA B137.5, CSA (Canada and US), CPC, NSPC, UMC, UPC, IMC, IPC, IRC, NBCC, NPCC, ICC, IAPMO, HUD MR1276, NFPA 13D, NSF/ANSI 14/61/359/372
• Lead-Free: True
• End Style: Press
• Port Type: Full
• Series: PureFlow®
• Softgoods Material: EPDM/FKM
• Trim Material: Brass Stem and PTFE Seat
