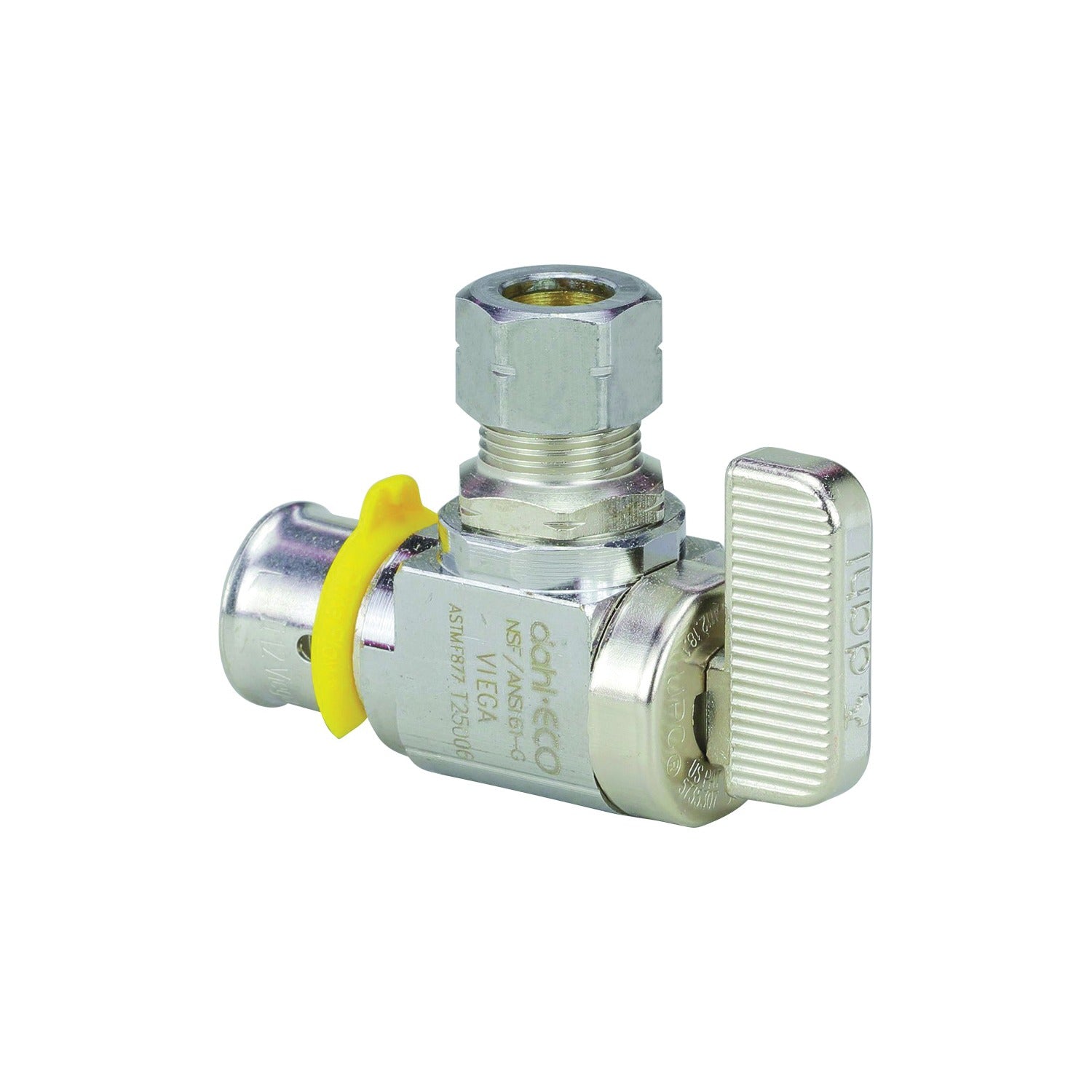

Viega 93511 Angle Stop Valve 1/2x1/4 in Press X Cts 160 Psi

Product Description

The VIEGA 93511 is a press-connection angle stop valve designed for shutoff service at fixture supply points in residential and light commercial plumbing systems. It features a 1/2-inch Press inlet and a 1/4-inch CTS outlet, a brass body with a polished chrome finish, and a 160 psi pressure rating. The press-end connection eliminates the need for soldering, allowing for faster, flame-free installation. Licensed plumbers install this valve at toilet, faucet, and appliance supply lines where a reliable, compact shutoff is required.

This angle stop valve is suited for under-sink and in-wall applications where space is limited and a clean aesthetic is needed. The polished chrome finish makes it appropriate for exposed installations in bathrooms, kitchens, and utility spaces. The press-by-CTS configuration accommodates copper tube stub-outs and integrates with PureFlow press-fit systems, reducing installation time compared to sweat or compression fittings.

Key Features

• Press x CTS end style for flame-free, tool-pressed connections
• 160 psi pressure rating for standard residential and light commercial service
• Brass body construction for corrosion resistance and durability
• Polished chrome finish suitable for exposed fixture supply installations
• 1/2-inch inlet x 1/4-inch outlet nominal sizing for standard fixture supply applications

Compatibility

Designed as an OEM-style replacement or new-installation angle stop valve for residential and light commercial plumbing systems with press-fit and CTS copper tube supply configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines. Shut off the main water supply and depressurize the line before installation. The press connection requires a manufacturer-approved press tool and correct jaws sized for the fitting diameter. Do not attempt to solder or modify the press-end fitting.

Technical Specifications

• Inlet Size: 1/2 inch
• Outlet Size: 1/4 inch
• End Style: Press x CTS
• Pressure Rating: 160 psi
• Body Material: Brass
• Finish: Polished Chrome

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 93511
