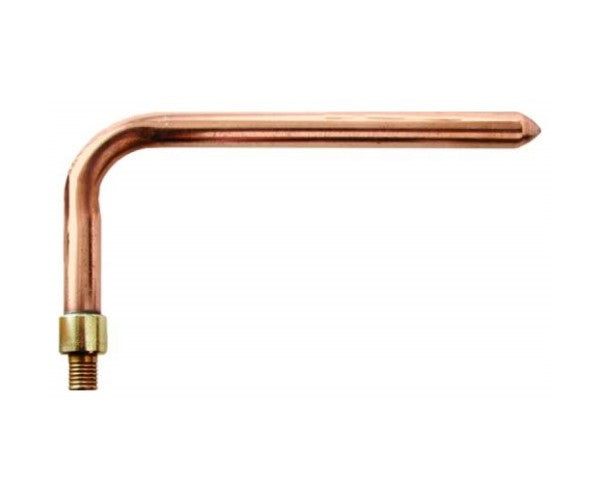

Viega 92420 Viega PureFlow Model 2820.1ZL Stub-Out Elbow, 1/2 in, Press x Crimp, Copper

Product Description

The Viega 92420 PureFlow Model 2820.1ZL Stub-Out Elbow is designed for PEX piping connections. It features a press x crimp design, making it efficient for installation in various plumbing systems. Made from copper, this elbow fitting ensures reliable performance in residential and commercial applications.

• Press x crimp design for secure connections
• Factory-assembled with stainless steel sleeves
• Compliance with multiple industry standards

Product Highlights

The Viega PureFlow fitting simplifies PEX installations and minimizes errors during assembly.

Product Information

Standard Information

• Brand: Viega
• Part Number: R2566

Technical Specifications

• Material: Copper
• End Style: Press x Crimp
• Fitting Type: Elbow
• Nominal Size: 1/2 in
• Pack Quantity: 25 pk
• Pressure Rating: 160 psi
• Temperature Rating: 180 deg F
• Country of Origin: US
• Manufacturing Standards: ANSI/NSF 61-G, ASTM F876/F877, IAPMO Certified, ICC ES-PMG 1038/1015, NFPA 13D, NSF 14/16, UL 1821
