Product Description

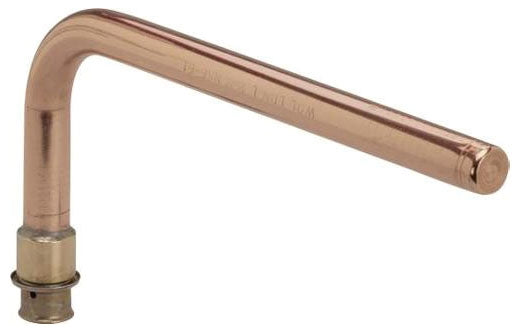

The Viega 92406 is a PEX press copper stub-out elbow fitting. It connects a three-eighths inch tube to a one-half inch fitting with a length of three and one-half inches by eight inches. This fitting is designed for PEX press to male soldered connection, ensuring reliable and enduring plumbing solutions.
- Lead-free design for safer water delivery.
- Pressure rated at one hundred PSI.
- Compatible with Viega PureFlow PEX systems.
Product Highlights
This elbow fitting is suitable for a variety of applications including hot and cold potable water systems, rainwater, gray water systems, as well as for hydronic heating and cooling and fire sprinkler systems.
Product Information
Standard Information
Technical Specifications
-
Type: Street
-
Length: Three and one-half inches by eight inches
-
End Type: PEX press x male soldered
-
Material: ASTM F876/877 brazed copper
-
Pressure Rating: One hundred PSI
-
Temperature Rating: One hundred eighty degrees Fahrenheit (potable), two hundred degrees Fahrenheit (hydronic)
-
Inclusions/Features: Compatible with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX
-
Applicable Standards: UL 263/1821, NSF-pw 372, ICC-ES PMG 1038/1015, HUD MR-1276, CSA B137.5, CAN/ULC S101 / S102.2, ASTM F3348/F3347/E84
-
Height: Four point twenty-eight inches
-
Angle: Ninety degrees
