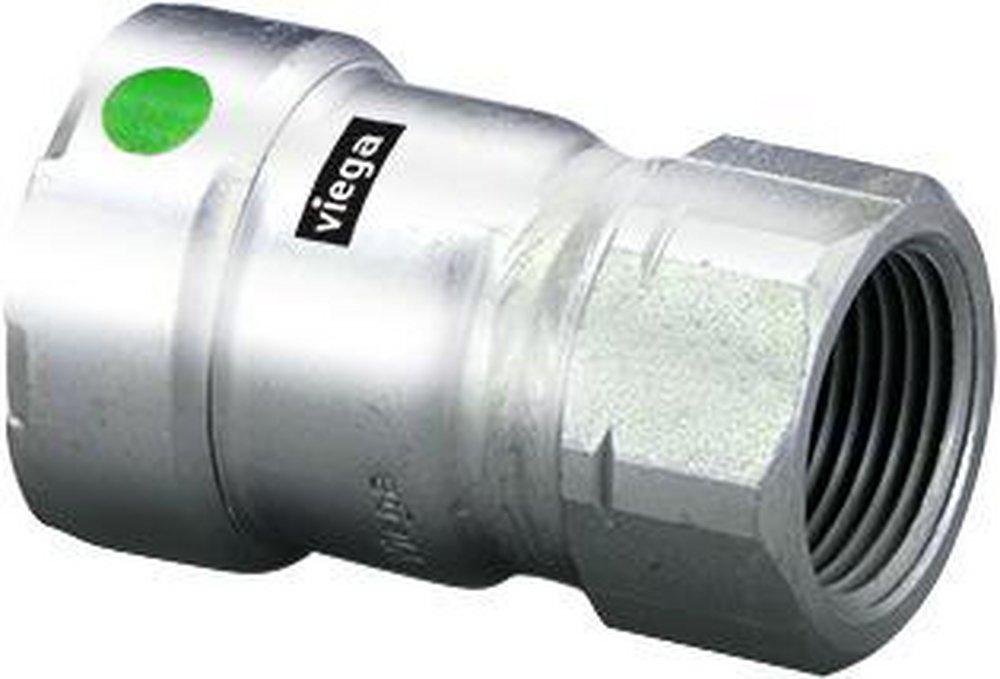

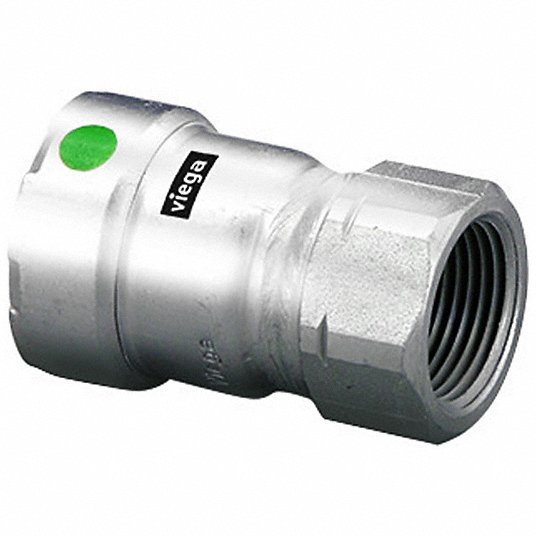

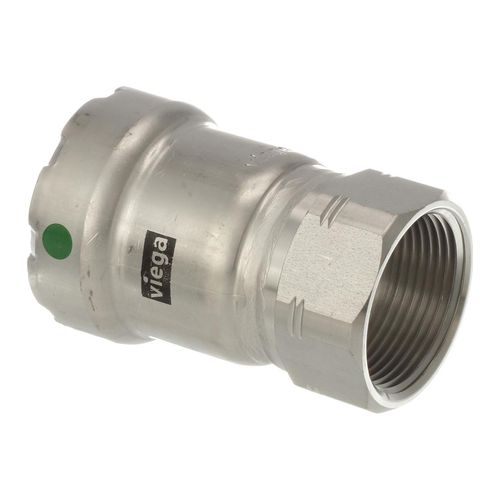

Viega 90885 MegaPress Adapter 1-1/4 in

Product Description

The VIEGA 90885 MegaPress 316 Female Adapter, sized at 1-1/4", is designed for use with standard IPS ASTM A312 stainless steel pipe, making it suitable for industrial applications. It is compatible with SCH 5 to SCH 40/STD stainless steel pipe. The MegaPress system can withstand harsh environments when transporting various fluids or gases.

• Press connection, female pipe thread
• Smart Connect feature
• 316 stainless carries an NSF 61 potable water rating

Product Highlights

The VIEGA MegaPress adapter eliminates threading and welding, and is compatible with existing press tools.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90885
• Country of Origin: Germany

Technical Specifications

• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FPT
• Fitting Material: 316 Stainless Steel
• Fitting Side A Pipe Size: 1 1/4 in
• Fitting Side B Pipe Size: 1 1/4 in
• Material Grade: 316
• O-Ring Material: EPDM
• Specific Fitting Shape: Adapter
• Fitting Side A Tube Outer Diameter: 1 1/4 in
• Overall Length: 3 9/32 in
• Application: Industrial
• End Connection 1: Press
• End Connection 2: FPT
• End Connections: Press x FPT
• Fitting Type: Adapter
• Material: Stainless Steel
• Material Type: 316 SS
• Weight: 0.688 lb
• Brand: VIEGA
• Compatible Tube Hardness: Schedule 5 to Schedule 40
• Compatible Tool Brand: Milwaukee; Ridgid
• Fitting Shape: Straight
• Temperature Range: 0 °F to 250 °F
• Connector Type: Adapter
• Compatible Tube Material: Stainless Steel
• Fitting Side 1 Connection Type: Press-fit
• Maximum Operating Pressure: 200 psi
• Dimensions: 3.27 in L
• End Style: Press x FNPT
• Nominal Size: 1-1/4 In
• Pressure Rating: 200 psi
• Series: 5112
• Temperature Rating: 0 to 250 deg F
• Size 1: 1 1/4
• Size 2: 1 1/4
• L: 3.27 in
• A: 0.73 in
• WS: 1.75 in
• Lead Free: Yes
• Size: 1-1/4"
• MPN: 90885
