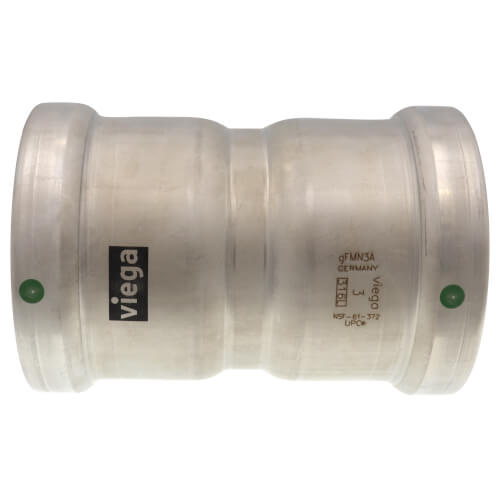

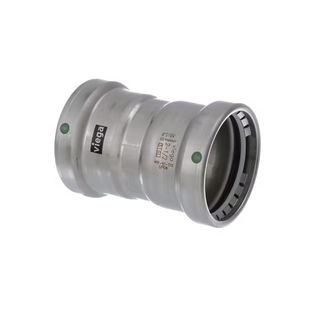

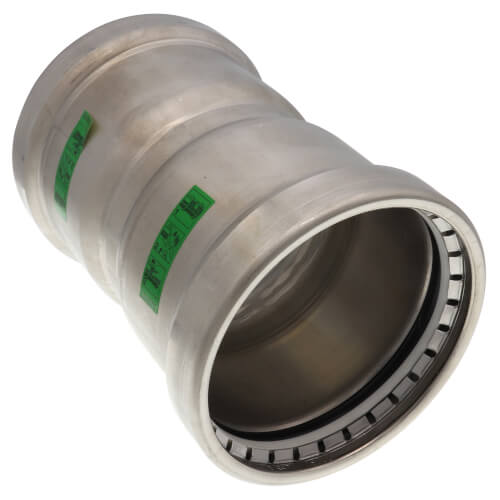

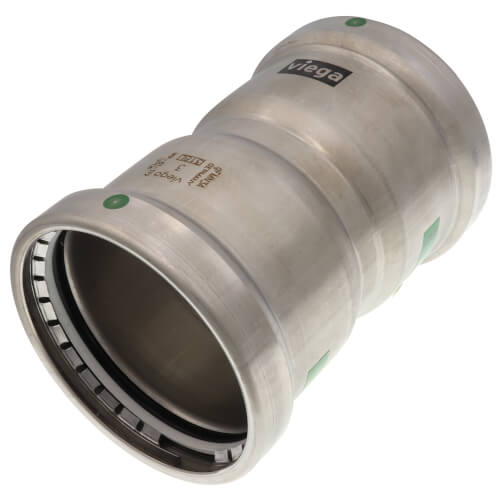

Viega 90650 MegaPress Coupling, 316 stainless steel, 3 inches x 3 inches

Product Description

The VIEGA 90650 MegaPress coupling is constructed from 316 stainless steel and designed for use with standard IPS ASTM A312 stainless steel pipe. It utilizes MegaPress technology to create secure press connections. This coupling is suitable for industrial applications and can be used with SCH 5 to SCH 40 stainless steel pipe.

• MegaPress technology
• 316 stainless steel construction
• Press connection

Product Highlights

The VIEGA 90650 coupling features 316 stainless steel and press connection for secure and efficient joining of stainless steel pipes.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90650

Technical Specifications

• MPN: 90650
• Brand: VIEGA
• Material: 316 Stainless Steel
• Size: 3" x 3"
• Type: Coupling
• Connection Type: Press
• End Style: Press
• Fitting/Connector Type: Coupling
• Nominal Size: 3 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Model: 5115XL
• Application: For use with Sch. 5 to Sch. 40 stainless steel pipe
• Sealing Elements: EPDM sealing elements, grip rings, separator rings
• Connection Size 1: 3 in
• Connection Size 2: 3 in
• Connection Type 1: Press
• Connection Type 2: Press
• Fitting Type: Coupling
• For Use With: Viega MegaPress® SCH 10 to SCH 40 Stainless Tubings
• Material Construction: Stainless Steel
